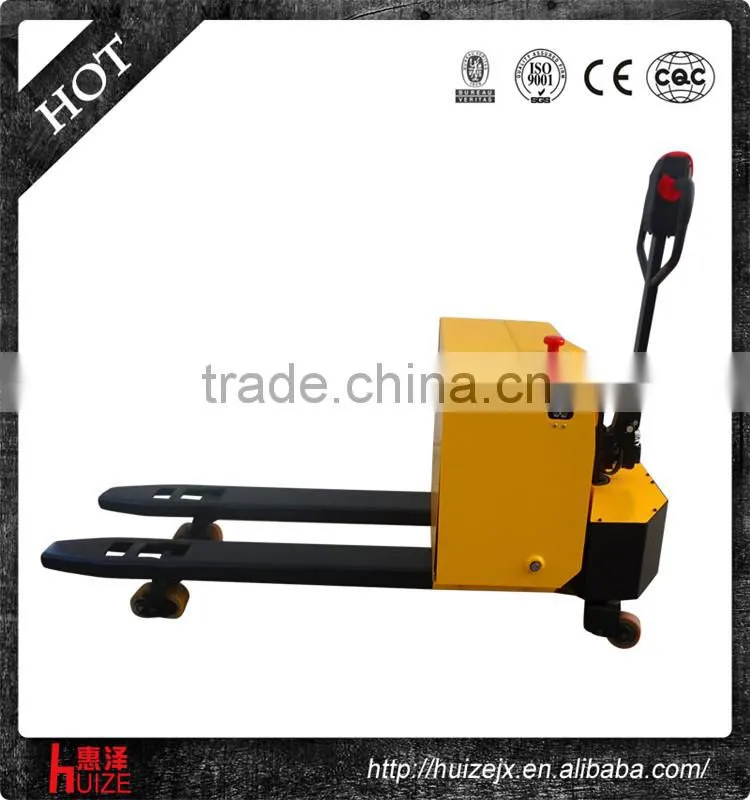

Help Center210AH 3 Ton Semi Electric Pallet Truck
Related Products
-
3 Ton Single-faced Pallet Pallet JackNegotiableMOQ: 1 Set -
3 Ton Single Cylinder Pallet TruckNegotiableMOQ: 1 Set
-
3 Ton Reel Handling Powered Pallet TruckNegotiableMOQ: 1 Set
-
3 Ton Walking Operation Electric Pallet TruckUS$ 3,000 - 4,200MOQ: 1 Set
-
3 Ton Foot Operated Pallet JackNegotiableMOQ: 1 Set
3 Ton Semi Electric Pallet Truck
We are 9 years' pallet truck manufacturer

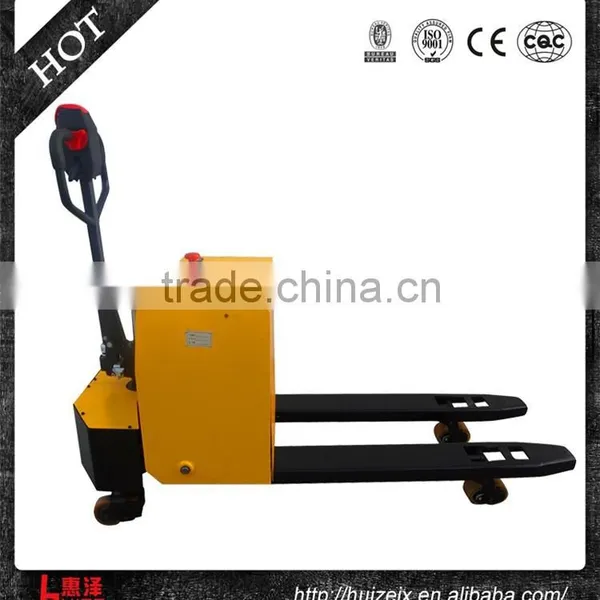

Product Pictures
Basic Technical Parameters
| Loaded Capacity | Q | 3 Ton |
| Load Center | C | 600mm |
| Fork Size | b5 *l | 550mm*1150mm |
| Wheel Type | Nylon Wheel | |
| Battery Capacity | 210AH | |
| Driving Control Type | Series Excitation |
More Parameters
| Feature | ||
| Power | Battery | |
| Manipulation | Manual Hydraulic | |
| Hydrocylinder | Diecast | |
| Surface Treatment | Baked Paint | |
| Wheel | ||
| Wheel Type | Nylon Wheel | |
| Driving wheel No.& Size | 1pcs, φ250mm*80mm | |
| Balance wheel No.& Size | 2 pcs, φ100mm*40mm | |
| Load Wheel No. & Size | 4 pcs, Φ80mm*70mm | |
| Size | ||
| Max Lifting Height | h3 | 115mm |
| Min Lowered Height | h2 | 155mm |
| Overall Length | L1 | 1850mm |
| Overall Width | b1 | 700mm |
| Overall Height | h1 | 1295mm |
| Aisle Width(with 1000*1200mm pallet) | 1100mm | |
| Aisle Width(with 800×1200mm pallet) | 800mm | |
| Min Aisle Width for Turning Around | 2200mm | |
| Turning Radius | RWa | 1900mm |
| Performance | ||
| Traveling Speed(with/without load) | 4/6 km/h | |
| Lifting Speed(with/without load) | 7/7.5 mm/hydaulic | |
| Lowering Speed(with/without load) | 50/45 mm/s | |
| Gradient(with/without load) | 5/8 % | |
| Braking Length(with/without load) | 500/350 mm | |
Our Service
1.For end users,we can supply operation video for maintenance, and supply spare parts for free within a year.
2. For distributors, we will build a service center in your country to supply service for you.
Company Introduction
Huize Machine Co.,Ltd Specilizes in Electric Pallet Truck,Electric Stacker, Electric Counter Balance Stacker,Electric Oil Drum Truck, Electric Paper Roll Truck,Electric Crane, Electric Lift Platform and Aerial Order Picker,etc.
We were established in 2006 year, and located in Sancheng Industrial Zone,Jiangyan District,Taizhou City,Jiangsu Province,China. It is about 2.5 hours driving to Shanghai Airport, the transportation is very convenient.
Since our foundation in 2006, we have always insisted on quality is our life,so we operate and inspect every production process strictly to make sure all the products out of our factory 100% qualified, and also every year,our R&D team regularly develop 4-6 new models forklifts in light of market demands
Electric Pallet Truck, Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck , Electric Pallet Truck
Now we have exported our products to India, Pakistan, Vietam,Singapore, Australia,Saudi Arabia, USA,Canada,etc over 30 countries, and we have very high reputation among all our customers.
Strict Quality Control: 48 hours 100% inpsection of electronic parts test,100% Quality Control before delivery,includin Noisy,Driving,Lifting,and Welding Inspection
Why Choose Huize?
1. Full range products, High-Quality and economic models are both available from Huize,we have resources to help our partners to open the market easily
2. Huize has a whole set of failure predication,repair,maintenance data which will reduce 60% of the dealer's after-sale service cost.
3. Fast. Fast delivery time, Fast service and communication.
Within one hour Huize will respond and within 3 hours we will offer the solution
Less than 15 days standard delivery time for electric products
4. We don't ask more though we do much better! We offer reasonable price level!
5. We are honest and straightforward at work because that is the way we are in our homes, we keep loyal to our partnerrs
FAQ
1. Q: What is your minimum order quantity?
A: One Set
2. Q:What certificates do you have?
A:We are certificated by ISO9001,CE,SGS and BV to make sure our quality excellent.
3. Q: How to guarantee products quality?
A: First, we have our own QC to inspect and check the quality in each process,Second, we welcome your QC to our factory to inspect the goods, Third, we accept the third party inspection.
4. Q:Why choose Huize factory?
A:1.Supply required products with competitive price
2.Good after sales service
3.Weclome customers visit our factory to inspect and experience products
4.Supply our professional suggestion to help customers sell and use our products better
