350kgs,1.6m Pump Forklift Drum Lifter
- shanghai
- T/T L/C D/P D/A PayPal
You May Like
-
350kgs,1.6m Pump Electric Fork Oil Drum Truck
-
350kgs,1.6m CE Hydraulic Oil Drum Handling Equipment
-
350kgs,1.6m Material Handling Weighing Electric Lifter Drum Truck
-
350KG 2500MM Pedestrian Powered Drum Lifter for Forklift
-
350KG 1600MM Efficient Controls Drum Dumping Equipment
-
350KG 1600MM Trolley Jack Drum Tilter Equipment
Product Details
| Brand Name | HUIZE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

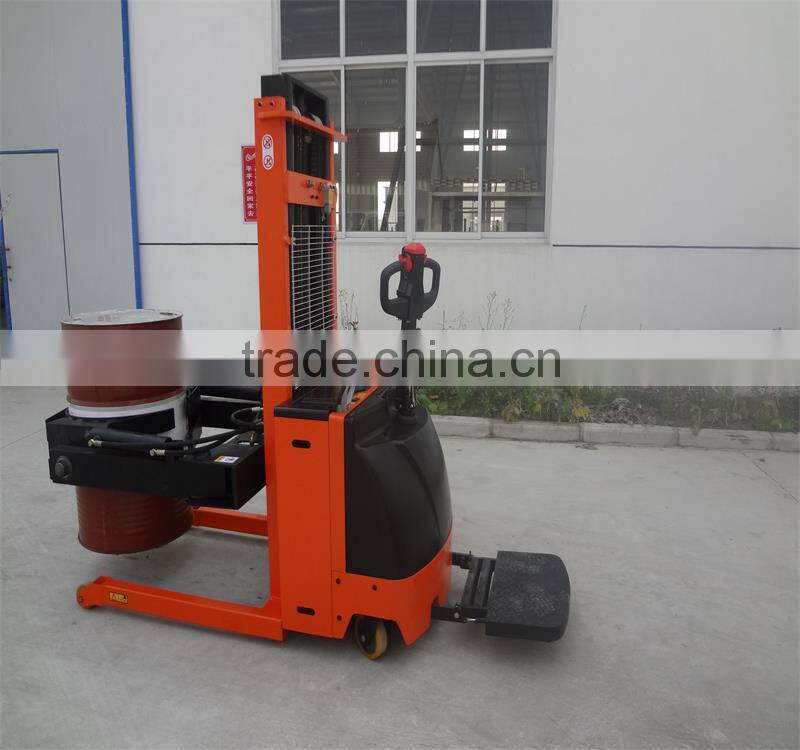

350kgs,1.6m pump forklift drum lifter
Product description 350kgs,1.6m pump forklift drum lifter
1. imported control system
2. Be applicable to all kinds of metal, plastic barrels, opening barrels, small barrels
3. Can clip,lift,flip and revolve 180 degree to pour material.
1 | Features | ||
1.1 | Name |
| 350kgs,1.6m pump forklift drum lifter |
1.2 | Model |
| COT -500 |
1.3 | Mast series |
| Single |
1.4 | Dynamic form |
| Battery |
1.6 | Braking form |
| Electromagnetic brake |
1.7 | Load capacity | Q(Kg) | 350 |
1.8 | Hydraulic cylinder |
| Single |
1.9 | Color |
| Red yellow blue gray |
4 | Size | ||
4.1 | Rising height | mm | 2500 |
4.2 | Drum clip minimum height | mm | 540 |
4.3 | Overall length | mm | 2000 |
4.4 | Overall width | mm | 1000 |
4.5 | Overall height | mm | 2000 |
4.6 | Front wheel size | mm | Φ80*70 |
4.7 | Driving wheel size | mm | φ250*80 |
4.8 | Balance wheel size | mm | φ125*50 |
4.9 | Drum size | φf | φ580*900 |
4.10 | Drums flip angle |
| 360° |
4.11 | Channel width | Ast(mm) | 1100 |
4.12 | Minimum channel width truck turning around | Ast(mm) | 2500 |
4.13 | Radius of turning circle | Wa(mm) | 2100 |
5 | Performance | ||
5.1 | Travel speed(loaded/unloaded) | km/h | 4/6 |
5.2 | Rising speed(loaded/unloaded) | mm/s | 90/105 |
5.3 | Falling speed(loaded/unloaded) | mm/s | 110/105 |
5.4 | Climbing gradient(loaded/unloaded) | % | 5/8 |
5.5 | Braking length(loaded/unloaded) | mm | 500/350 |
tacker
Certifications
350kgs,1.6m pump forklift drum lifter
1.6m new Hydraulic electric pallet s
After-sales service 350kgs,1.6m pump forklift drum lifter
1.End users:We can provide video to tell you how to maintain and repair;
Provide accessories for free in one year;
One year later ,provide these accessories at cost and charge
express fee.
2.Retailer:To provide perfect after- sales service ,our company send resident people to retailer’s country .
F.A.Q 350kgs,1.6m pump forklift drum lifter
A: Our factory will offer customers 3% vulnerable parts in free .
2.Q:Does your factory accept customizing?
A:Yes,pls send your reguirements to sales3(@).
3.Q: Does your factory accept Neutral Packing and Designed Brand?
A:Yes,we accept.
4:Q:Which is the nearest airport to your factory?
A:Shanghai.We can take you at the airport and provide accommodation.
5.A:Does your factory provide favorable?
Q:Yes,Our factory will offer customers 3% free vulnerable parts .
