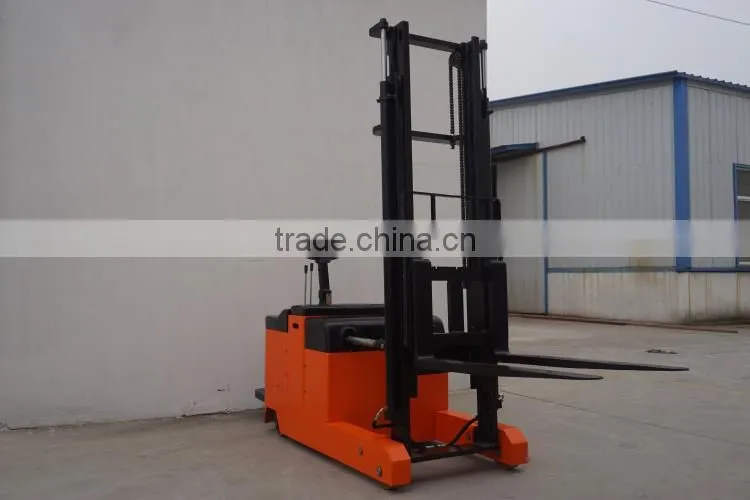

1 ton 2M lifting colour customized balanced forklift electric pallet stacker
pallet truck|stacker|forklift
Main technical specifiations
1 |
characteristic |
|||
1.1 |
Name |
|
Counterbalanced electric stacker |
|
2.1 |
Model |
|
HZCPD1520-07 |
|
3.1 |
Mast steps |
|
Double |
|
4.1 |
Dynamic unit |
|
battery |
|
5.1 |
Operation mode |
|
Standing |
|
6.1 |
Rated capacity |
Q(Kg) |
1000 |
|
7.1 |
Load center |
C(mm) |
550 |
|
8.1 |
hydraulic cylinder |
|
Double |
|
9.1 |
Wheel |
|
PU |
|
4 |
Size |
|
|
|
14.4 |
Lifting height |
h(mm) |
2000 |
|
15.4 |
Fork minimum height |
h(mm) |
70 |
|
16.4 |
overall height when fork up to maximum height |
h(mm) |
2500 |
|
17.4 |
Overall length |
L(mm) |
2400 |
|
18.4 |
Overall width |
b(mm) |
850 |
|
19.4 |
Fork size |
l/e/s(mm) |
1070*100*38 |
|
20.4 |
Fork individual width |
b(mm) |
600 |
|
21.4 |
Overall height |
h(mm) |
1530 |
|
22.4 |
Forwards inclination |
β |
3° |
|
23.4 |
posterior slope angle |
α |
5° |
|
27.4 |
channel width |
Ast(mm) |
900 |
|
28.4 |
Vehicle turn around need minimum channel width |
Ast(mm) |
3000 |
|
29.4 |
Turning radius |
Wa(mm) |
2600 |
|
6 |
Driving |
|
|
|
35.6 |
Driving motor |
Kw |
1.5 |
|
36.6 |
Lifting motor |
Kw |
2.5 |
|
37.6 |
Battery |
V/Ah |
24/210 |
|
40.6 |
Charger |
|
24V30A |
|
41.6 |
Electric control |
|
American Curtis |
|
Certification
FAQ
1)Q:What is the minimum order quantity?
A:Taizhou Huize Machine Co.,Ltd specialized in all kinds of pallet truck,stacker,forklift,cran,boom lift,
platform and drum truck.The minimum order is 1 pc.
2)Q:What is the production and delivery time?
A:25 days after receiving the first T/T/1*40''HQ.
3)Q:Can we use our own shipping agent ?
A:Yes,all customers can use their own shippng agent,but we advice you use our factory shipping agent.
Because we have been cooperated with the shipping company for 8 years,the cost is lower .
4) Q:Can we mix the 20ft container ?
A: Yes,you can mix it,you can mix less than 3 models in a 20FT container and 4 models in a 40FT or 40
HQ container.
We also produce other kinds of stacker, such as
"reach stacker" "electric stacker"
