New Model 1 Ton 1.6M Lifting Counter Balanced Electric Stacker

FOB Price

US$ 5,000 - 5,985 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	HZ	Model Number	TB15
Dimension(LWH)	17507802040	Certification	CE ISO9001 BV
Warranty	12 Months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

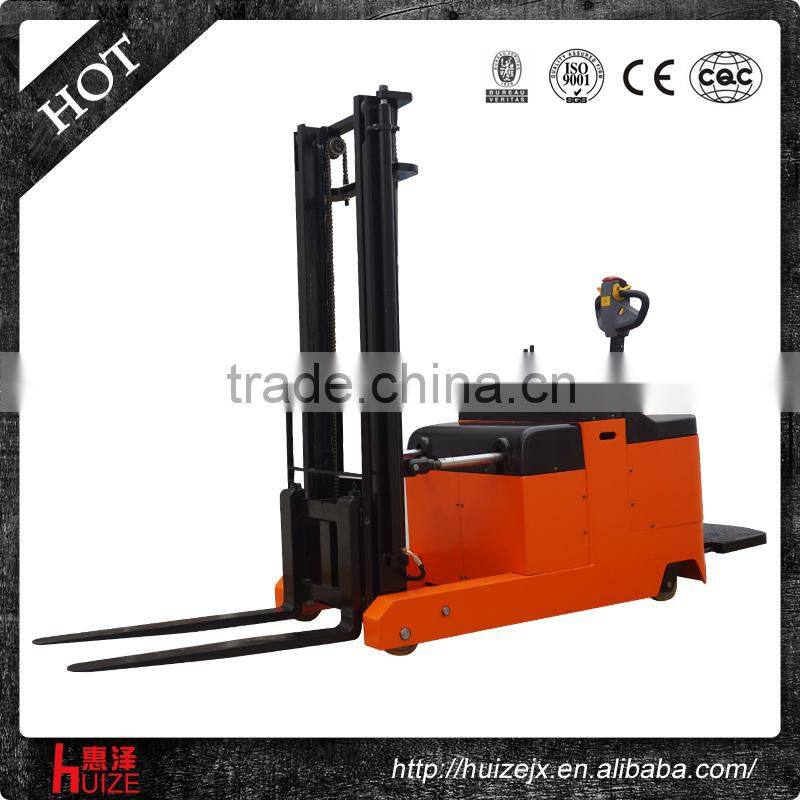

New model 1 ton 1.6M lifting counter balanced electric stacker

pallet truck|stacker|forklift|

Main technical specifiations

1	characteristic
1.1	Name		Balanced electric stacker
2.1	Model		HZCPD1016-01
3.1	Mast steps		Single
4.1	Dynamic unit		battery
5.1	Operation mode		Standing
6.1	Rated capacity	Q(Kg)	1000
7.1	Load center	C(mm)	550
8.1	Hydraulic cylinder		Single
9.1	Wheel		PU
4	Size
14.4	Lifting height	h(mm)	1600
15.4	Fork minimum height	h(mm)	70
16.4	Overall length	L(mm)	2400
17.4	Overall width	b(mm)	850
18.4	Fork size	l/e/s(mm)	107010038
19.4	Fork individual width	b(mm)	600
20.4	Overall height	h(mm)	2000
21.4	Forwards inclination	β	3°
22.4	posterior slope angle	α	5°
26.4	channel width	Ast(mm)	900
27.4	Vehicle turn around need minimum channel width	Ast(mm)	3000
28.4	Turning radius	Wa(mm)	2600
6	Driving
34.6	Driving motor	Kw	1.2
35.6	Lifting motor	Kw	2.5
36.6	Battery	V/Ah	24/165
39.6	Charger		24V20A
40.6	Electric control		American Curtis

Certification

FAQ

1)Q:What is the minimum order quantity?

A:Taizhou Huize Machine Co.,Ltd specialized in all kinds of pallet truck,stacker,forklift,crane,

boom lift,platform and drum truck.The minimum order is 1 pc.

2)Q:What is the production and delivery time?

A:25 days after receiving the first T/T/1*40''HQ.

3)Q:Can we use our own shipping agent ?

A:Yes,all customers can use their own shippng agent,but we advice you use our factory shipping agent. Because we have been cooperated with the shipping company for 8 years,the cost is lower .

4) Q:Can we mix the 20ft container ?

A: Yes,you can mix it,you can mix less than 3 models in a 20FT container and 4 models in a 40FT or 40HQ container.

We also produce other models stackers maight interest you, please click"electric stacker"
