Dry Powder Filling Machine for Extinguisher With SILO MV

Dry Powder Filling Machine for Extinguisher With SILO MV photo-1

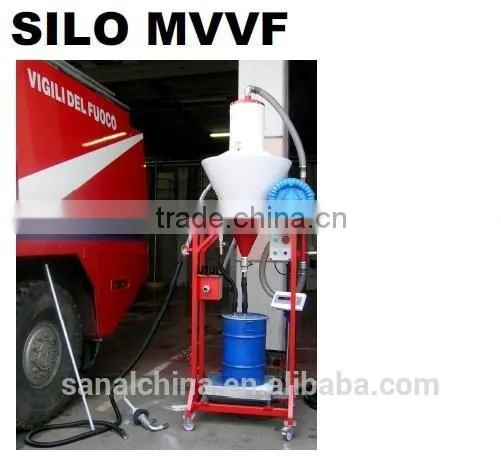

Dry Powder Filling Machine for Extinguisher With SILO MV photo-2
Dry Powder Filling Machine for Extinguisher With SILO MV photo-3
Dry Powder Filling Machine for Extinguisher With SILO MV photo-4
Dry Powder Filling Machine for Extinguisher With SILO MV photo-5

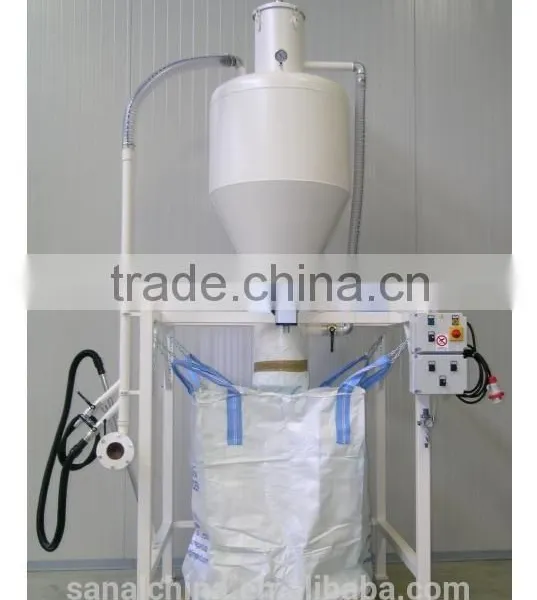

Dry Powder Filling Machine for Extinguisher With SILO MV photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Italy
Brand Name:
SANAL
Model Number:
SILO MV
Payment & Shipping
Payment Methods:
Port of Shipment:
La Spezia
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Italy
Brand Name SANAL
Model Number SILO MV



Dry Powder Filling Machine for extinguisher with SILO MV





SILO MV

TECHNICAL INFORMATION

- Overall dimensions totals approximately L x W x H 1900 x 1490 x 3780 mm;

- No. 1 tank 1400 lt. / 1000 kg. powder painted to fire with a filter;

- Weight 500 Kg;

- No.1 throttle dn 250 pneumatic tank for emptying dust;

- No. 1 dashboard electric and pneumatic

- No.1 vacuum pump oil bath 380V 3.3 kW-150 mc / h with the additional filter of security;

- N. 1 hose with quick emptying of pressurized extinguishers;

- No.1 flexible tube provided with No. 2 aluminum tubes of different diameter for dust suction;

- No.1 wheel flange for direct discharge of pressurized extinguishers.

- 380V 16A 5P

The equipment allows MV SILO recover in bags of 1,000 kg. there powder to be disposed of, directly from

portable fire extinguishers or trailer is pressurized non-pressurized without any kind of pollution environmental. The controls are positioned in easy reach by the operator. The recovery rate is varies according to the speed of emptying of fire extinguishers. E 'supply a vacuum pump 150 mc / h

380 V and 1400 liter tank. so that work with the pump turned on for 8 hours in a row without overheating.

It comes with three attachments for emptying: 1 tube aluminum tanks not pressurized, with one quick

high pressure hose for Wheeled and special tanks, 1 rubber diaphragm with a calibrated orifice

to empty directly extinguishers pressurized. The system is equipped a device that prevents opening

valve exhaust dust presence of vacuum in the tank.



Dry Powder Filling Machine for extinguisher with SILO MV





Dry Powder Filling Machine for extinguisher with SILO MV

Dry Powder Filling Machine for extinguisher with SILO MV

Dry Powder Filling Machine for extinguisher with SILO MVDry Powder Filling Machine for extinguisher with SILO MV
