Keeping Warm Coating Sandwich Panel Keeping Warm

Name: Keeping Warm Coating Sandwich Panel Keeping Warm
Brand: XingRun
SKU: 129316103

US$ 3.5 - 5.6 MOQ: 100 Meters

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

XingRun

Model Number:

950,960,980,1000,1150,1200

Yantai Xingrun Steel Structure Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

longkou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name XingRun

Model Number 950,960,980,1000,1150,1200

Panel Material Metal

Type Other, EPS Sandwich Panels, coating sandwich panel keeping warm

Product Description

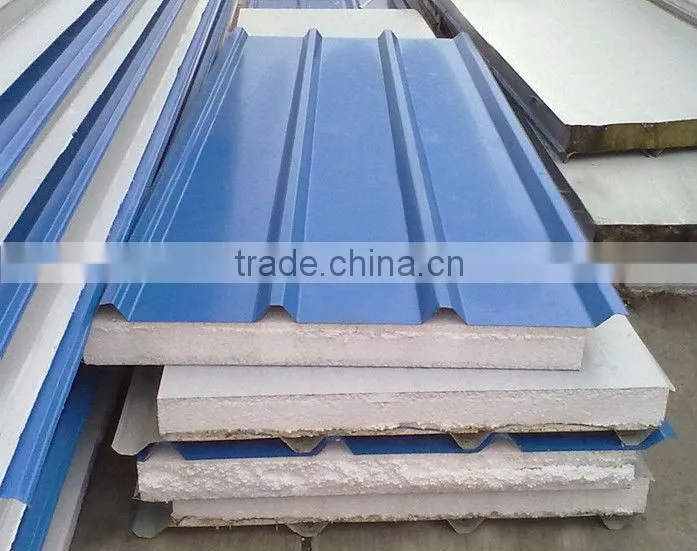

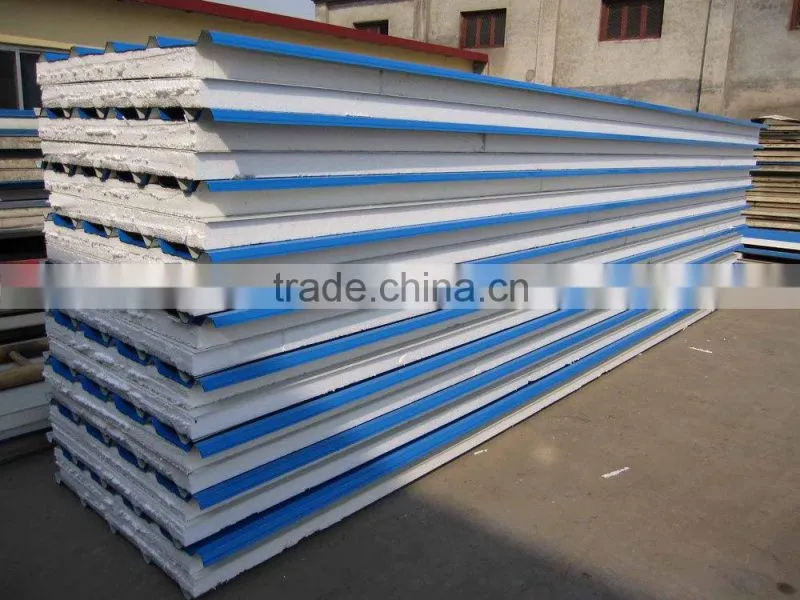

Keeping warm coating sandwich panel keeping warm

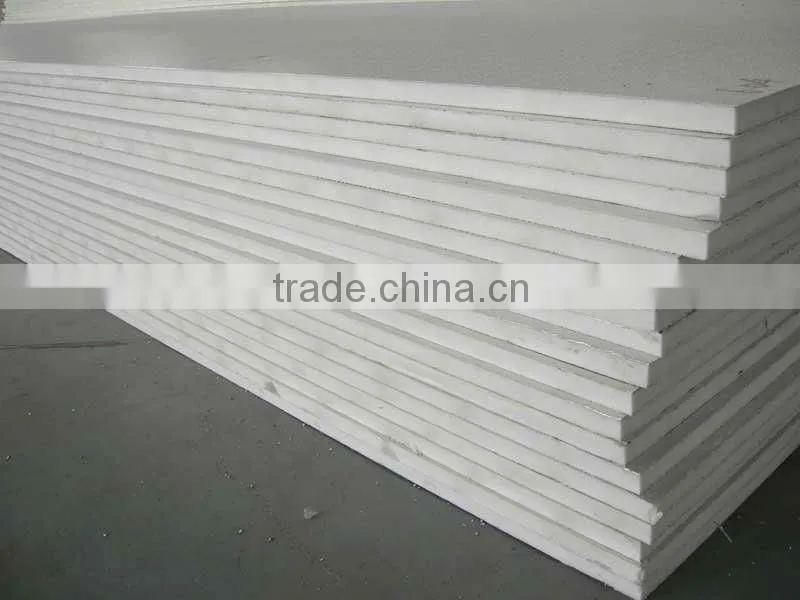

EPS sandwich panel as kind of construction material

is widely used in construction, heat preservation, packaging, frozen, daily necessities, industrial casting, etc.

It can also be used to display the assembly places, commodity cabinet, signs and toys manufacture.

It mainly applies to the wall exterior insulation, heat preservation, floor heating in the wall to adapt national building energy requirements.

Thickness:	50mm, 75mm, 100mm, 150mm
Material of the panels	composed of colorful steel sheets and EPS
Unit Weight of Core Material	8-16 kg/cbm
Width of the panels	950mm for wall and 960mm for roof
Panels type	Wall panel and Roof panel

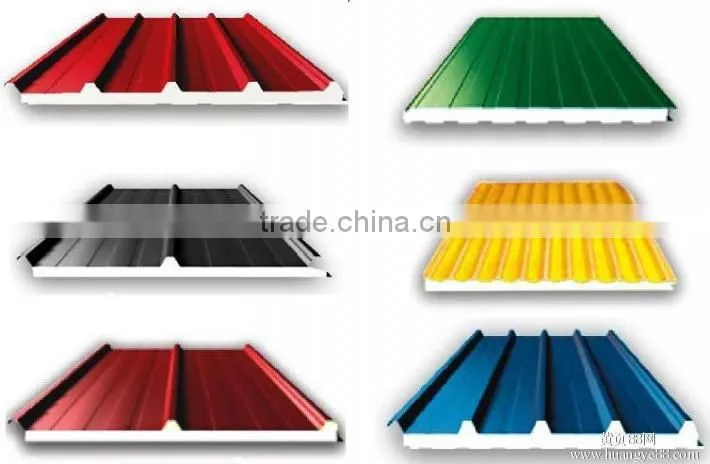

Surface Texture and Appearance	Small wave, Flat, Embossment, Big rib
Heat Insulating Material	EPS (Polystyrene)
Thickness of steel sheet	0.4-0.8mm
Color of the coating	White grey, Sea Blue, Red, etc
Type of sheet Coating	PVDF, HDP, SMP, PE
Type of Base steel sheet	Hot-dip galvanized, Al-Zn coated

Characteristic	Good temp-keeping and heat insulation
Use	Various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums, freezing stores and purification workshops
Installation	Convenient and flexible without the large- size lifting devices so that the construction period is limited with the lower comprenhensive costs
Fine fireproof	Test by national quality inspection center for fireproof building material, all its index reach grade A1
Heavy load bearing capacity	High strength and high rigidness and is suitable either for the weight - bearing structure or for the protective structure

Keeping warm coating sandwich panel keeping warm

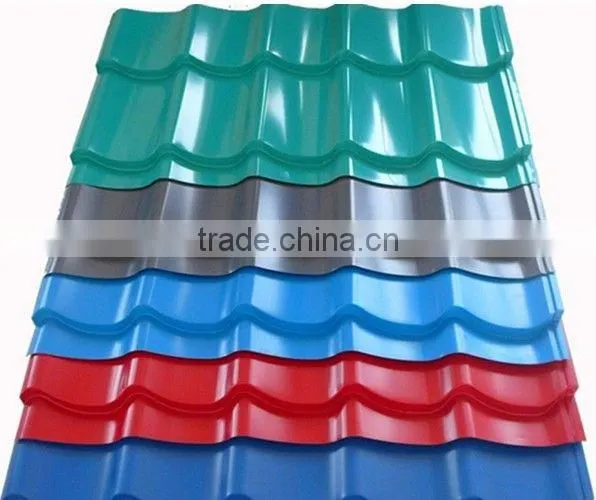

	Color Roof
material	galvanized steel sheet
material	prepainted galvanized sheet
model No.	types of roof sheets
sheet thickness	normal use 0.2-1.2mm
length	any length,according to the transportation,generally less than 12m
color	standard color:red,blue,white,grey
color	special color:according to RAL color
characteristic	1:weather proof
	2:heating insulation
	3:fireproof
	4:anti-rust
	5:sound insulation
	6:long life span:more than 15 years
advantages	1.low foundation cost
	2.easy construction
	3.time saving
	4.labor saving
application field	1:construction:prefabricated house,steel house,mobile house,modular house,villa, bungalow design,portable house/carbin,ready made house,kiosk booths,steel building...
	2:container manufacturing
	3:household appliances and furniture
	4:vehicle and vessel manufacturing
	5:others,like machinery structual parts,maufacturing shells of motors and so on
packing	plastic film,pallet or as your request
