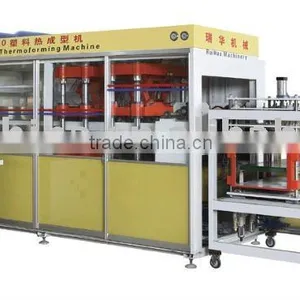

Help CenterSelf Cutting Vacuum Forming Machine
Related Products
Specifications
self cutting vacuum forming machine with automaitc forming and cutting.With CE certificate.
Self cutting vacuum forming machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components and the whole was controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting & stacking into one process.
Application Area:
It is suitable for forming HIPS, PS, PVC, PET, PP sheet that can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, mobile phone tray, egg tray & other blister tray.
Main Technical Parameters:
Model: RHC-600/500 (3 Stations)
Max. Forming Area: 600*500mm
Max. Forming Depth: 100mm
Sheet Thickness Range: 0.15-1.2mm
Max. Sheet Width: 640mm
Air Pressure: 0.8Mpa
Speed: 360-1200 cycles/h
Heater Power: 32kw (Upper Heater)
24kw (Lower Heater)
Cutting Pressure: 20tons
Upper Mold Table Stroke: 120mm
Lower Mold Table Stroke: 120mm
Max. Mold Depth: 120mm
Power: 3 Phases 380V/50HZ
Max. Hydraulic Pump Pressure: 16Mpa
Max. Cutting Length: 8650mm
Machine Total Power: 72kw
Overall Dimensions: 8600*2050*2500mm
Weight: 4000kg
