Help CenterAutomatic Lids Forming Machine
Related Products
Specifications

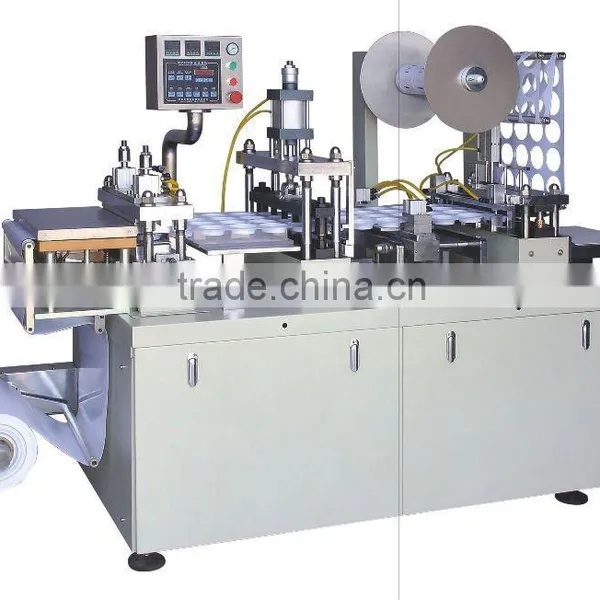

Automatic lids forming machine can produce different PS, PET, PVC lids.TF-400 automatic lids forming machine is designed by the principle of mechanical-electrical-pneumatic integration. It is easy operation that controlled by Siemens PLC & panel. It is including feeding, heating, positive forming (compression molding), punching hole, cutting and rewinding. Manipulator feeder, compact structure & stable performance, easy operation.
Application Area:
It is suitable for thermoforming PS, PVC, PET sheet that can produce varieties of plastic cup lids, paper cup lid, blister package & blister tray.
Main Technical Parameters:
Max. Forming Area: 400*160mm
Max. Forming Depth: 30mm
Production Speed: 900-1200cycles/hour 3 or 4 cavities/mold
Heating Power: 3kw
Motor Power: 1.5kw
Water consumption: 0.3m3/min
Air consumption: ≥0.3m3/min
Air pressure: 0.4-0.7Mpa
Voltage: 380/220V 50HZ
Overall Dimension: 2700*800*1560mm
Weight: 800kg
