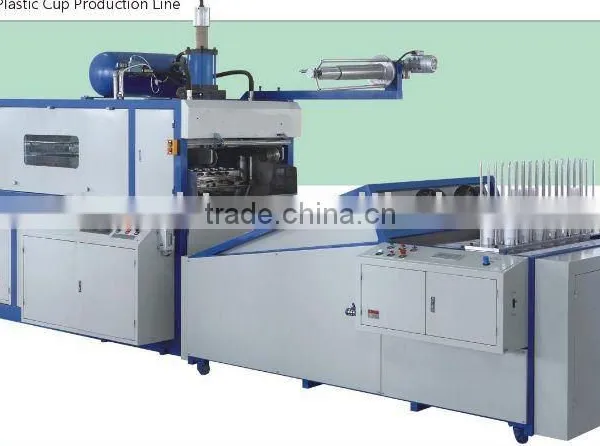

Help CenterPlastic Cup Thermoforming Machine With Stacking Device
Related Products
Specifications
Plastic thermoforming machine is suitable for thermoforming different cups, bowels, trays and platesTF660 Plastic thermoforming machine is a developed highly effective automatic machine adopting
thermoforming techniques. The process of sheet feeding, heating, stretching,
forming and cutting can be accomplished in one cycle. It can be used to form PP,
PE, PS, ABS, and PET, etc. it is widely used in producing disposable tableware such
as cup, ice cream cup, instant noodle package, bowl, and toy box, etc...
Main technical parameters:
Applicable sheet: (Hard Sheet) PP, PE, PS, PVC, ABS (degradable sheet) ,EPS,PET etc.
Sheet Width: 400-630mm
Sheet Thickness: 0.25-2.5mm
Max. Forming Area: 620mm*400mm
Max. Travel: 160mm
Water Temperature: 30 degrees
Forming Pressure: 0.5-0.8Mpa
Productivity: 25-35 strokes/min
Adjustable Travel Length: 100-400mm
Water consumption: 0.5m³
Gas consumption: 2m³/min
Rated Heating Power: 67kw
Starting Power: 7.5kw
Overall Dimensions: 3300*1800*2500mm
Weight: 4.5 tons
