Home > Products > ATSC > Top Selling! HD Atsc Modulator, Android tv Box Atsc for North America Market (mainly for USA, Canada And Mexico)

Top Selling! HD Atsc Modulator, Android tv Box Atsc for North America Market (mainly for USA, Canada And Mexico)

FOB Price

US$ 15 - 16.78 / Set

3000 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	CZH
Model Number	CZH-ATSC-01, CZH-ATSC-01ATSC 148mm

Top selling! HD dvb-t atsc Standard TV Set Top Box for North America market (mainly for USA, Canada and Mexico)

Product description and features:

Hardware
CPU	MSTAR-MSD7802(128 pin) MIPS 34Kf@600MHz
Memory	32X16Mbit DDR2 Frequency1066
Flash	32M bytes
Demodulator Type	MSB1237 Chip Set
TUNER	Rafael R836
USB 2.0	Embedded One Host,
Front Panel	4-digit LED display on front panel
	red LED Standby,green LED Lock
Rear Panel	Tuner RF input connector	Standard ISO/IEC 13818-1; ARIB STB-B10
	Tuner RF Loop through connector	loop through function
	HDMI V1.3
	AV RCA x1
	Ypbpr RCAx1
	Coaxial x1
	Power AC100~240V 50Hz/60Hz
Demodulation	Standard ISO/IEC 13818-1; ARIB STB-B10
	Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel)
	ATSC NTIA and 8VSB Standard
	QPSK, 64QAM, 256QAM
	FEC: 1/2, 2/3, 3/4, 4/5,5/6,
	Guard Interval: 1/4,1/8,1/16,1/32,1/128
	FFT Mode: 2K, 8K, 32K
	RF input frequency: 54-803MHz
	Bandwith: 6MHz
	Input level: -83 - -5dBm

Sortware Features
•USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver
•Converts digital broadcast to your analog TV
•By remote control to choose the RF 3/4 ch output
•Sleep Timer
•Support teletext/subtitle/muti-language
•Powerful and highly effective 7-day EPG function
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

Decoder
Video Decoder	Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder	MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding

Powerful Multimedia Features
MediaCodec	avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec	WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec	JPEG, BMP, PNG
Multimedia License
Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.
Accessories
Accessories	gift box
	AV cable optional
	HDMI cable optional
	IR remote control
	User Manual

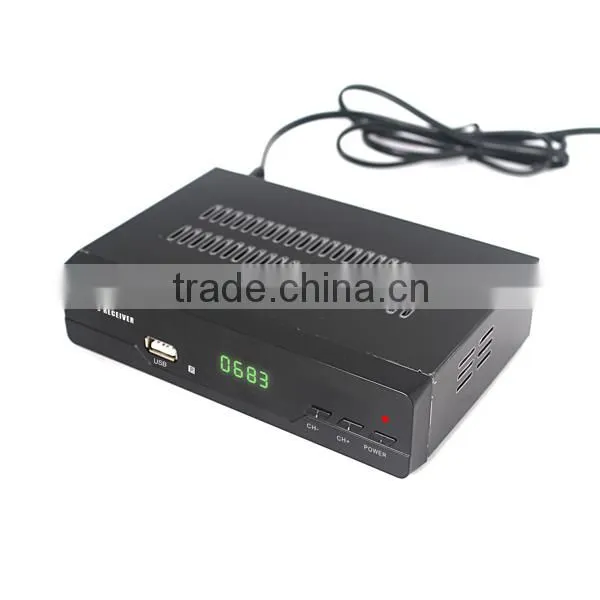

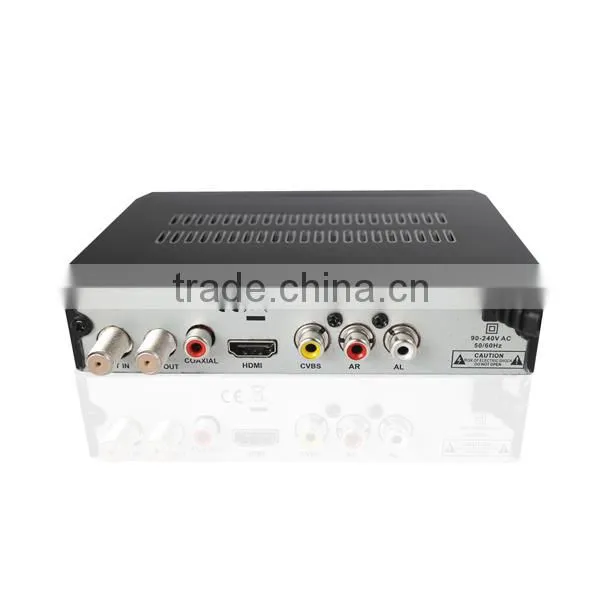

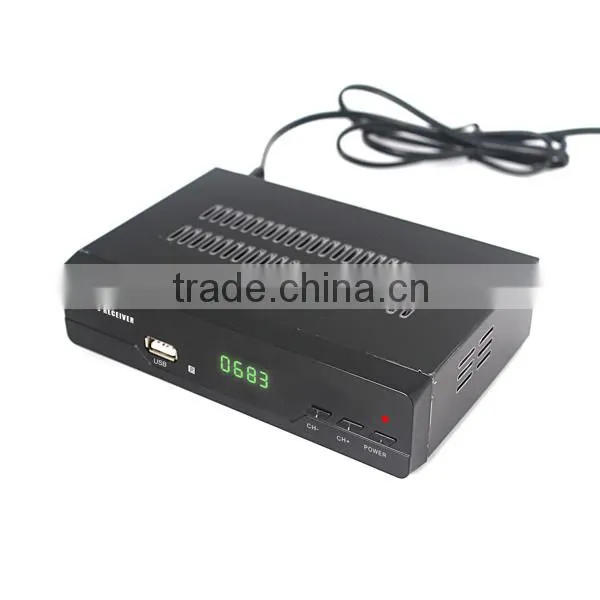

Pictures Show:

Product Certification:
