Waster Tire Shredding Mill/Waste Rubber Crushing Machine/Rubber Powder Grinding Machine
US$ 1 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, tire recycling machine
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rubber Refining Mill/Rubber Refining Machine/Rubber RefinerUS$ 1 - 99,999MOQ: 1 Set -
High Quality Hot-Sale Rubber Refining Mill for Reclaimed Rubber Making/Relaimed Rubber Mill/Reclaimed Rubber Making MachineUS$ 1 - 99,999MOQ: 1 Set
-
Rubber Reclaiming Machine/Reclaimed Rubber Mill/Reclaimed Rubber Refining MachineNegotiableMOQ: 1 Set
-
Full-automatic Large Scale Scrap Tires Recycling Rubber Powder Production LineUS$ 1 - 999,999MOQ: 1 Set
-
Full-automatic Large Scale Waste Tyre Recycling Rubber Powder Production LineUS$ 1 - 99,999MOQ: 1 Set
Condition
New
Type
Other, tire recycling machine
Place of Origin
Jiangsu, China
Brand Name
MIXER
Model Number
XKP-560
Voltage
380V
Power(W)
75KW
Dimension(L*W*H)
5620x2260x1900mm
Weight
16000KG
Certification
CE,ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Waster tire shredding Mill/Waste Rubber Crushing machine/Rubber Powder Grinding Machine :

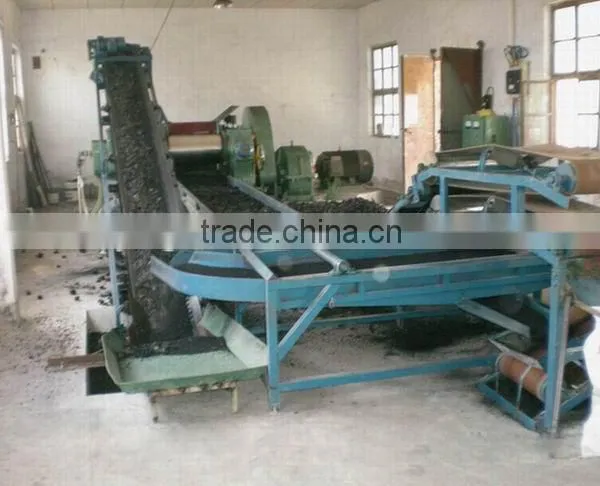

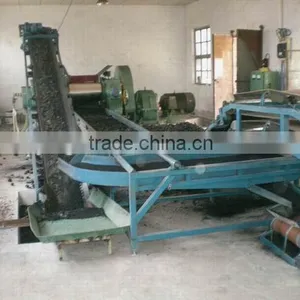

Waste tire recycling machine: This line mainly consists of mainframe (rubber crusher), powder screener, and magnetic separator.
Step1: Through the decomposition of waste tire by Waste tire breaking down machines set, the tire processed into about 3.5 cm square pieces first;
Step2: By the rubber crusher shredding process to get rubber powder or particles with wire and fiber mixed inside.
Step3: Using the powder vibrating screener, magnetic separator to completely separate wire and fiber and tire rubber powder or granules.
Through the conveyor belt with two sieve beds filter out the fine material and then by magnetic roller, magnetic separation of steel wire and fiber, finally, getting the pure rubber powder.
These machines set mainly consists the following equipment:
1. Tire ring cutter XQK-800
This machine is used to cut steel tire sidewall in order to do separation of the next step. Tire placed Disc platform, rotate the middle of hand-wheel, three-jaw card holder will be jammed solid inner tire, start power, work platform rotation, cutting tools as needed into the knife, slowly cut into the tires, step by step, until cut sidewall of the tire. This is first step of recycling waste tire.
motor |
Range of process |
Capacity /hour |
Dimension |
weight |
2.2KW |
750-1200mm dia tire |
25-30 tires /hour |
1300*900*1480 mm |
0.6 ton |
2. Rubber bar cutter
This machine is utilized to cut radial tire which has been removed one side-wall into a certain sized of rubber strip.
2 disc cutters are of special materials, hard and durable, can be used repeatedly grinding for no more than 1200mm dia wire tires.
Motor power |
capacity |
Process tire dia |
Material processed size |
dimension |
weight |
5.5KW |
20 tires/hour |
Less than 1200mm |
35-55mm |
1230*650*1580 |
0.8 ton |
Rubber block cutter can cut the tire strip cut by bar cutter into lump type. The cutter is of alloy, capacity is 9-11 tons per day. The knife is not shaper, can be repeated grinding.
Motor |
capacity |
Size of processed materials |
Dimension of the machine |
weight |
7.5KW |
0.8-1ton/hour |
35*35mm |
780*550*1210mm |
0.6ton |
Ⅱ. Main machine group
The machines set consist of rubber crusher and auxiliary machine. The auxiliary machines mainly consist of vibration sieve, rubber block conveyor, rubber powder filter screener, powder materials conveyor; steel wire magnetic separator. These auxiliary machines works together to achieve the production process flow.

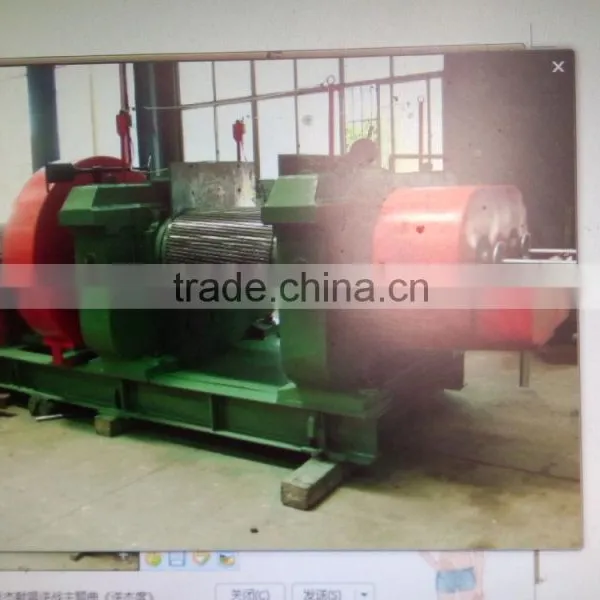

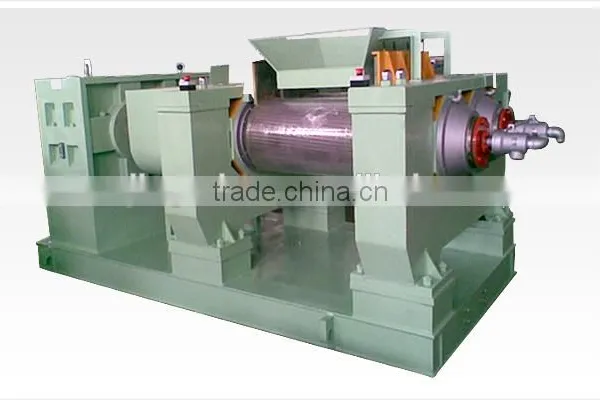

1. The rubber crushing mill: It is mainly used to crush the rubber lump, soles and rubber leftover materials to get the rubber powder or rubber granules.. The machine uses alloy chilled cast iron roller, the surface of hard wear-resistant, roll after roll of groove, cavity processing, so that the roll surface temperature uniformity; with overload protection and emergency braking device, safe and reliable; using hand-wheel adjustable rollers tube spacing, easy to operate.
Specification
Specification:
Item |
model |
Roll dia×
Roll length
(mm)
|
Roll ratio |
Front roll linear
speed (M/min)
|
Production
capacity (Kg/h)
|
Max.gap
(mm)
|
Motor
power
(KW)
|
Dimension
(mm)
|
Weight Kg |
Remarks |
Rubber crusher |
XKP-400 |
400×600 |
1:1.38 |
17.16 |
70~600 (according to
power size )
|
10 |
45 |
4210×1850
×1925
|
7500 |
grease |
Rough power crusher |
XKC-400 |
400×600 |
1:1.38 |
17.16 |
800 |
10 |
45 |
4210×1850
×1925
|
7500 |
grease |
Rubber crushing mill |
XKP-450 |
450×760 |
1:1.38 |
23.43 |
1000 |
10 |
55 |
4550×1970
×1860
|
11000 |
grease |
Rubber crushing mill |
XKP-560 |
510×800 560×800 |
1:1.39 |
27.14 |
2000 |
15 |
75 |
5620×2260
×1900
|
16000 |
grease |
