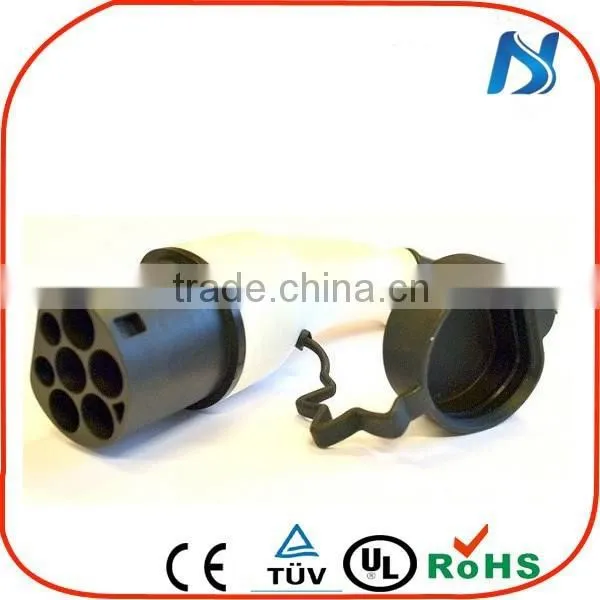

Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet

Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet thumbnail-1
Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet thumbnail-2
Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet thumbnail-3
Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet thumbnail-4
Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet thumbnail-5
Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet thumbnail-6
Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet photo-1
Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet photo-2
Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet photo-3
Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet photo-4
Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet photo-5
Mode 3 Type 2 Plug Dsiec2e EV 32P Charing Socket For Electric Car Charging Type 2 Male Inlet photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Khons
Model Number:
iec62196 ev socket /conductive charge coupler battery/connector socket
Contact Supplier Request Quote Chat Now
Chengdu Khons Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Khons
Model Number iec62196 ev socket /conductive charge coupler battery/connector socket
Type Other, Plug with Socket, Type 2 Plug
Grounding Standard Grounding
Rated Voltage 250V AC
Rated Current 16A/32A/63A
Application Industrial

Product Features

1.Meet IEC62196 standards;

2.Nice shape, hand-held ergonomic design, easy to use;

3.Protection class: IP54(in mated conditions);

4.Reliability of materials,  environmental protection, abrasion resistance, impact resistance, oil resistance and Anti-UV



Electrical Performance

1.Rated current:16A/32A/63A;

2.Operating voltage: 250V AC;

3.Insulation resistance:>1000MΩ(DC500V);

4.Terminal temperature rise:<50K;

5.Withstand voltage:2000V;

6.Contact impedance: 0.5mΩ Max

7.Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements.



Mechanical properties

1.Mechanical life: no-load socket in/pull out >10000 times

2.Insertion and coupled Force: 45N<F<80N;

3.Operating temperature: -30°C ~ +50°C



Materials

1.Shell material: Thermoplastic (Insulator inflammability UL94 V-0);

2.Contact Pin: Copper alloy, silver or nickel plating;

3.Sealing gasket: rubber or silicon rubber;



 Mode 3 Type 2 Plug Dsiec2e EV 32P charing socket For Electric Car Charging Type 2 Male InletMode 3 Type 2 Plug Dsiec2e EV 32P charing socket For Electric Car Charging Type 2 Male InletMode 3 Type 2 Plug Dsiec2e EV 32P charing socket For Electric Car Charging Type 2 Male InletMode 3 Type 2 Plug Dsiec2e EV 32P charing socket For Electric Car Charging Type 2 Male Inlet

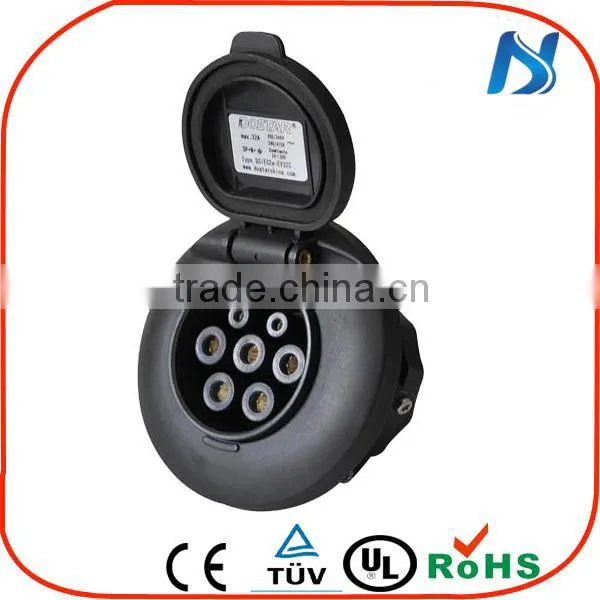

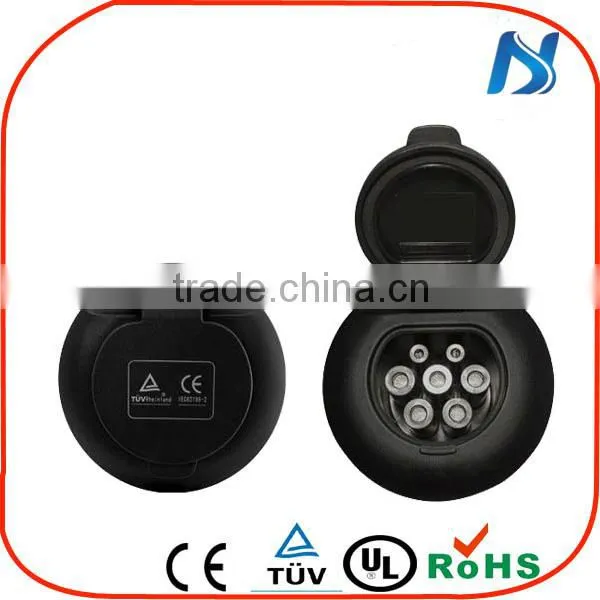

Adapt Socket type : DSIEC2a-G-EV16S / 32S /63S



Product parameters

Type

DSIEC2a-G-EV-S

Plug the power

≤160N

Color

Grey

Patch life

≥10000

Rated Current

16A/32A/63A

Fire rating

UL94 V-0

Rated Voltage

250

Waterproof rating

Cutoff:IP54,Charge:IP67

Resistance Voltag

2000V

Operating Temperature

-30°Cto60°C

Insulation resistance

>1000M(DC500V)

Cable Specifications

2.5mm2 -10mm2

The main material

PC/Copper Alloy







charging Mode

Mode

Type

Rated voltage

Rated Current

AWG

Number of insert

1

DSIEC2a-G-EV-16S

250V AC

16A

3*2.5mm2+2*0.5mm2

7

2

DSIEC2a-G-EV-32S

250V AC

32A

3*6mm2+2*0.5mm2

7

3

DSIEC2a-G-EV-63S

250V AC

63A

3*10mm2+2*0.5mm2

7

Remark

The length of the cable can be customized

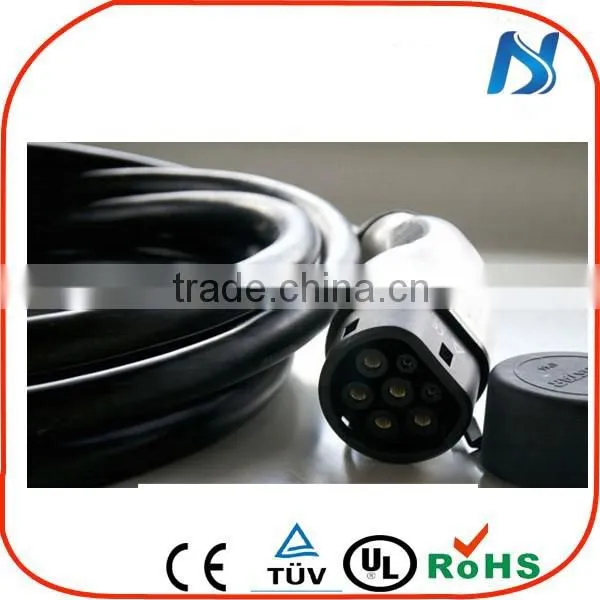

type : DSIEC2e-EV16P / 32P /63P



Product parameters

Type

DSIEC2e-EV-P

Plug the power

≤160N

Color

Grey

Patch life

≥10000

Rated Current

16A/32A/63A

Fire rating

UL94 V-0

Rated Voltage

250

Waterproof rating

Cutoff:IP54,Charge:IP67

Resistance Voltag

2000V

Operating Temperature

-30°Cto60°C

Insulation resistance

>1000M(DC500V)

Cable Specifications

2.5mm2 -10mm2

The main material

PC/Copper Alloy





charging Mode

Mode

Type

Rated voltage

Rated Current

AWG

Number of insert

1

DSIEC2e-EV-16P

250V AC

16A

3*2.5mm2+2*0.5mm2

7

2

DSIEC2e-EV-32P

250V AC

32A

3*6mm2+2*0.5mm2

7

3

DSIEC2e-EV-63P

250V AC

63A

3*10mm2+2*0.5mm2

7

Remark

The length of the cable can be customized

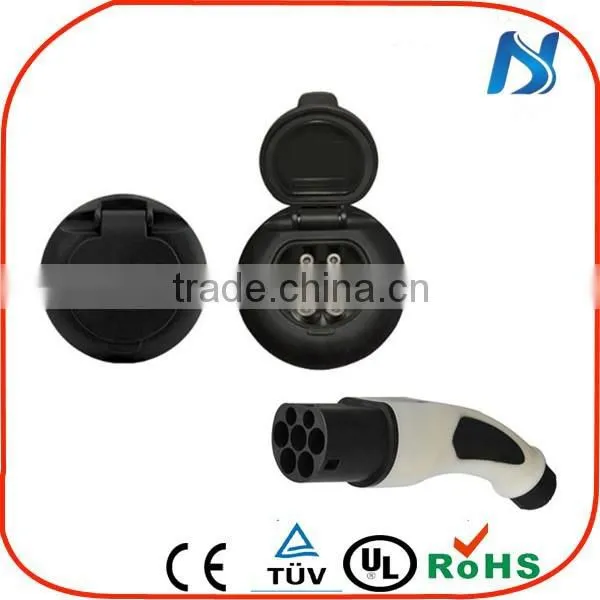

 Associated products















Details photos





Company Information



About KHONS:







Chengdu Khons Technology Co., Ltd.

We are dedicated in the electric car charger industry With Superior product quality, powerful factory support  and valued foreign trade experience to Europe, America,South Africa, Southeast Asia,  etc

Our Advantage:

1.International approvals(UL,TUV,CE,ROHS)

2.Competitive price

3.Prompt Delivery time(7-10 days)

4.Guaranteed quality

5.OEM order is acceptable image

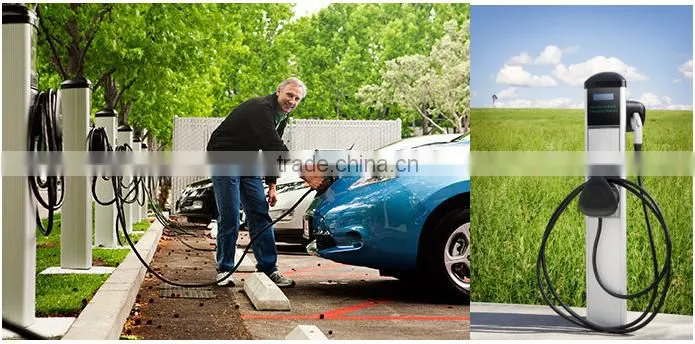

 Apply to vehicle



Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...
