63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet

63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet thumbnail-1
63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet thumbnail-2
63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet thumbnail-3
63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet thumbnail-4
63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet thumbnail-5
63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet thumbnail-6
63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet photo-1
63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet photo-2
63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet photo-3
63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet photo-4
63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet photo-5
63A IEC 62196-2 Inlet Socket/ IEC 62196-2 EV Charging Plug Type 2 Male Inlet photo-6
US$ 32 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Khons
Type:
Other, Electrical Plug, IEC 62196-2 Inlet socket
Grounding:
Standard Grounding
Contact Supplier Request Quote Chat Now
Chengdu Khons Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Khons
Type Other, Electrical Plug, IEC 62196-2 Inlet socket
Grounding Standard Grounding
Rated Voltage 120V-240V AC
Rated Current 16A/32A/70A
Application Industrial



IEC 62196-2 ev charger plug and socket with UL,TUV certificate
63A IEC 62196-2 Inlet socket/ IEC 62196-2 EV Charging Plug type 2 male inlet63A IEC 62196-2 Inlet socket/ IEC 62196-2 EV Charging Plug type 2 male inlet63A IEC 62196-2 Inlet socket/ IEC 62196-2 EV Charging Plug type 2 male inlet

Product parameters

Type

DSIEC2e-EV-P

Plug the power

≤160N

Color

Grey

Patch life

≥10000

Rated Current

16A/32A/63A

Fire rating

UL94 V-0

Rated Voltage

250

Waterproof rating

Cutoff:IP54,Charge:IP67

Resistance Voltag

2000V

Operating Temperature

-30°Cto60°C

Insulation resistance

>1000M(DC500V)

Cable Specifications

2.5mm2 -10mm2

The main material

PC/Copper Alloy





charging Mode

Mode

Type

Rated voltage

Rated Current

AWG

Number of insert

1

DSIEC2e-EV-16P

250V AC

16A

3*2.5mm2+2*0.5mm2

7

2

DSIEC2e-EV-32P

250V AC

32A

3*6mm2+2*0.5mm2

7

3

DSIEC2e-EV-63P

250V AC

63A

3*10mm2+2*0.5mm2

7

Remark

The length of the cable can be customized



Materials



Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)



Contact Pin: Copper alloy, silver or nickel plating



Sealing gasket: rubber or silicon rubber

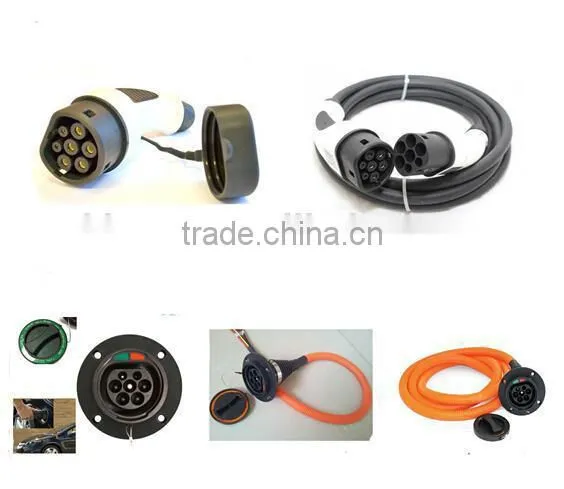

Detail pictures

 63A IEC 62196-2 Inlet socket/ IEC 62196-2 EV Charging Plug type 2 male inlet63A IEC 62196-2 Inlet socket/ IEC 62196-2 EV Charging Plug type 2 male inlet63A IEC 62196-2 Inlet socket/ IEC 62196-2 EV Charging Plug type 2 male inlet





Company Information



About KHONS:







Chengdu Khons Technology Co., Ltd.

We are dedicated in the electric car charger industry With Superior product quality, powerful factory support  and valued foreign trade experience to Europe, America,South Africa, Southeast Asia,  etc

Our Advantage:

1.International approvals(UL,TUV,CE,ROHS)

2.Competitive price

3.Prompt Delivery time(7-10 days)

4.Guaranteed quality

5.OEM order is acceptable image





 Apply to vehicle



Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...

63A IEC 62196-2 Inlet socket/ IEC 62196-2 EV Charging Plug type 2 male inlet





Packing details

63A IEC 62196-2 Inlet socket/ IEC 62196-2 EV Charging Plug type 2 male inlet

Production line

63A IEC 62196-2 Inlet socket/ IEC 62196-2 EV Charging Plug type 2 male inlet





  Please contact us if any question .

63A IEC 62196-2 Inlet socket/ IEC 62196-2 EV Charging Plug type 2 male inletContact information



Skype:   kelly.zeng20



E-mail:  kellyzeng1989(at)outlook.com



Tel:   +86-18224414046/+86-28-83128852



 QQ:   651812502



Trade manager:  cn1515342077erku





Address: Room909, No.27,South Renmin, Chengdu,,China
