Nanjing Mixer Rubber&Plastic Machinery Co., Ltd.: Nanjing, Jiangsu, China; Main products: dispersion kneader, rubber mixing mill, Barwell rubber precision preformer, Rubber Vulcanizing Press, Sigma Kneader

Home > Products > Rubber Open Mixing Mill > Two Rolls Rubber Processing Mixer Machinery/xk-160 Open Mixing Mill

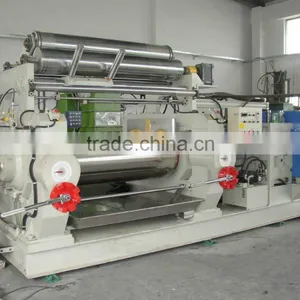

Two Rolls Rubber Processing Mixer Machinery/xk-160 Open Mixing Mill

Name: Two Rolls Rubber Processing Mixer Machinery/xk-160 Open Mixing Mill
Brand: Mixer
Availability: InStock

FOB Price

US$ 1 - 99,999 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Open Mixing Mill
Place of Origin	Jiangsu, China	Brand Name	Mixer
Model Number	X(S)K -400	Voltage	380v
Power(W)	40kw	Dimension(LWH)	4490x1700X1750mm
Weight	9000kg	Certification	CE
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Used for rubber&plastic mixing,sheeting.

Features:

· Tailored structure,stable performance, easy to operate.

· There are varied speeds and fraction ratios available, which can satisfy most customers’ formula and processing requirements.

· Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.

· Chilled alloy cast iron roll is abrasion resistant with long service life.

· The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

· Perfect emergency stop device can ensure the safety of personnel and equipment.

· The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.

· Stock pan is easy to clean up with dislodging device.

· Human nature designed operating system reduces labor intensity.

· Modular structure offers various structures for customers’ option.

· The flexible design system can satisfy customers’ special design requirements within the shortest time.

· A load test running will be made to the assembled equipment in our company to save debugging time for customers.

Specification

Model		X(S)K-160	X(S)K -250	X(S)K -360	X(S)K -400	X(S)K -450	X(S)K -550	X(S)K-660
Diameter of rolls		160	250	360	400	450	550	660
Working length of roll		320	620	900	1000	1200	1500	2130
Working speed of front roll		8.95	14.9	17.4	19.3	23.1	28.6	30
Fraction ratio of rolls		1:1.35	1:1.1	1:1.27	1:1.27	1:1.27	1:1.29	1:1.05
Max.gap(mm)		5	8	10	10	10	15	15
Nip regulating mode		Manual	Manual	Manual	Manual or Electric	Manual or Electric	Manual or Electric	Electric
Batch capacity(Kg)		1-2	10-15	20-15	25-35	30-50	50-60	120-140
Motor	Power	5.5	15	30	45	55	90/110	180
Motor	Motor speed(r/m)	1440	730	980	740	980	740	740
Reducer		Full closed type hardened gear speed reducer
Reduction ratio		43	35	49.7	38	47.2	35.6	126.2
Overall dimension (mm)		1120x920 X1295	3400x1270 X1620	4140x1770 X1700	4490x1700 X1750	5570x1900 X1750	6290x2330 X1780	7500x 2630x2060
Weight (kg)		1100	4200	7600	9000	11500	20000	26500

Shipment moment

Customer visit
