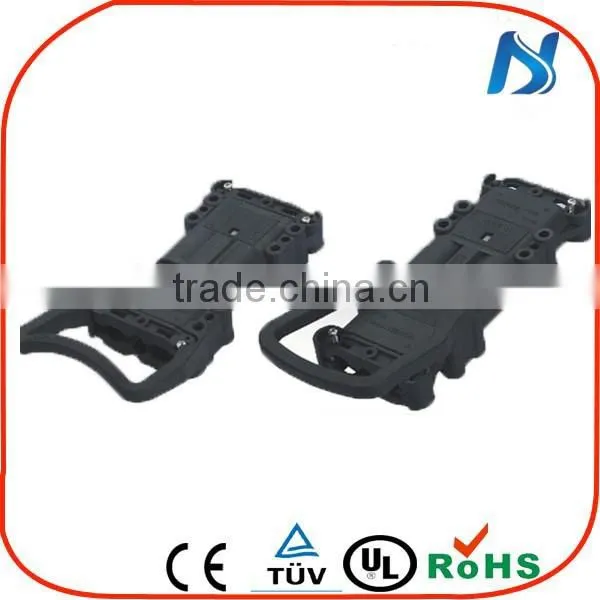

EC battery connector 160a din forklift connectors
- 1000 Set / Sets per Month
- Shanghai ShenZhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Khons din forklift connectors | Model Number: | EC din forklift connectors |
Type: | DIN | Application: | Power | Gender: | Other, female and male |
Product Description
Application
Product Features
Rating Current:80A -320A
Rating Voltage:600V
Specification:
1.Silver-plated contact
2.Different contact barrel size for choice(4AWG-3/0AWG e.g.)
3.Genderless design to reduce the stocking
4.Difference color recommended different voltage code
5.Quick connect/disconnect
6.Operating temperature: -25°C ~ +105°C
7.Withstand voltage:2200V
8.Mechanical life: 10000 times
Our Advantage:
1.The products series completely,from multi pole to single pole,from low amps to high amps
2.Different color housing is available
3.Different contact barrel size for choice
4.International approvals(UL,CE,ROHS)
5.Competitive price
6.Prompt Delivery time(7-10 days)
7.Guaranteed quality
8.OEM order is acceptable
UL,ROHS,CE approvals
Adapt socket type : EC80/EC160/EC320
| EC80 | EC160 | EC320 |
UL Rating Voltage | 80amps/150vdc | 160amps/150vdc | 320amps/150vdc |
Diameter range | Main terminals #8-#2(10/35)Auxiliary terminal #18-#14(1.5/2.5) | Main terminals #6-#1/0(16/50)Auxiliary terminal #12-#10(4/6) | Main terminals #1/0-#4/0(50/95)Auxiliary terminal #18-#10(1.5/6) |
average terminal holding force | About 100lbs | About 100lbs | About 100lbs |
average contact resistance | 2awg (35mm2)wire 65 micro-ohms | 1/0awg (50mm2)wire 55 micro-ohms | 4/0awg (95mm2)wire 30 micro-ohms |
average insertion force | 12lbs (53N) | 12lbs (53N) | 12lbs (53N) |
Anti-acid | 1.38g/cm2 | 1.38g/cm2 | 1.38g/cm2 |
Waterproof rating | IP23 | IP23 | IP23 |
We are Chengdu Khons Technology Co.,Ltd ,waiting for you
