forklifts parts battery ev connector electric forklift battery connector
Product Features
Rating Current:50/175/350A
Rating Voltage:600V
Specification:
1.Silver-plated contact
2.Different contact barrel size for choice(16/20AWG,12/16AWG,10/14AWG,10/12AWG,8AWG,6AWG,4AWG,2AWG,1AWG,1/0AWG e.g.)
3.Genderless design to reduce the stocking
4.Difference color recommended different voltage code
5.Quick connect/disconnect
6.Operating temperature: -20°C ~ +105°C
7.Withstand voltage:2200V
8.Mechanical life: 10000 times
|
SC50 |
SC175 |
SC350 |
UL Rating Voltage |
50amps/600vdc |
175amps/600vdc |
350amps/600vdc |
Rating Current |
50amps on 6awg wire produces 30°C rise |
175amps on 1/0awg wire produces 30°C rise |
350amps on 750mcm wire produces 35°C rise |
|
Maximum Wire Insulation Diameter |
0.44"/11mm |
0.75"/19mm |
1.10"/28mm |
|
average terminal holding force |
About 50lbs |
About 300lbs |
About 500lbs |
|
average contact resistance |
With 11/4" (32mm) of 6awg wire 200 micro-ohms |
With 13/4" (45mm) of 1/0awg wire 100 micro-ohms |
With 21/2" (64mm) of 300mcm wire 50 micro-ohms |
average insertion force |
15lbs (6.75kg) |
25lbs (11.25kg) |
30lbs (13.50kg) |
Standards
ISO International International Standardization Organization
UL USA U.S. safety standard certification
ROHS EU Restriction of Hazardous Substances
Adapt socket type : SP15-180
|
SP15-45 |
SP75 |
SP120 |
SC180 |
UL Rating Voltage: |
15-45amps/600vdc |
75amps/600vdc |
120amps/600vdc |
180amps/600vdc |
|
Maximum Wire Insulation Diameter: |
0.175"/4.45mm |
0.437"/11.10mm |
0.600"/15.24mm |
0.900"/22.86mm |
|
average terminal Holding: |
About 25lbs |
About 50lbs |
About 100lbs |
About 170lbs |
Our Advantage:
1.The products series completely,from multi pole to single pole,from low amps to high amps
2.Different color housing is available
3.Different contact barrel size for choice
4.International approvals(UL,CE,ROHS)
5.Competitive price
6.Prompt Delivery time(7-10 days)
7.Guaranteed quality
8.OEM order is acceptable
Application
details picture

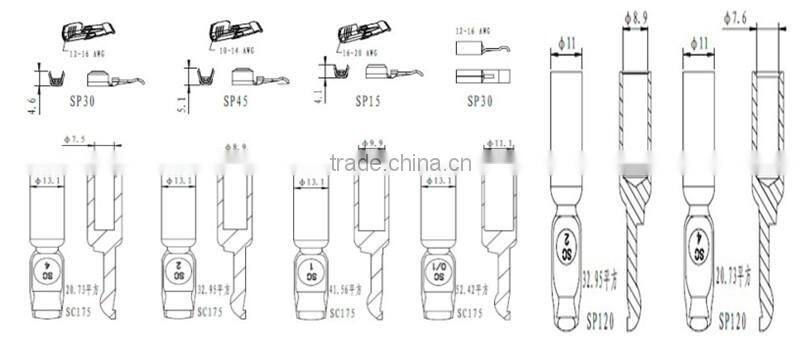

Terminal Size
Packing and shipping
Shipmnet:FOBshanghai,by sea,by air.Fedex,TNT,DHL,UPS
Packaging Details: bubbles wrap over products.strong heavy carboard carton.
Please contact us if any question .
