electrical terminal connector 175A 600V to buy in bulk
- 2000 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | khons | Model Number: | SC50/175/350 |
Type: | DIN | Application: | Power | Gender: | Other, male and female |
Product Description

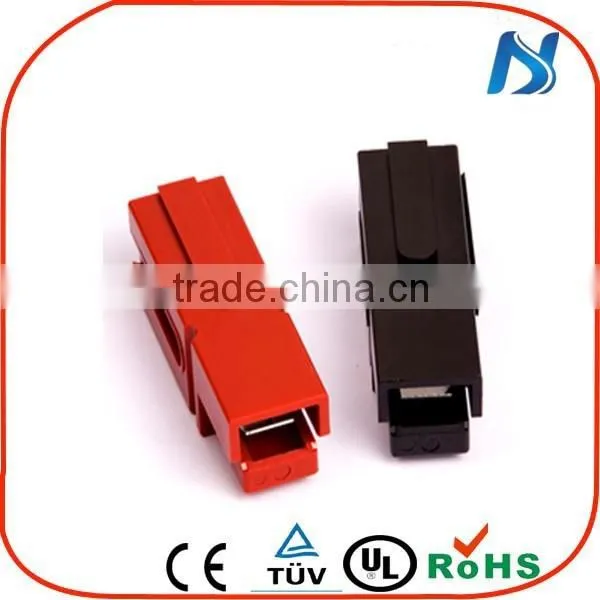

electrical terminal connector 175A 600V to buy in bulk
Product Features
Rating Current:50/175/350A
Rating Voltage:600V
Specification:
1.Silver-plated contact
2.Different contact barrel size for choice(10/12AWG,8AWG,6AWG,4AWG,2AWG,1AWG,1/0AWG,2/0AWG,3/0AWG,4/0AWG e.g.)
3.Genderless design to reduce the stocking
4.Difference color recommended different voltage code
5.Quick connect/disconnect
6.Operating temperature: -20°C ~ +105°C
7.Withstand voltage:2200V
8.Mechanical life: 10000 times
Standards
ISO International International Standardization Organization
UL USA U.S. safety standard certification
ROHS EU Restriction of Hazardous Substances

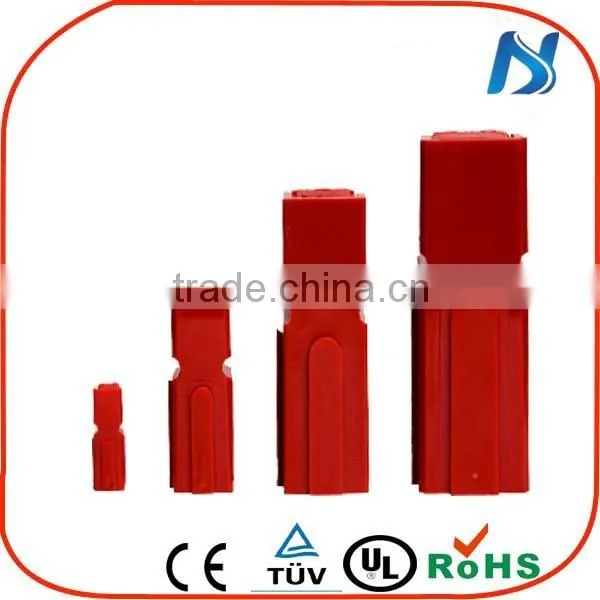

| SC50 | SC175 | SC350 |
UL Rating Voltage | 50amps/600vdc | 175amps/600vdc | 350amps/600vdc |
Rating Current | 50amps on 6awg wire produces 30°C rise | 175amps on 1/0awg wire produces 30°C rise | 350amps on 750mcm wire produces 35°C rise |
Maximum Wire Insulation Diameter | 0.44"/11mm | 0.75"/19mm | 1.10"/28mm |
average terminal holding force | About 50lbs | About 300lbs | About 500lbs |
average contact resistance | With 11/4" (32mm) of 6awg wire 200 micro-ohms | With 13/4" (45mm) of 1/0awg wire 100 micro-ohms | With 21/2" (64mm) of 300mcm wire 50 micro-ohms |
average insertion force | 15lbs (6.75kg) | 25lbs (11.25kg) | 30lbs (13.50kg) |
Adapt type : SC50/175/350
Our Advantage
1.The products series completely,from multi pole to single pole,from low amps to high amps
2.Different color housing is available
3.Different contact barrel size for choice
4.International approvals(UL,CE,ROHS)
5.Competitive price
6.Prompt Delivery time(7-10 days)
7.Guaranteed quality
8.OEM order is acceptable
Application
Detailed pictures
Installation
Terminal Size
Packing and Shipping
Shipmnet Method: FOBshanghai by sea or express through Fedex,TNT,DHL,UPS etc.
Packaging Details: Bubbles wrap over products, outer with strong heavy carboard carton.
About KHONS:
Chengdu Khons Technology Co., Ltd.
We are dedicated in the electric car charger industry With Superior product quality, powerful factory support and valued foreign trade experience to Europe, America,South Africa, Southeast Asia, etc
Our Advantage:
1.International approvals(UL,TUV,CE,ROHS)
2.Competitive price
3.Prompt Delivery time(7-10 days)
4.Guaranteed quality
5.OEM order is acceptable image
Looking for long term business relationship with you.
Contact Information
Chengdu Khons Technology Co., Ltd.
Skype: sira-khons
E-mail: sira-khons(at)
Tel: +86-13215734637/+86-28-83128852
QQ: 2239309555
Whatsapp/Wechat: +8613215734637
Trade manager: cn1510158314
Address: Room1-2-909, No.27,South Renmin Rd, Chengdu City,Sichuan Province,China
RFQ:
Here are some customer’s common questions about our sae j1772 ac ev cable charge plug :
1. What is your terms of payment?
We will recommend our customer to use different terms of payment based on difference in quantity of order.
Less than 1000 USD, generally sample order we could accept Paypal,west union,etc
More than 1000 USD, generally choose bank transfer or Alibaba
If you need the detailed terms of payment, pls contact us.
2. Do your products have quality certification?
All of our EV charging products posses with CE, TUV certifications, J1772 products posses with UL certification.
3. How do you deliver your goods to me? How long will it take?
We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kg will be arranged by DHL (3 days), the weight of products more than 50 kg will be arranged by Ocean freight (30 days). But pls note that this is just the time of transportation, the producing time of products will be varied from 7 days to 15 days due to the quantity of order, the level of busyness in production line.
