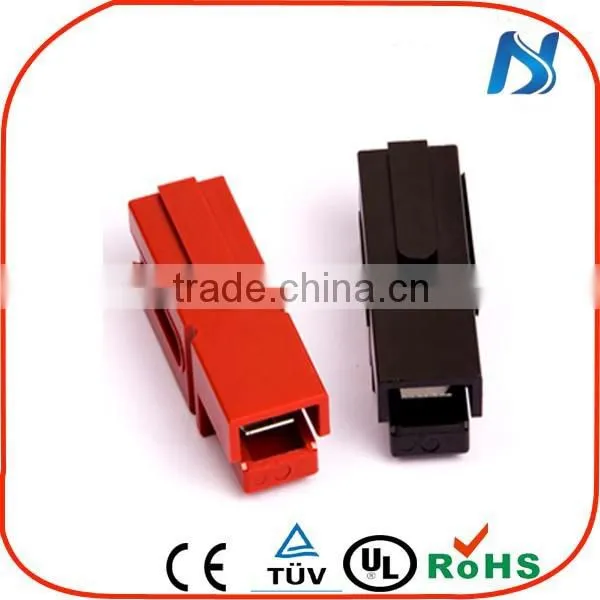

waterproof electrical connector/single pin small electrical connectors
Single connector product Features
Rating Current:15-180A
Rating Voltage:600V
Specification
1.Silver-plated contact
2.Different contact barrel size for choice(16/20AWG,12/16AWG,10/14AWG,10/12AWG,8AWG,6AWG,4AWG,2AWG,1AWG,1/0AWG e.g.)
3.Genderless design to reduce the stocking
4.Difference color recommended different voltage code
5.Quick connect/disconnect
6.Operating temperature: -20°C ~ +105°C
7.Withstand voltage:2200V
8.Mechanical life: 10000 times
Standards
ISO International International Standardization Organization
UL USA U.S. safety standard certification
ROHS EU Restriction of Hazardous Substances
Adapt socket type : SP15-180
|
SP15-45 |
SP75 |
SP120 |
SC180 |
UL Rating Voltage: |
15-45amps/600vdc |
75amps/600vdc |
120amps/600vdc |
180amps/600vdc |
|
Maximum Wire Insulation Diameter: |
0.175"/4.45mm |
0.437"/11.10mm |
0.600"/15.24mm |
0.900"/22.86mm |
|
average terminal Holding: |
About 25lbs |
About 50lbs |
About 100lbs |
About 170lbs |
Our Advantage
1.The products series completely,from multi pole to single pole,from low amps to high amps
2.Different color housing is available
3.Different contact barrel size for choice
4.International approvals(UL,CE,ROHS)
5.Competitive price
6.Prompt Delivery time(7-10 days)
7.Guaranteed quality
8.OEM order is acceptable
Application

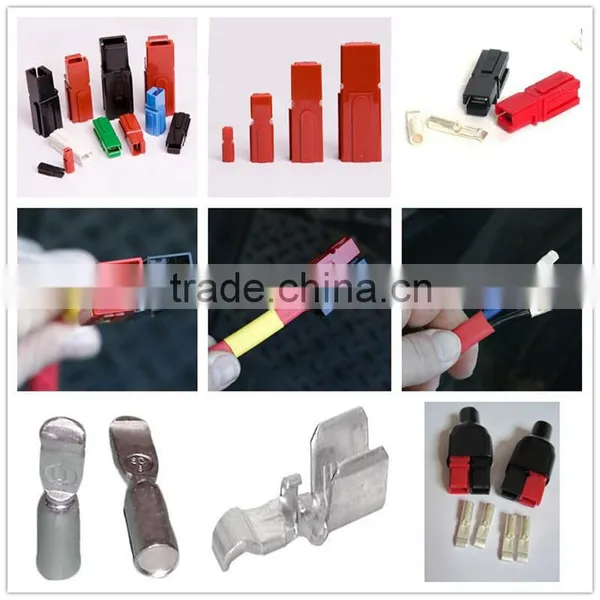

Details picture

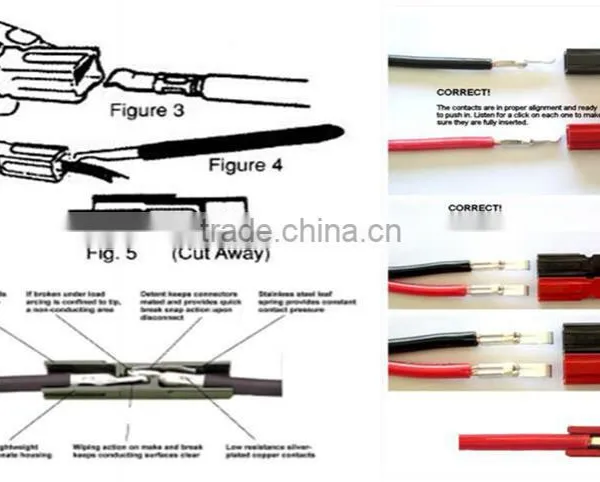

Installation
Terminal Size
Packing and shipping
Shipment method: FOB shanghai by sea or deliver through express by Fedex,TNT,DHL,UPS etc.
Packaging Detasil: Bubbles wrap over products,outer with strong heavy carboard carton.
