Specifications
agricultural roller chains for S195,Special match for SIFANG power tiller 12-72013.

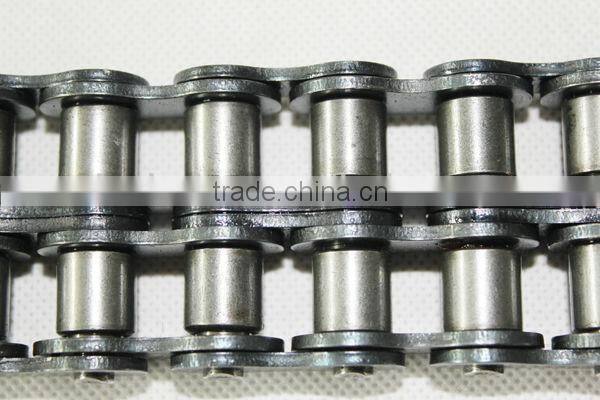

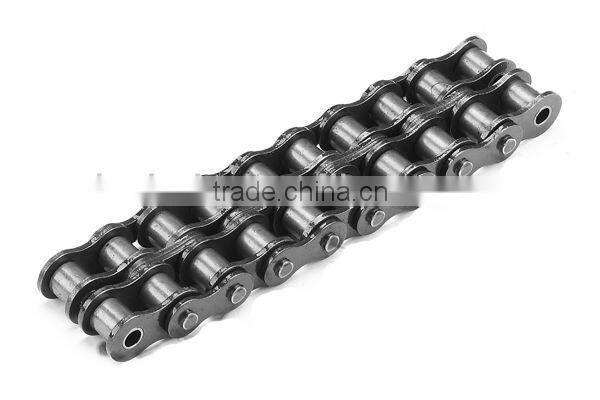

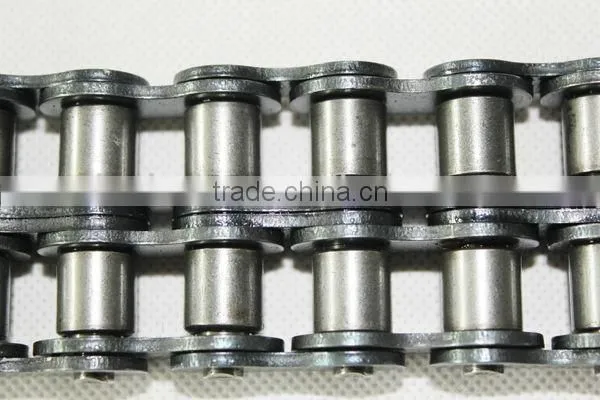

roller chains for power tiller
we supply the roller chain special for SIFANG power tiller for many years, the part no. is 12-72013.
For a good quality agricultural chain, must have several feature, then the quality can be approved , such as small and average chain plate gap, roller length, gap between bush and pin, chain plate color, heat-treatment, bright area percentage of inner hole of plate, lubrication etc, Dongsheng aim at those quality improvement program at all the time and spare no efforts to be the top grade Agricultural Chain Specialist and made it the most professional
1.material:40MN/A3
2.pitch:19.05mm
3.plate thickness:2.42mm
lor:natural.black.blue.yellow
5.has taken measures to better antirust
6.long-life duration and high strength
7.pre-stretched and anti-fatigue
8.sound quality,reasonable price and prompt delivery are what we persue
9.Packing:1pc packing in PP bag,white inner box, then pack in standard export carton or wooden case,also can packing as your requirement,can print your own logo
Specification:
| chain no. |
Pitch /mm |
roller diameter /mm |
width between inner plate /mm |
Pin diameter /mm |
Pin length(L) /mm |
Pin length (Lc) /mm |
Inner plate depth /mm |
Plate thickness /mm |
Transverse pitch |
U.T.S /KN |
A.T.S /KN |
Weight (/m) /KG |
Working Load /KN |
| 08B-2R | 12.7 | 8.51 | 7.75 | 4.45 | 31.2 | 32.2 | 11.8 | 1.6 | 13.92 | 32.0 | 38.7 | 1.34 | 6.4 |
Main products as the following:
1.Motorcycle Chains: 25H (04CH), 415, 415H, 420, 420H, 428, 428H, 520, 520H, 530, 530H, 05MA, 05MB, 05MC, 06MC
2. O-Ring Motorcycle chains: 428SO,520SO,525SO,530SO
3. Roller chains: A series and B series
4. Silent chains: SC3,SC4,SC5,SC6,SC8,SC10
5. PIV chains: A0,A1,A3,A4,A5,A6
6. O-ring chains and xw-chains: 420,428,520,525,530,630 (Racing Chains)
7. Leaf chains: LH series
8. Double pitch conveyor chains with attachments: 2040,2050,2060,2080
9. Nickel-plated chains: 25NP,35NP,41NP,40NP,50NP
10. Coupling chains
The Chain technic treatment is as below:
1.Shot peening
2.Bluing
3.Phosphating
4.Nickel-plated
5.Zincing
6.Heat treatment
7.Carburizing
8.Quenching
9.Tempering
10.Oiling
11.Greasing
