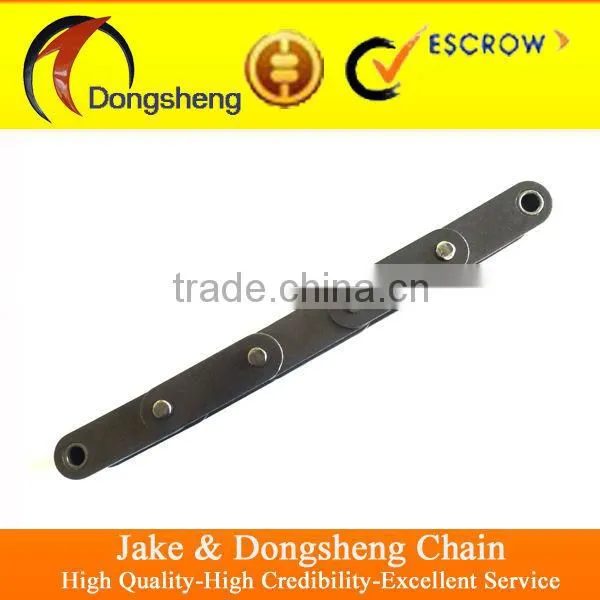

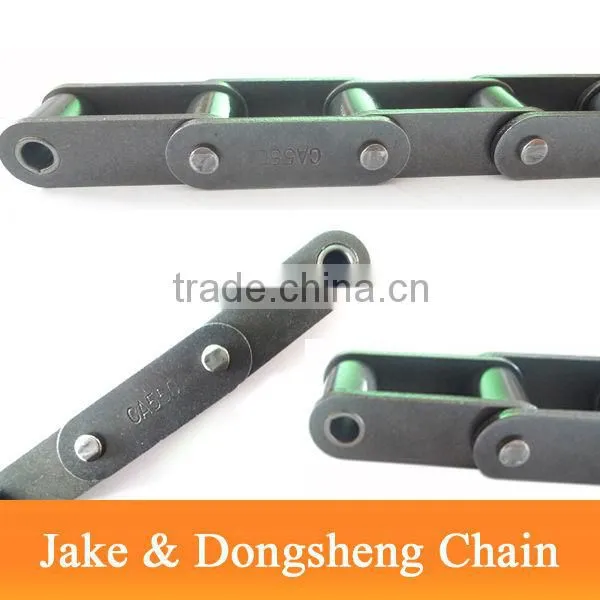

Chain CA550 for Agriculture Machine
- Ningbo
- T/T D/P D/A Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Type | Roller Chain | |
| Material | Other, alloy--40MN, 40MN | Tensile Strength | 51.2KN | |
| Place of Origin | Zhejiang, China | Brand Name | JAKE | |
| Model Number | CA550 |
1pc packing in PP bag,white inner box, then pack in standard export carton or wooden case,also can packing as your requirement
Product Description
Specifications
1.Material:40MN2.Pitch:41.40mm
3.Plate Thickness:2.80mm
2.Pitch:41.40mm
3.Plate Thickness:2.80mm
4.Has taken measures to better antirust
| chain no. | CA550 |
| Pitch (mm) | 41.40 |
| roller diameter (mm) | 16.87 |
| width between inner plate (mm) | 19.81 |
| Pin diameter (mm) | 7.190 |
| Pin length(L) (mm) | 35.00 |
| Pin length(Lc) (mm) | 38.00 |
| Inner plate depth (mm) | 19.30 |
| Plate thickness (mm) | 2.800 |
| U.T.S (kn) | 39.10/8868 |
| A.T.S (kn) | 51.20 |
| Weight/m (kg) | 1.940 |
1.Motorcycle Chains: 25H (04CH), 415, 415H, 420, 420H, 428, 428H, 520, 520H, 530, 530H, 05MA,05MB, 05MC, 06MC
2. O-Ring Motorcycle chains: 428SO,520SO,525SO,530SO
3. Roller chains: A series and B series
4. Silent chains: SC3,SC4,SC5,SC6,SC8,SC10
5. PIV chains: A0,A1,A3,A4,A5,A6
6. O-ring chains and xw-chains: 420,428,520,525,530,630 (Racing Chains)
7. Leaf chains: LH series
8. Double pitch conveyor chains with attachments: 2040,2050,2060,2080
9. Nickel-plated chains: 25NP,35NP,41NP,40NP,50NP
10. Coupling chains
11.Bicycle chain:408,410,415
12.Stainless steel chain
The Chain technic treatment is as below:
1.Shot peening
2.Bluing
3.Phosphating
4.Nickel-plated
5.Zincing
6.Heat treatment
7.Carburizing
8.Quenching
9.Tempering
10.Oiling
11.Greasing
Company Profile
Jake Import and Export Co., Ltd was founded as the international trade department of ZheJiang DongSheng Chain Co.,Ltd. At the basis of its self-managed projects of roller chain,including agriculture machinery chain,industrial chain,conveyor chain,motorcycle accessories,bicycle chain and spocket etc. We have combined the advantage of low factory price,stable quality performance with professional trade skill to realize Industry and trade integration. Now Jake has a professional sales team of 20 staff and a complete customer service system.Workers are specially assigned for each process of order,production arrangement,producing progress,quality control,product inspection,customs declaration and logistics. All in all,Jake is a realiable business partner.Both the factory and sales company in domestic and foreign market are approved by the field authentication fo INTERTEK in 2011.
