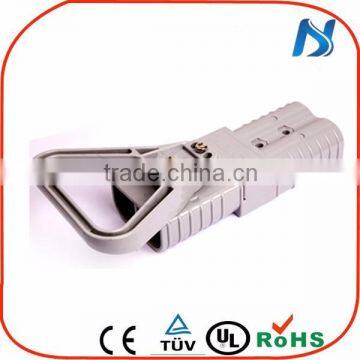

Help CenterQuick 2 Pin Battery Connector CUL Approved Sc50 50A 600V With Gray Housing
Related Products
-
Quick Connect/Disconnect Connector(50amp,175amp,350amp)US$ 0.85 - 7.9MOQ: 1 Piece -
Electric Winch Quick Connector(50A/175A 600V)US$ 0.85 - 7.9MOQ: 1 Piece
-
350A 600V Storage Battery Terminal ConnectorUS$ 0.85 - 7.9MOQ: 1 Piece
-
SB50,SB175,SB350 Car Battery Connector /2 Pin Male Connector/quick Disconnect TerminalUS$ 0.85 - 7.9MOQ: 1 Piece
-
175A 600V Battery Quick Connect Wire Harness Plug ConnectorUS$ 0.85 - 7.9MOQ: 1 Piece
600v Powerpole Quick Disconnect Connector Plug 50/175/350A supply battery terminal connector/ev charging connector
Product Features
Rating Current:50/175/350A
Rating Voltage:600V
Specification:
1.Silver-plated contact
2.Different contact barrel size for choice(10/12AWG,8AWG,6AWG,4AWG,2AWG,1AWG,1/0AWG,2/0AWG,3/0AWG,4/0AWG e.g.)
to reduce the stocking
4.Difference color recommended different voltage code
5.Quick connect/disconnect
6.Operating temperature: -20°C ~ +105°C
7.Withstand voltage:2200V
8.Mechanical life: 10000 times
Standards
ISO International International Standardization Organization
UL USA U.S. safety standard certification
ROHS EU Restriction of Hazardous Substances
|
SC50 |
SC175 |
SC350 |
UL Rating Voltage |
50amps/600vdc |
175amps/600vdc |
350amps/600vdc |
Rating Current |
50amps on 6awg wire produces 30°C rise |
175amps on 1/0awg wire produces 30°C rise |
350amps on 750mcm wire produces 35°C rise |
|
Maximum Wire Insulation Diameter |
0.44"/11mm |
0.75"/19mm |
1.10"/28mm |
|
average terminal holding force |
About 50lbs |
About 300lbs |
About 500lbs |
|
average contact resistance |
With 11/4" (32mm) of 6awg wire 200 micro-ohms |
With 13/4" (45mm) of 1/0awg wire 100 micro-ohms |
With 21/2" (64mm) of 300mcm wire 50 micro-ohms |
average insertion force |
15lbs (6.75kg) |
25lbs (11.25kg) |
30lbs (13.50kg) |
Adapt type : SC50/175/350
Our Advantage:
1.The products series completely,from multi pole to single pole,from low amps to high amps
2.Different color housing is available
3.Different contact barrel size for choice
4.International approvals(UL,CE,ROHS)
5.Competitive price
6.Prompt Delivery time(7-10 days)
7.Guaranteed quality
8.OEM order is acceptable
Detailed pictures
Installation
Terminal Size
Packing and shipping
Shipment:FOB shanghai,by sea,by air.Fedex,TNT,DHL,UPS
Packaging Details: bubbles wrap over products.strong heavy carboard carton.
