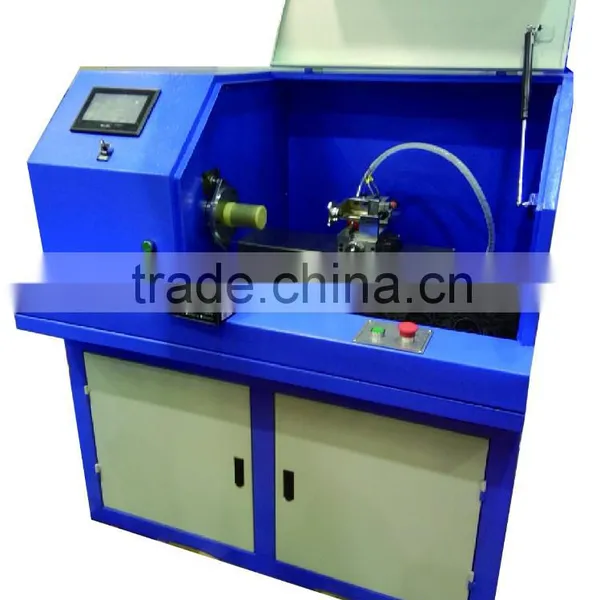

Help CenterVacuum Automatic Rubber Sleeve Slitting Machine
Related Products
-
Vacuum Automatic Rubber o Ring Trimming MachineUS$ 1 - 9,999MOQ: 1 Set -
Vacuum Automatic Vertical and Horizontal Type 3 Knife Rubber Trimming Machine/rubber Trinning ToolUS$ 1 - 9,999MOQ: 1 Set
-
Nanjing Mixer Vacuum Automatic Rubber Edge Separating/cutting/trimming MachineUS$ 1 - 9,999MOQ: 1 Set
-
Vacuum Automatic Rubber Cup Trimming and Deflashing MachineUS$ 1 - 9,999MOQ: 1 Set
-
Vacuum Automatic Rubber Deflashing MachineUS$ 1 - 9,999MOQ: 1 Set
Application:

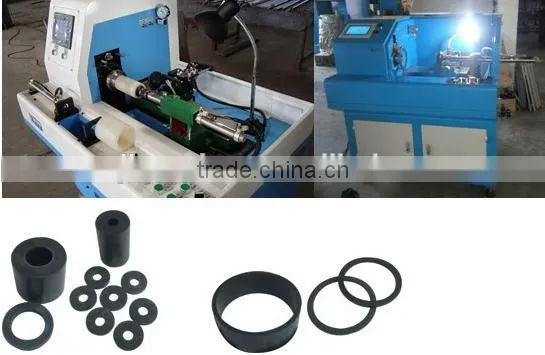

Fast cut of all kinds of rubber, silicone gaskets/ washer, ring-shaped tubular products.
Features:
1. When the cut is finished, materials take off automatically, and through the collection boxes to gather the cut products.
2. Vacuum absorption of the cut product, so ensuring the finished product more precise.
3. Automatic air blowing function makes loading and unloading more convenient, greatly improve the product cutting efficiency;
4. Using color LCD touch screen control, operation is simple.
5. All electrical components,pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.
6. According to customer requirements,choose to install a round blade or strip blade, ensuring cost saving on the blade.

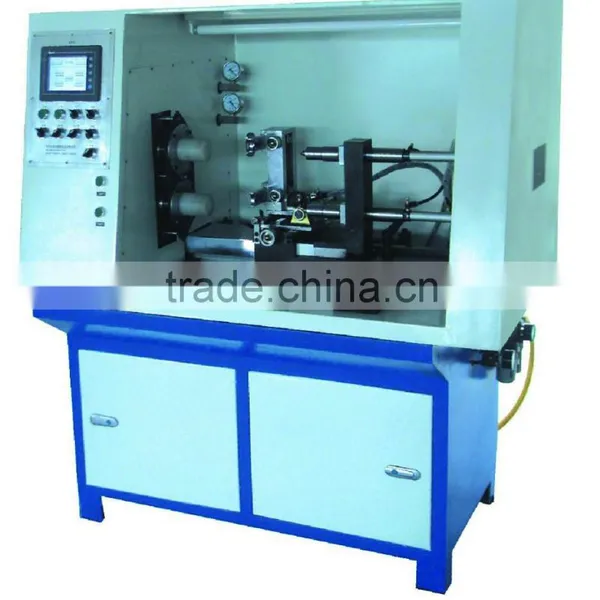

7.There are single shaft,double shafts,4 shafts for options.
Main technical data:
Model |
JCM200-1 |
JCM200-2 |
cutting efficiency |
≥60 times /min |
≥60 times /min |
Working rotation speed |
0-3000rpm |
0-3000rpm |
Cut precision |
≤±0.05 mm |
≤±0.05 mm |
Cut range |
(1) Rubber diameter: Φ 10-150mm (2Cut length (standard):≤140mm; Lengthened type ≤350 (3)Rubber wall thickness: ≤ 18mm |
(1) Rubber diameter: Φ10-150mm (2Cut length (standard):≤140mm; Lengthened type ≤ 350 (3)Rubber wall thickness: ≤ 20mm |
Specification of blade |
1.Round disc blade:Φ60* Φ25.4x0.3 2.Strip shape 3x3x60mm |
1.Round disc blade: Φ60* Φ25.4x0.3 2.Strip shape 3x3x60mm |
consumption of compressed air |
20L/min |
30L/min |
Air pressure |
0.5Mpa-0.8Mpa |
0.5Mpa-0.8Mpa |
Vacuum degree |
≤ -0.035Mpa |
≤-0.035Mpa |
Power source |
AC220V±5% |
AC220V±5% |
Total power |
1.4 KW |
3 KW |
Total weight |
280kg |
550kg |
Dimension |
1200x800x1210mm |
1600x900x1650mm |
