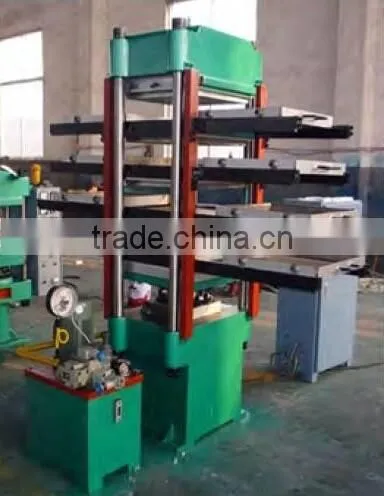

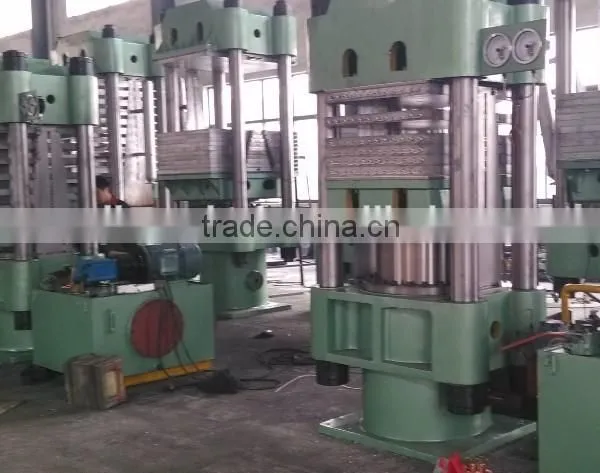

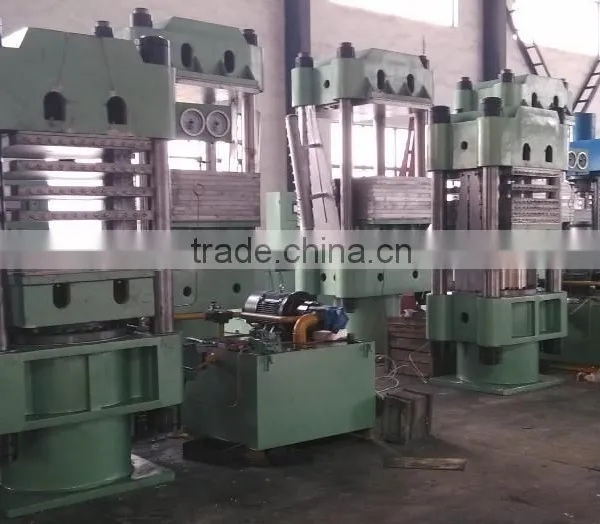

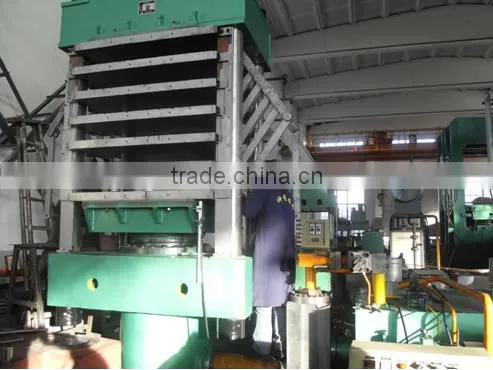

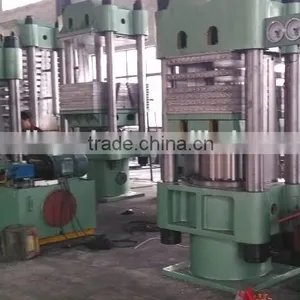

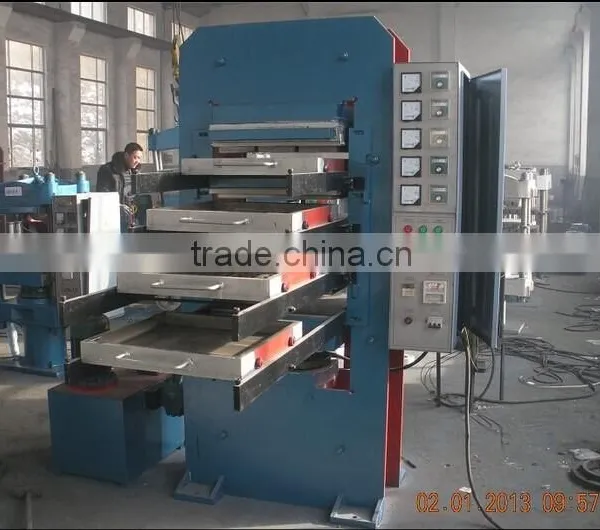

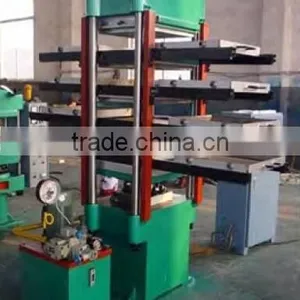

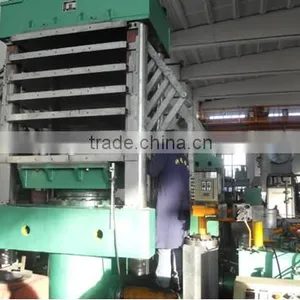

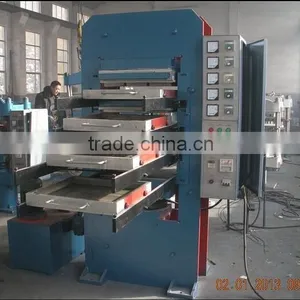

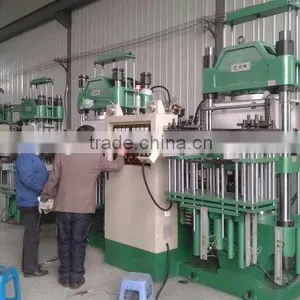

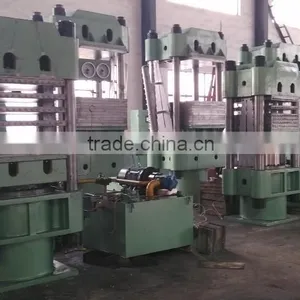

Tyre Vulcanizing Machine/tire Vulcanizer/vulcanizing Rubber Press

FOB Price

US$ 1 - 99,999 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	MIXER	Model Number	Q1066x1066x1
Voltage	220V/380V/415V/440V	Power(W)	22.5KW
Dimension(LWH)	1820x1066x3760	Weight	30 Ton
Certification	CE,ISO	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Solid tyre hydaulic press/Vulcanizing machine for solid tire/Soild tire press machine :

Application: for various kinds of soild rubber tires.

Specification

Technical parameter

Model	Q812x812x2	Q900x900x1	Q1066x1066x1	Q1200x1200x1	Q1500x1500x1
Name	Solid tire press	Solid tire press	Solid tire press	Solid tire press	Solid tire press
Nominal clamping force (MN)	2.5	5.0	7.5	6.0	12.0
Plate size(MM)	812x812	900x900	1066x1066	1200x1200	1500x1500
Unit pressure of the plate(Mpa)	3.8	6.2	6.6	4.2	5.3
Dayligh opening(MM)	775	736	832	520	520
Layers	2	1	1	2	2
Max.piston stroke(MM)	965	736	863	600	600
Plunger diameter(MM)	500	650	600	650	900
Work hydraulic pressure(Mpa)	13	15	15	18	19
Max.steam pressure(Mpa)	0.8	0.8	0.8	0.8	0.8
Motor power(KW)	7.5	13	22.5	13	26
Dimension(MM)	1340x812x4110	1500x900x3310	1820x1066x3760	2200x1400x44000	2520x1500x51100
Weight(T)	12	19	30	20	44
