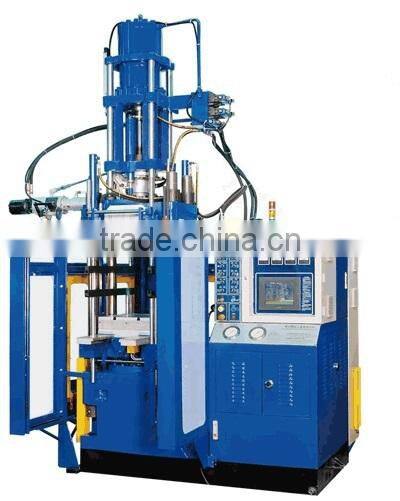

Rubber Vulcanization Molding Press Machine
US$ 1 - 99,999
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Money Gram Credit Card
You May Like
-
Hydraulic Rubber Mat Vulcanizing Press/vulcanization Machine
-
Conveyor Vulcanizing Machine/rubber Continuous Vulcanizing Line
-
Nanjing Mixer Vacuum Platen Vulcanizing Machine/press
-
Frame Type Rubber Vulcanizing Machine/rubber Mat Press Machine/forklift Tire Press
-
Tire Curing Press/tire Press Machine/forklift Tire Press
-
Vacuum Compression Molding Machine
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | MIXER | Model Number | JC-RH200 | |
| Voltage | 220V/380V/415V/440V | Power(W) | 11KW | |
| Dimension(L*W*H) | 2275x2095x3715 | Weight | 6500 | |
| Certification | CE,ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
rubber vulcanization molding machine/rubber press machine/rubber vulcanizing press
APPLICATIONS: Ideal for the production of natural &synthetic rubber,oil & heat resistant rubber, and reclaimed rubber.
- Low bed structure
- Equipped with standard PLC controller
- Patented anti-spill device
- Patented material feeding device
- Custom specifications are available
Specification
Model | JC-RH50-250CC | JC-RH65-250CC | JC-RH200-1000CC(A) | JC-RH200-1000CC(B) | JC-RH260-1500CC | JC-RH300(A) | JC-RH300(B) | |
Shot Voolume | C.C | 300 | 300 | (1000)~1500 | (1000)~1500 | (1500)~2000 | (2000)~3000 | (2000)~3000 |
Injection pressure | Kg/cm2 | 1700-1800 | 1700-1800 | 1700-1800 | 1700-1800 | 1700-1800 | 1700-1800 | 1700-1800 |
Lnjection Hydraulic pressure | Kg/cm2 | 150 | 150 | 150-160 | 150-160 | 150-160 | 150-160 | 150-160 |
Screw Diameter | mm | 32 | 32 | 45 | 45 | 45 | 50 | 50 |
Screw Speed | Rpm/min | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 |
Material Size | mm | 10×30 | 10×30 | 12×50 | 12×50 | 12×50 | 15×60 | 15×60 |
Clamping Force | TON | 60 | 60 | 200 | 200 | 260 | 300 | 300 |
Piston Stroke | mm | 360 | 370 | 460 | 460 | 580 | 510 | 510 |
Plate Size | mm | 350×380 | 290×320 | 480×500 | 550×620 | 520×580 | 650×730 | 550×650 |
Space Between Tie Bar | mm | 445 | 390 | 575 | 675 | 645 | 790 | 690 |
Piston Diameter | mm | 180 | 200 | 356 | 356 | 406 | 430 | 430 |
Motor | kw | 5.5 | 5.5 | 11 | 11 | 15 | 18.5 | 18.5 |
Heating Capacity | kw | 7.2 | 7.2 | 13.6 | 13.6 | 16 | 19 | 18 |
Thermal Oil Pump | hp | 1/2×1 | 1/2×1 | 1/2×2 | 1/2×2 | 1/2×2 | 1/2×2 | 1/2×2 |
System Pressure | Kg/cm2 | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
Machine Dimensions | mm | 2275×1705 ×2900 | 2135×1240 ×2870 | 3610×2000 ×3730 | 2275×2095 ×3715 | 2750×2130 ×3780 | 2900×2355 ×4400 | 3000×2345 ×4470 |
Machine Weight | kg | 2300 | 2200 | 5800 | 6500 | 6800 | 8500 | 7500 |
Model | JC-RH400 | JC-RH500 | JC-Rl400-2000CC | JC-Rl580-3000CC | JC-Rl700-5000CC | |
Shot Voolume | C.C | (3000)~5000 | (3000)~7000 | (2000)~3000 | (3000)~5000 | (5000)~10000 |
Injection pressure | Kg/cm2 | 1700-1800 | 1700-1800 | 1700-1800 | 1700-1800 | 1700-1800 |
Lnjection Hydraulic pressure | Kg/cm2 | 150-160 | 150-160 | 150-160 | 150-160 | 150-160 |
Screw Diameter | mm | 50 | 50 | 50 | 50 | 50 |
Screw Speed | Rpm/min | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 |
Material Size | mm | 15×60 | 15×60 | 15×60 | 15×60 | 15×60 |
Clamping Force | TON | 400 | 500 | 400 | 580 | 700 |
Piston Stroke | mm | 510 | 580 | 650 | 650 | 700 |
Plate Size | mm | 750×800 | 750×850 | 600×650 | 700×720 | 750×900 |
Space Between Tie Bar | mm | 930 | 915 | 680 | 805 | 910 |
Piston Diameter | mm | 500 | 560 | 495 | 600 | 657 |
Motor | kw | 18.5 | 22 | 18.5 | 22 | 37 |
Heating Capacity | kw | 19.6 | 22 | 19.6 | 23.2 | 30.4 |
Thermal Oil Pump | hp | 1/2×2 | 1/2×2 | 1/2×2 | 1/2×2 | 1/2×2 |
System pressure | Kg/cm2 | 210 | 210 | 210 | 210 | 210 |
Machine Dimensions | mm | 3075×2575 ×4470 | 3120×2575×54 | 2885×2275×4350 | 3020×2422×4335 | 3200×2465×5100 |
Machine Weight | kg | 8500 | 9500 | 7800 | 10500 | 14000 |
