Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Cylinder Cap Girth Welding Machine With MIG Welder

Cylinder Cap Girth Welding Machine With MIG Welder

Name: Cylinder Cap Girth Welding Machine With MIG Welder
Brand: Boxline
SKU: 129274663
Availability: InStock

Cylinder Cap Girth Welding Machine With MIG Welder thumbnail-1

Cylinder Cap Girth Welding Machine With MIG Welder photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Boxline

Model Number:

BLWM-003

Contact Supplier Request Quote Chat Now

Shijiazhuang Boxline Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name Boxline

Model Number BLWM-003

Voltage 400V(can be customized)

Current 32A(can be customized)

Rated Capacity 60A

Rated Duty Cycle N/A

Dimensions customized

Weight 300kg

Usage welding

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

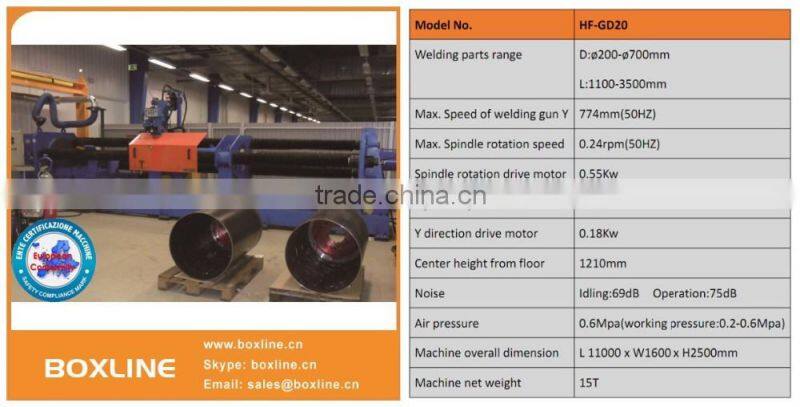

Cylinder Cap Girth Welding Machine with MIG Welder

Production Logistics Solutions From Analysis to Installation

Product Description

Outer end cap and cylinder barrel girth automatic welding machine --- This equipment is used for welding the girth between cylinder and spring chassis girth . The welding trace is a circular-ring curve. This machine adopts the SAM welding process method. The transportation and reclamation of flux can be automatically achieved.

There have two hydraulic brackets adopted to control the up and down movement of the workpieces.

The spring can be compressed by the hydraulic pushing mechanism . Through the operation of the man machine interface , the pushing pressure can be adjusted to different size of workpieces.

The welding current can be transmitted to the welding power by rotation conductive device. The PLC can control the operation of the whole equipment with auto and manual modes . The welding parameters can be set by the man machine interface .

Major electrical elements with high performance and good quality are chosen to use from Siemens company including PLC, Inverter, contactor etc.
