Experimental Pasteurizer

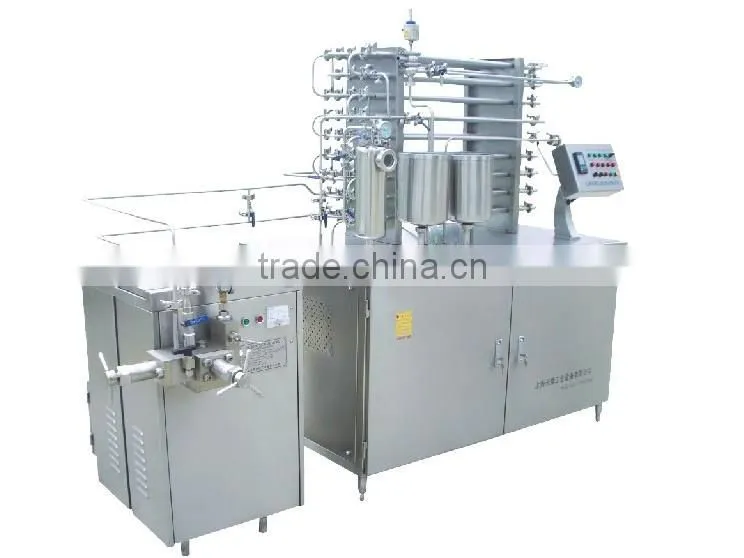

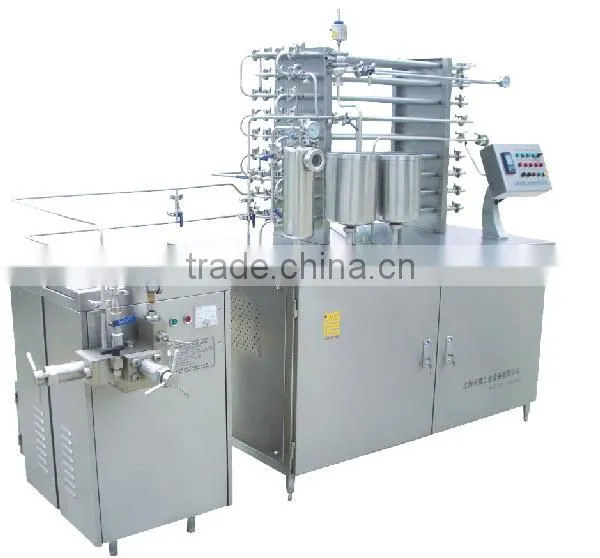

EXPERIMENTAL TYPE STERILIZER UNIT

Features

Adjustable flow rate:1)Through serial connection with the homogenizer, frequency conversion control to the flow rate of the homogenizer can be realized:Semi quantity or full quantity (steples speed adjustment) 2)Under the condition of no serial connection with the homogenizer, the flow rate can be controlled through adjusting diaphragm valve.

Adjustable temperature: Input temperature requirements and the sterilizing temperature can be automatically adjusted by PLC, which is adjustable within the range of 63-140.

Applicable to different varieties: Through numerous desings, it can satisfy pulp, jam and liquid materials containing granules.

Bench scale experiment: It can satisfy bench scale experiment of 3-5L, which can save the experimental cost to the maximum extent (the equipment memory is 1.5L).

Working environment :The equipment is provided with 8kw power without the need of additional power supply.

Standard accessories: homogenizer 120L/h 60Mpa,3000kw ice water machine unit

Optional :yoghourt fermenting tank, aseptic canning operation desk.

Brief introduction:

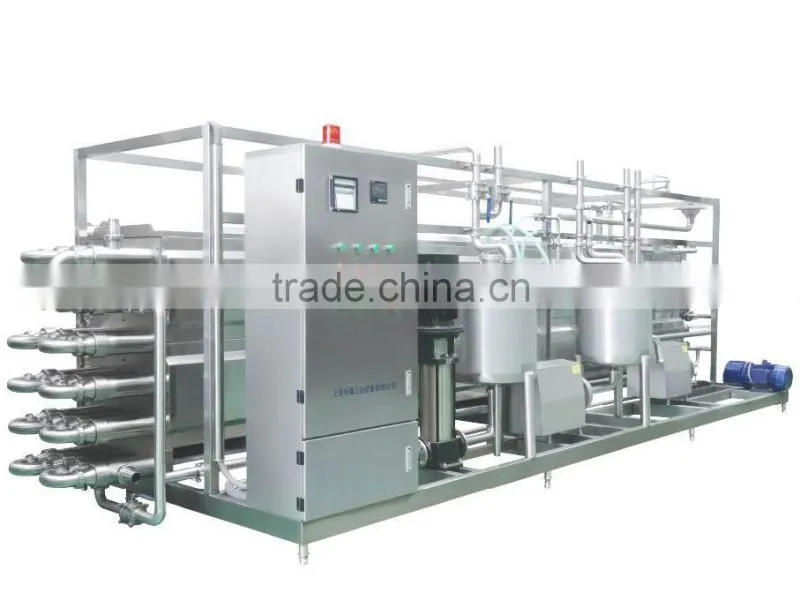

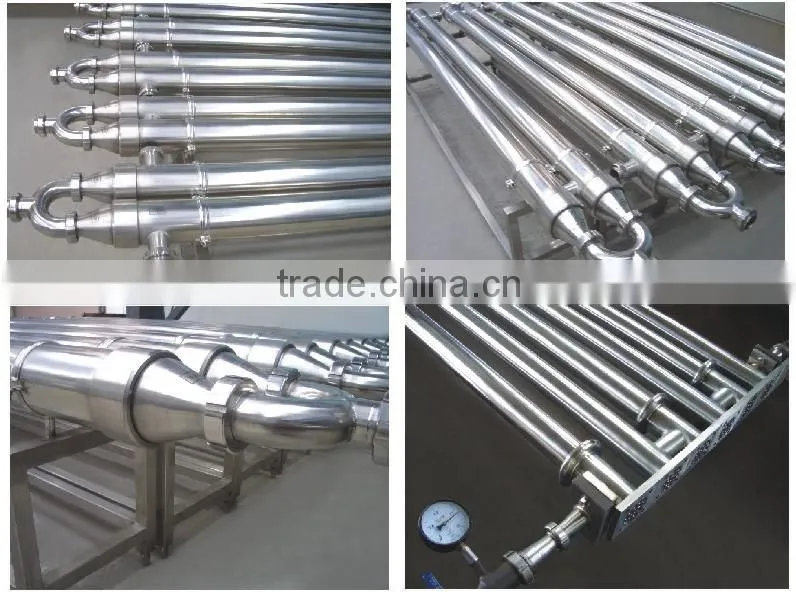

The experimental type sterilizer unit is a tubular sterilizer unit specially designed to obtain test data for the laboratory. Integrating heating, sterilization, cooling and heat recovery,it fully simulates the actual production situation of the workshop and truly reflects the production data for the laboratory. The sterilizer unit is provided with pasteurization, high temperature instant sterilization and ultra-high temperature sterilization, which can realize the aseptic status if equipped with aseptic canning (or aseptic sampling valve).

Applicable products:

It is applicable to fruit juice containing pulp with granules under 3mm, jam, soy milk, chocolate milk, cocomilk, condensed milk, thin cream, milk lactobacillus, beverage and other similar heat sensitive materials. It can satisfy CIP cleaning for the equipment.

The equipment is provided with touch screen and PLC programmable logic controller, which can dynamically reflect all parameters such an temperature and flow rate of products with simple and flexible operation

Production capacity

Pasteurization: 30~100L/h 5℃-10℃→65℃(Homogeneous)→85℃~95℃15S→5-43℃

High temperature instant sterilization:100L/h 5℃-10℃→65℃(Homogeneous) →120℃15S→5℃

Ultra-high temperature sterilization(UHT): 30~50L/h 5℃-10℃→65℃(Homogeneous) →140℃4S→25℃

Technical Parameter

Established in 1996,Shanghai Changlong Lndustrial Equipment Co.,Ltd. is an enterprise specialized in designing and researching various series of plate type(tubular) heatexchangers,plate type (tubular) whole set sterilizer units, ice cream shole set equipment, concentrators,degassing units,tanks and vessels etc,.providing achain of services including design,manufacturing,installation,commissioning and training etc.for the equipment and projects.Thanks to its richexperience in the production of heat exchangers and sterilizers,the company has become a leader in the industry of heatexchangers and sterilizers.The products are widely applied indairy, fruit beverage,brewage,chemical industry,electricpower and agriculture etc.Industries.

Shanghai Changlong Industrial Equipment Co.,Ltd.has many designers specialized in the application of heat exchangers and sterilizers,invites experienced experts from dairy industry as technical consultants and employs professiona engineers to design the series units, so as to guarantee safe and reliabgle operation of the equipement.

The feeding pump automatic control device of the sterilizer,the nozzle device of the degasser and the heat exchange stheet designed by the company have been granted nationalpatents.The registered trademarks approved by State Administration for Industry & Commerce have been applied in 45 industries,and under the approval of China Council for the Promotion of International Trade,they have been success fully registered in Russia and Japan etc. Countries.

Changlong products have passed the inspection by National Quality Supervision and Inspection Center,and the product quality is guaranteed due to strict implementation of ISO9001:2000 international quality management system.Some products have been awarded Technical Results Transformation Prize fo Shanghai and New Product PLan Prize of Shanghai.Now Changlong Enterprise has become a high-tech enterprise.

Changlong products not only enjoy high reputation in the country,but also have been exported to Germany,Japan,Australia,Russia,Southeast Asia and Mid East untries and areas.It has also established Australia Changlong Company in Australia,Which has made it more convenient and prompt to push domestic products to the world.
