Specifications
BF6L913C Deutz Engine1.50/60Hz
2.1500-2560 rpm
3.warranty 1.5year
4.Industry and Machanical

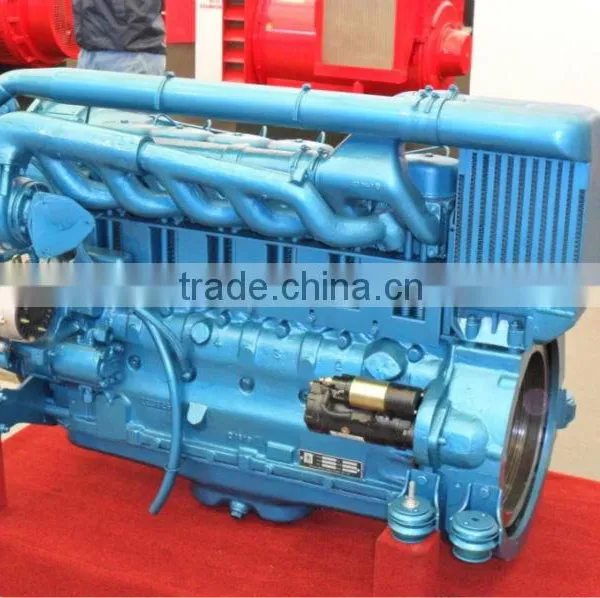

Deutz BF6L913C Engine 141kw Guangzhou
1500rpm-2500rpm
102/125 mm Bore * Stroke
offset 6.128 l
141kw/2500rpm Specification
Working Sequence 1-5-3-6-2-4
Cooling Method Air cooling
rotative moment(torque) 690 N.m.
Compression Ratio 18
Net weight 510kg
Overall Dimension 1134*711*990mm
Capacity oil sump 14--20
The air flow of the combustion air (m3/min) 7.18
Supply of exhaust gas (m3/min) 7,39
Net weight 510kg
Overall Dimension 1134*711*990mm
| Performance Parameter | Max. Power of Diesel Engine (kw/bhp) | 118KW |
| Rated Speed of Diesel Engine (r/min) | 1500-2500 |
|
| Max. Torque of Diesel Engine (n.m) | 490 | |
| Max. Speed of Diesel Engine (r/min) | 1700r/min | |
Emission |
EPO2 | |
| Structural Parameter | Model of Diesel Engine | BF6L913 |
| Number of Cylinders | 6 | |
| Intake System | Supercharging | |
| Discharge Capacity | 6.128L |
|
| Cylinder Diameter and Stroke (mm) | 102*125 |
|
| Ignition Order | 1-5-3-6-2-4 | |
| Coolant | Air | |
| Injection Mode | Direct Injection | |
| Compression Ratio | 18:1 | |
| Rotation Direction | Clockwise (From Fan End) | |
| Power Output | Flywheel | |
| Net Weight (kg) | 485 | |
| Length (mm) | 1134 | |
| Width (mm) | 711 | |
| Height (mm) | 919 | |
| 1. Final size depends on complete engine specification. 2. It is only an estimate, without the weight of fan driving device, flywheel, flywheel casing and starting motor. | ||
Model Deutz F6L413F
Deutz F6L413F Induction system Naturally aspirated
Deutz F6L413F Numbers of Cylinder:6
Deutz F6L413F Type V type configruation 4-Stroke air-cooled direct injection
Deut F6L413F Displacement (L) 9.572
Deutz F6L413F Bore X Stroke (mm) 125x130
Deutz F6L413F Compression Ratio 17
Deutz F6L413F Direction of Rotation clockwise
Deutz F6L413F Speed (rpm) 2650
Deutz F6L413F Power (kw) 141
Deutz F6L413F Oil Consumption (g/kw.h) 216
Deutz F6L413F Idle Speed (rpm) 600
Deutz F6L413F Max Torque (N.m) 612N.m / 1600rpm
Deutz F6L413F Net Dry Weight (kg) 605
Deutz F6L413F verall Dimension (mm) 1047×1038×860
