Help CenterATLAS! QB60 High Quality Competitive Price Clean Water Pump
Related Products
-
Competitive Price!! 2 Inch High Quality Gasoline Pumps (CE)US$ 55 - 75MOQ: 1 Set -
Competitive Price!! 3 Inch WP30 High Quality Gasoline Pump (CE)US$ 55 - 75MOQ: 1 Set
-
Competitive Price!! 4 Inch WP40 High Quality Gasoline Pump (CE)US$ 45 - 75MOQ: 1 Set
-
Competitive Price!! 4 Inch WP40 High Quality Gasoline Fuel Pump (CE)US$ 60 - 75MOQ: 1 Set
-
Competitive Price!! 4 Inch WP40 High Quality Gasoline Water Pump (CE)US$ 60 - 75MOQ: 1 Set
Specifications
ATLAS QB60 Clean Water Pump1 High quality
2 excellent suction
3 reliable, safe
4 CE ,TUV and SONCAP

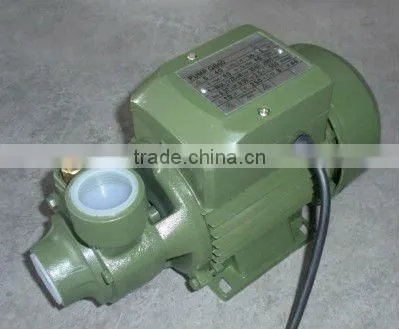

ATLAS QB60 High quality Competitive price Clean Water Pump
| SPECIFICATIONS |
| MODEL | POWER | MAX.FLOW l/min |
MAX.HEAD m |
SUCT m |
INLET/ OUTLET |
G.W kg |
PACKING DIMENSION cm |
|
| KW | HP | |||||||
| QB-60 | 0.37 | 0.5 | 35 | 35 | 9 | 1"x1" | 6 | 28.5x17x17.5 |
| QB-70 | 0.55 | 0.75 | 45 | 50 | 9 | 1"x1" | 10 | 32.5x18x21 |
| QB-80 | 0.75 | 1.00 | 50 | 55 | 9 | 1"x1" | 11 | 32.5x18x21 |
QB and Jet series are suitable for pumping clean water. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and increasing of water pressure.
MODEL |
Max. |
H.Max. |
Suct.Max. |
Power |
Volt. |
Freq. |
Speed |
Pump dia. |
Net |
Overall Dimension |
JET-60S |
46 |
35 |
9 |
460 |
220 |
50 |
2850 |
25X25 |
12.3 |
390x200x210 |
JET-80S |
48 |
40 |
9 |
600 |
220 |
50 |
2850 |
25X25 |
12.8 |
390x200x210 |
JET-100S |
50 |
45 |
9 |
750 |
220 |
50 |
2850 |
25X25 |
13.4 |
390x200x210 |
Pump body: Cast iron
Insulation class: B/F
Impeller: Brass
Protection class: IP44/IP54
Shaft: 45# steel/stainless steel
Motor with thermal protector
Mechanical seal: Stainless steel/Carbon-ceramic
