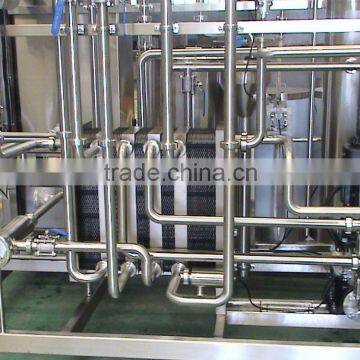

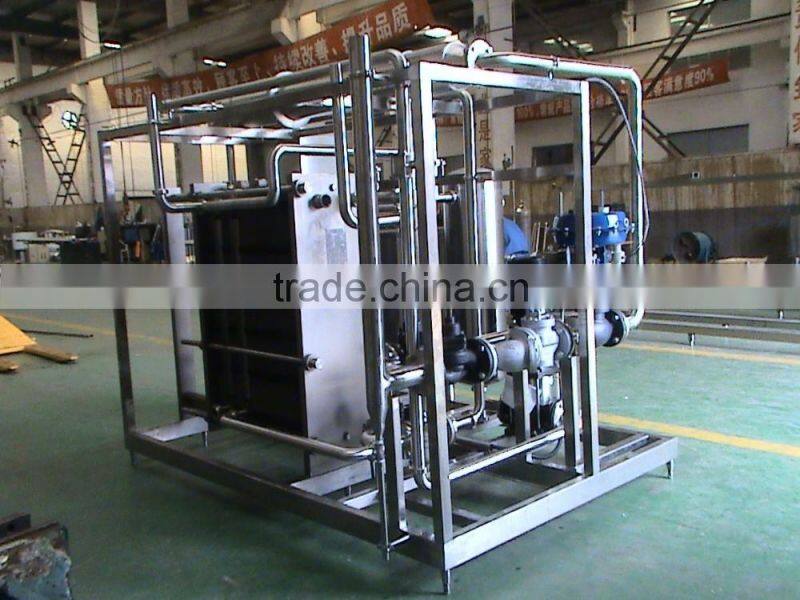

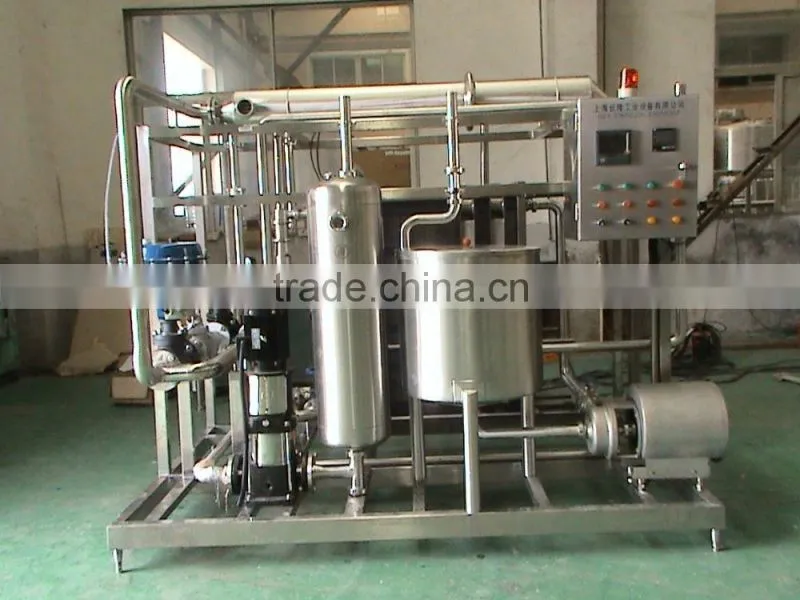

Aseptic Milk Sterilizer
- 10 Set / Sets per Month
- SHANGHAI PORT
- T/T
-
Professional pipe hydraulic pressure test equipment machine with automatic print test reports
-
manual and automatic type stainless steel centrifugal milk cream separator
-
manual and automatic type stainless steel milk cream separator machine
-
semi-automatic centrifugal Milk/dairy cream separator
-
automatic centrifugal Milk/dairy fat separator
-
automatic Milk/dairy Cream separator
Product Details
| Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | SHANGHAI CONLON |
| Model Number: | BR26-UHT-5000L | Usage: | Diary Product | Type: | Ultra High Temperature |
| Voltage: | 380V / 410V / 220V 50Hz/ 60Hz | Power(W): | 10kw | Weight: | 1.8t |
| Dimension(L*W*H): | 2000*1800*2000 | Certification: | CE ISO | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

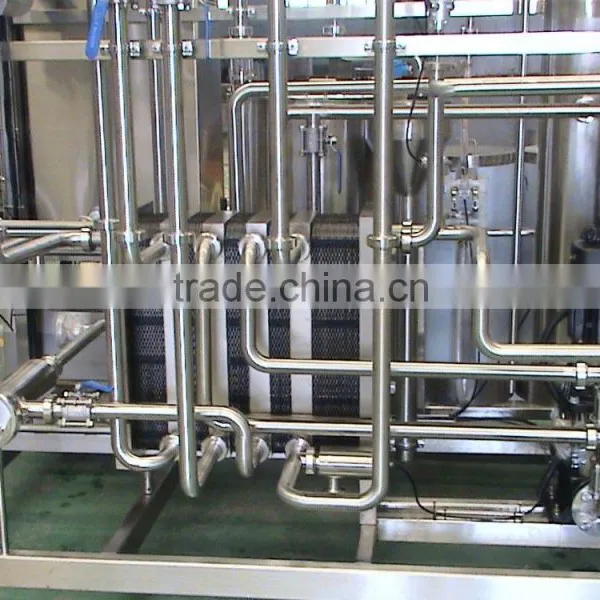

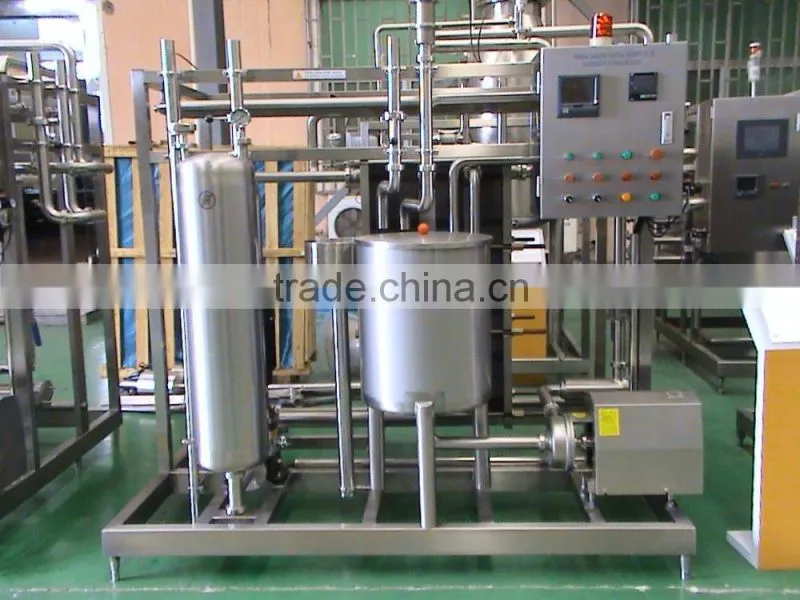

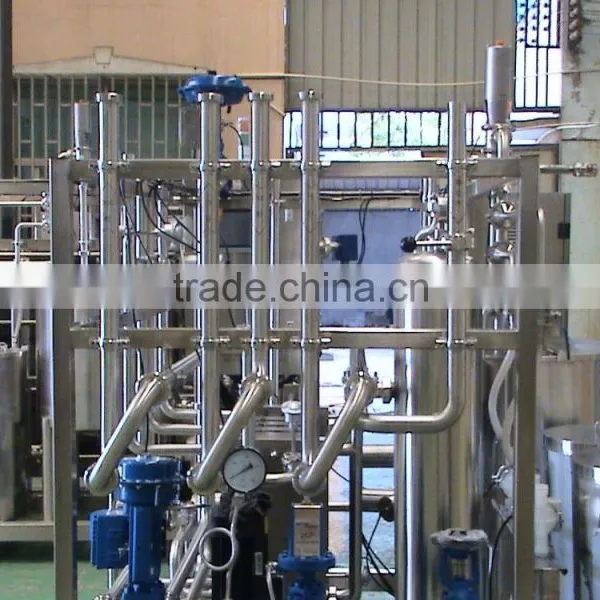

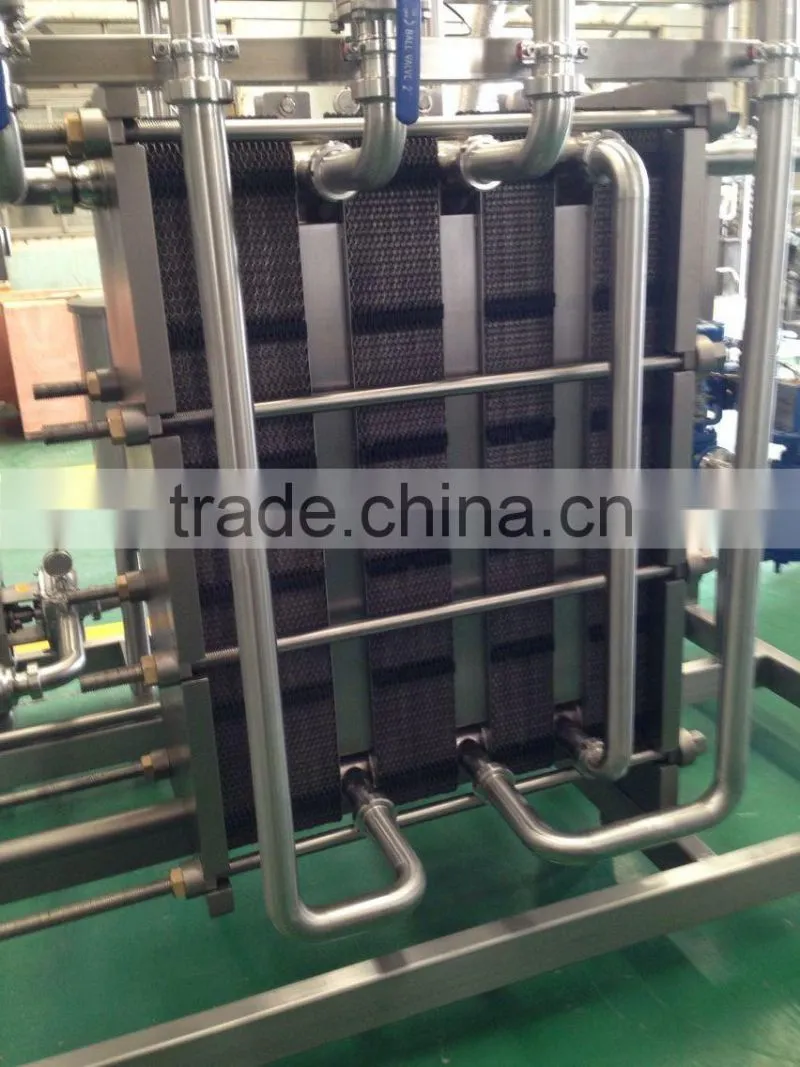

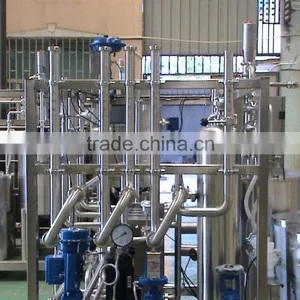

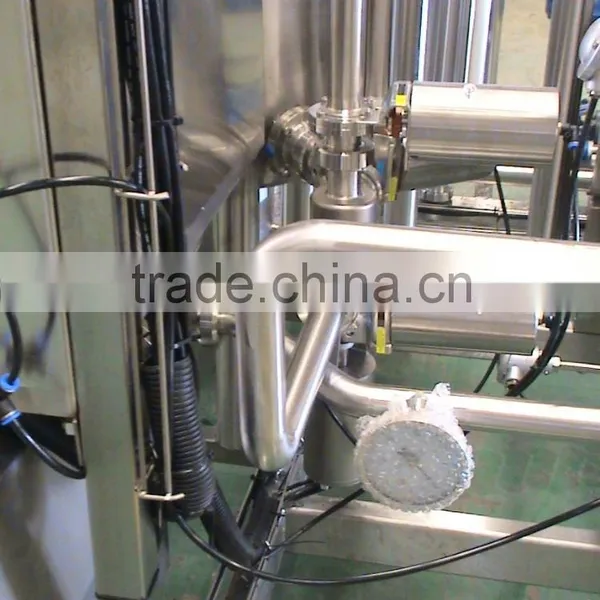

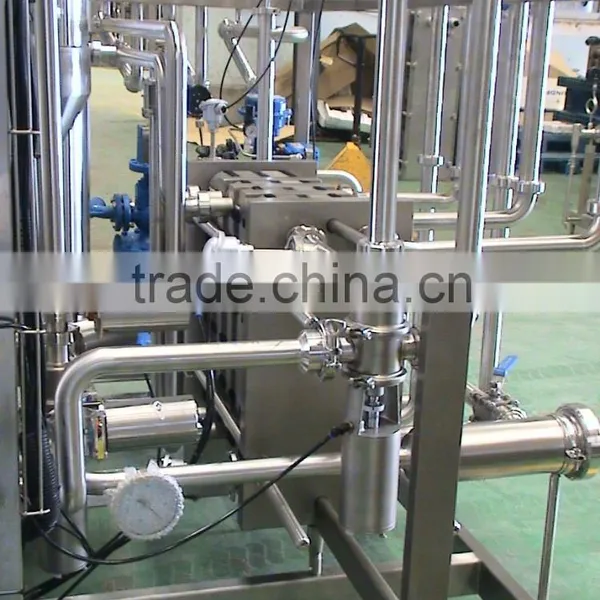

ULTRA-HIGH TEMPETATURE STERUILIZER(UHT)
Product description: production capacity:1~20 t/h.
With such features an high heat recovery, compact and beautiful structrue, stable temperature control etc.
Control methods: semi-automatic control, full-automatic control (PLC control, touch screen disnplay)
The system adopts ultra-high temperature processing method, which can strictly sterilize the dairy,tea beverage and fruit etc. and then transfe to aseptic packaging.The sterilizing temperature is 135~140℃ and the heat preservation period is 4~5 seconds, so an to maintain the original nutrition, color and flavor of beverage and dairy.
Technical Parameter
Name | BR16-UHT -10B | BR16- UHT -20B | BR26- UHT -28B | BR26- UHT -45B | BR26- UHT -85B | BR56- UHT -150B | |
Production capacity | t/h | 1 | 2 | 3 | 5 | 10 | 20 |
Heat exchanging area | m2 | 13 | 26 | 38 | 55 | 105 | 190 |
Temperature of material inlet | ℃ | 5 | 5 | 5 | 5 | 5 | 5 |
Temperature of material outlet | ℃ | 5 | 5 | 5 | 5 | 5 | 5 |
Sterilizing temperature | ℃ | 137 | 137 | 137 | 137 | 137 | 137 |
Heat preservation period | s | 4 | 4 | 4 | 4 | 4 | 4 |
Ice water temperature | ℃ | 1 | 1 | 1 | 1 | 1 | 1 |
Ice water consumption | multiple | 3 | 3 | 3 | 3 | 2 | 2 |
Hot water consumption | multiple | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
Steam pressure | Map | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 |
Connecting size | mm | 38 | 38 | 51 | 51 | 63 | 76 |
Outline dimension | mm | 1500*1500*1800 | 2200*2000*1800 | 2600*2000*2200 | 2800*2000*2200 | 3200*2000*2200 | 3800*2000*2200 |
Name | BR16-UHT -10B | BR16- UHT -20B | BR26- UHT -28B | BR26- UHT -45B | BR26- UHT -85B | BR56- UHT -150B | |
Production capacity | t/h | 1 | 2 | 3 | 5 | 10 | 20 |
Heat exchanging area | m2 | 13 | 26 | 38 | 55 | 105 | 190 |
Temperature of material inlet | ℃ | 5 | 5 | 5 | 5 | 5 | 5 |
Temperature of material outlet | ℃ | 5 | 5 | 5 | 5 | 5 | 5 |
Sterilizing temperature | ℃ | 137 | 137 | 137 | 137 | 137 | 137 |
Heat preservation period | s | 4 | 4 | 4 | 4 | 4 | 4 |
Ice water temperature | ℃ | 1 | 1 | 1 | 1 | 1 | 1 |
Ice water consumption | multiple | 3 | 3 | 3 | 3 | 2 | 2 |
Hot water consumption | multiple | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
Steam pressure | Map | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 | ≥0.6 |
Connecting size | mm | 38 | 38 | 51 | 51 | 63 | 76 |
Outline dimension | mm | 1500*1500*1800 | 2200*2000*1800 | 2600*2000*2200 | 2800*2000*2200 | 3200*2000*2200 | 3800*2000*2200 |
