ATS digital generator control panel generator for sale philippines

Specifications

generator
silent canopy low noise
pure copper stator& rotor
volts/frquency meters,AVR adjustment
electric start,ce,iso9001

ATS digital generator control panel generator for sale philippines

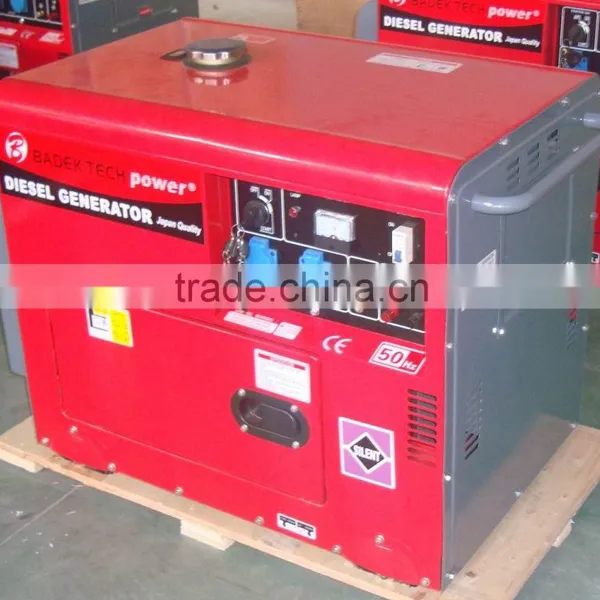

Advanced generator and soundproof generator
Single and three-phase engines are available
There are several intake pipings and exhaust pipings with high efficiency in noise reduction,
High power capability
It is suitable for 50Hz and 60Hz. The dimensions is decided by the power



Open and Soundproof generator

DIESEL GENERATORS
OPEN FRAME Series
Model	XDG2200/E	XDG3600/E	XDG5000/E	XDG6000/E-3
FOB Fuzhou port,China	200-300	USD200-300	USD300-350	USD300-400
Frame Type	Open Type	Open Type	Open Type	Open Type
Frequency(Hz)	50  /  60	50  /  60	50  /  60	50  /  60
Voltage(V)	110~240			220/380   110/190
Rated Power (kVA)	1.8 /  2.0	2.8  /  3.0	4.5 /  5.0	4.5 /  5.0
Max.powert(kVA)	2.0  / 2.2	3.0  /  3.3	5.0  /  5.5	5.0  /  5.5
Phase	Single			3-phase
Power factor	1.0	1.0	1.0	0.8
Diesel Engine Type	170F/FE	178F/FE	186F/FE	186F/FE
Max. Power Output (hp)	4.0HP	6.0HP	9.0HP	9.0HP
Diesel Engine Type	Air-cooled, 4-stroke,Vertical,Single-cylinder,  Direct injection combustion.
Bore*stroke(mm*mm)	70*55	78*62	86*70	86*70
Displacement (cc)	211	296	406	406
Compression rate	20:01	20:01	19:01	19:01
Ignition System	Explode Ignition
Lube oil system	Pressure splash Type
Starting System	Recoil or Electric
Lube oil capacity(L)	0.75	1.1	1.65	1.65
Fuel Tank Capacity(L)	12.5	12.5	12.5	12.5
Dimension(L*W*H)(mm)	630*475*560	700*475*580	720*490*620	720*490*620
N.W/G.W (kg)	60/65	78/83	91/96	9/96
20ft(set)	180	160	105	105





Shining Points:

• The lightest and smallest among the gensets with same outpout
• Full automatic generator protection system
• Special dual protection system
• Unique unloading system for stopping the generator
• Steady frequency-governing ratio ≤ 3%, complying with military standard
• Automatic Voltage Regulation for maintaining steady voltage
• Automatic transfer switching,remote monitoring, to realize guardless by human
• Low noise,only 70dB/7m
• New patent design,low inner housing temperature,stable output and good reliability

Features:

1. Comparing other generators with same output, it is of compact structure (1100*660*740mm), light weight (248kg)and reliable performance.



2. Adopting the technique of new patented design structure

Our company has adopted the technique of new-patented design structure to separate fully cold & heat wind passages in inner housing. It makes the generator output be no power drop for long-period operation.

The wind passage with special labyrinth design makes the generator be of lower noise.



3. Application of intelligent control panel

Our company has adopted new-type intelligent control panel, which facilitate the operation. The operator can know the real working condition of the generator from panel reading. There are more than ten protections of the generator in the panel, such as protections of frequency, voltage, current, low oil pressure, low fuel level, and electric fan adjusting the temperature automatically when inner-housing temperature over 60, and automatic unload before engine stopped each time etc. The diesel/water separator can ensure the fuel quality.



4. Application of automatic shifting switch (ATS)

Our company can fit ATS based on customer requirement, which can make the generator be automatic operation without the operator on the spot. When city power net breaks down, ATS can deliver the signal in shortest time to the generator for starting. When city power net is recovered, ATS can shift the power from the generator to city power net and the generator will be automatically stopped later.



5. Application of new-generation intelligent AVR

Our company has adopted new-generation intelligent AVR (automatic voltage-constant) to make the output voltage be steady.
