Specifications
Portable Air-cooled Generator1.ce ,iso9001,soncap
2.100% copper wire
3.electric /auto /recoil start
4.ATS for option

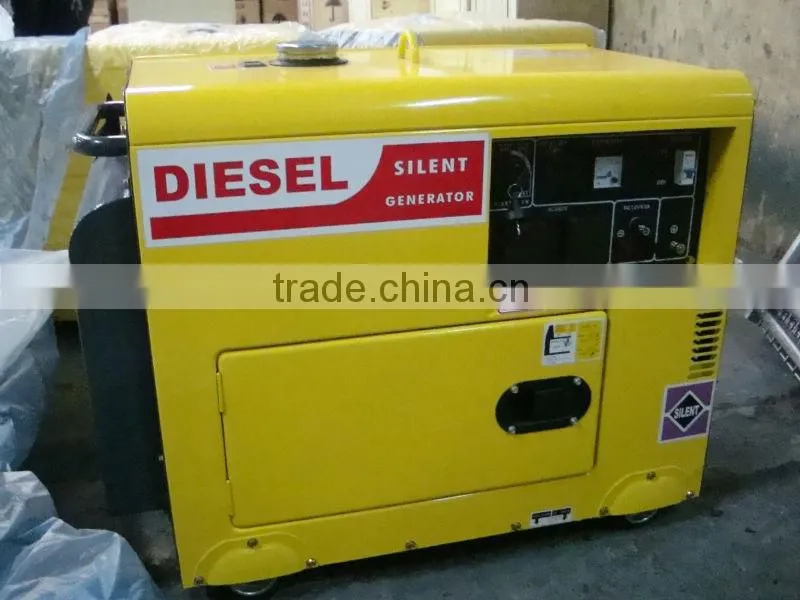

Portable Air-cooled Diesel Generator Set
SMALL CHINESE SILENT DIESEL GENERATOR FACTORY
---- BEST CHINA GENERATOR SET WITH TRAILER AND HANDEL !!!
Silent Diesel Generator Features:
1. Power by 4-stroke air-cooled direct injection diesel engine
2. Rated output at 5.0kW, Max. Output at 5.5kW.
3. Large fuel tank ensures hours of continuous running.
4. Brushless alternator for easy maintenance.
5. 12-volt DC output as standard configuration for battery charging and low voltage appliance.
6. Standard configuration of voltmeter enables convenient use.
7. Hydrautic-Mafnetic Circuit Breakers for overload protection and convenience
8. Sound-absorbing panels keep lower noise.
9. Wheels for easy move.
10. Full frame protection which looks more luxurious for easy
11. digital meter , ATS (automatic transfer switch)
12. Low fuel comsuption
13. It is suitable for 50Hz and 60Hz. The dimensions is decided by the power
Small Silent Diesel Generator Set Specification:
|
Air-cooled Diesel Generator Sets (Single Phase) ,digital type and ats for opitional | ||||||
| Model | SML3GF-LN | SML5GF-LN | SML6GF-LN | |||
| Rated frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated voltage(v) | 110,120,220,230,240,220/110,240/120 | |||||
| rated output power(kw) | 2.8 | 3.3 | 4.2 | 5 | 5 | 5.5 |
| Max output power(kw) | 3 | 3.6 | 5 | 5.5 | 5.5 | 6 |
| Dc output | 12V-8.3A | |||||
| Power factor cos1 | 1 | |||||
| Phase number | Single-phase | |||||
| Fuel tank capacity (l) | 16 | |||||
| Continuour running time (hr)(at rated power) | 12.5 | 11.5 | 8.5 | 7.5 | 8.5 | 7.5 |
| Noise level{db(A)/7m}(zero load-full load) | 70-74 | |||||
| Overall dimension{mm}(LXWXH) | 825*520*740 | 910*520*740 | 935*520*715 | |||
| Packing dimension {mm}(lXWXH) | 855*550*780 | 950*550*780 | 960*550*770 | |||
| Net weight kg | 132 | 156 | 171 | |||
| Gross weight kg | 150 | 170 | 185 | |||
| starter system | electric starter | |||||
| Engine model | 178FGE | 186FGE | 186FAGE | |||
| Engine type | Single cylinder,4-stroke,air-cooled,vertical,diesel engine | |||||
| Bore*stroke(mm) | 78*62 | 86*70 | 86*72 | |||
| Displancement (cc) | 296 | 406 | 418 | |||
| Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
Open or Silent Diesel Generator Package
Silent Generator Certificate:SONCAP,CE,COI,SGS,BV,EPA
Generator Characteristics:
1. Powered by air-cooled 4-stroke diesel engine.
2. 12-volt DC auxiliary charging (car/boat battery).
3. Injection nozzle with electric control clique.
4. Low oil alert system shuts down the engine automatically.
5. Wheels for easy move.
6. Key operated ignition switch for the standard electric starter.
7. Standard equip with 24Ah dry battery
8. Hydraulic-Magnetic circuit breaker.
Diesel Generator,Gasoline Pump,Water Pump,Protable Genset,Moving Trailer
Generator Warranty:
Guarantee for one year or 1200 running hours (accord to whichever reach first) from installed date. During the guarantee period, our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets.
Diesel Generator Delivery:
25-30days upon received your down payment.
Diesel Generator Accessories
1)Standard accessories:Standard 40 radiator mounted on skid,Common stell frame ,Circuit breaker ,damper ,exhaust silencer ,flexible pipe,battery and connecting wires ,standard tools kit ,operation manual and document
2)Optional accessories:Engine coolant and oil heater ,alternator space heater ,cooling for heat exchanger ,communication interface ,battery charger by main supply ,daily fuel tank ,ATS and paralleling system ,soundproof canopy and moving trailer .
