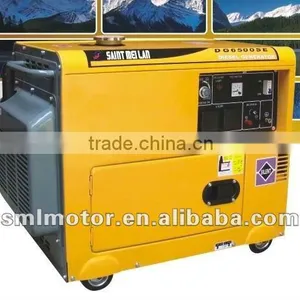

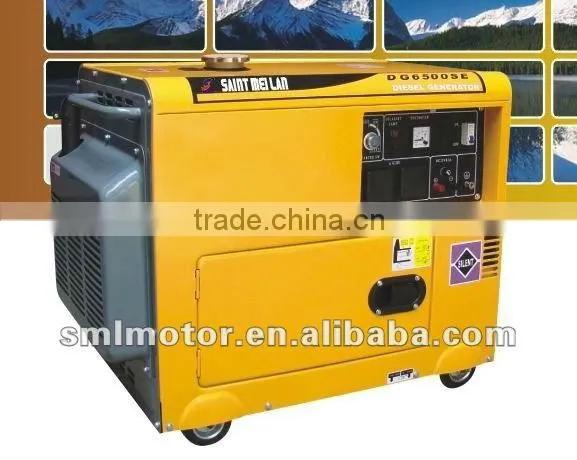

Honda Type Dual Voltage 50Hz/60Hz Diesel Generator 5kva to 6kva (Open and soundproof)

Specifications

Diesel Generator 5kva - 6.25kva(Open and soundproof)
1 With 4 wheels
2 Noise 60 db
3 Fuel Tank
4 ATS

Honda Type CE approved Diesel Generator 5kva - 6.25kva(Open and soundproof)



DIESEL GENERATORS
OPEN FRAME Series
Model	XDG2200/E	XDG3600/E	XDG5000/E	XDG6000/E-3
FOB Fuzhou port,China	200-300	USD200-300	USD300-350	USD300-400
Frame Type	Open Type	Open Type	Open Type	Open Type
Frequency(Hz)	50  /  60	50  /  60	50  /  60	50  /  60
Voltage(V)	110~240			220/380   110/190
Rated Power (kVA)	1.8 /  2.0	2.8  /  3.0	4.5 /  5.0	4.5 /  5.0
Max.powert(kVA)	2.0  / 2.2	3.0  /  3.3	5.0  /  5.5	5.0  /  5.5
Phase	Single			3-phase
Power factor	1.0	1.0	1.0	0.8
Diesel Engine Type	170F/FE	178F/FE	186F/FE	186F/FE
Max. Power Output (hp)	4.0HP	6.0HP	9.0HP	9.0HP
Diesel Engine Type	Air-cooled, 4-stroke,Vertical,Single-cylinder,  Direct injection combustion.
Bore*stroke(mm*mm)	70*55	78*62	86*70	86*70
Displacement (cc)	211	296	406	406
Compression rate	20:01	20:01	19:01	19:01
Ignition System	Explode Ignition
Lube oil system	Pressure splash Type
Starting System	Recoil or Electric
Lube oil capacity(L)	0.75	1.1	1.65	1.65
Fuel Tank Capacity(L)	12.5	12.5	12.5	12.5
Dimension(L*W*H)(mm)	630*475*560	700*475*580	720*490*620	720*490*620
N.W/G.W (kg)	60/65	78/83	91/96	9/96
20ft(set)	180	160	105	105

silent :72 pieces for 20ft container

open:108 pieces for 20ft container



Certificate:SONCAP,CE,COI,SGS,BV,EPA

Characteristics:

 1. Powered by air-cooled 4-stroke diesel engine.

2. 12-volt DC auxiliary charging (car/boat battery).

3. Injection nozzle with electric control clique.

4. Low oil alert system shuts down the engine automatically.

5. Wheels for easy move.

6. Key operated ignition switch for the standard electric starter.

7. Standard equip with 24Ah dry battery.

8. Hydraulic-Magnetic circuit breaker.



Package



Pallet
