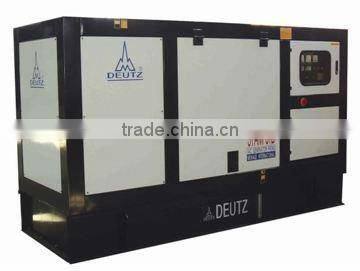

Deutz Diesel Engine Generator

Deutz Diesel Engine Generator photo-1
US$ 3,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Deutz
Model Number:
SMD, Saint Meilan
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Deutz
Model Number SMD, Saint Meilan
Output Type AC Three Phase
Speed 1500RPM/1800RPM
Frequency 50/60Hz
Rated Power 20kva--1250kva
Rated Voltage 110V/240V, 220V/380V, 230V/400V, 240V/415V
Rated Current 20-2000A

Specifications

Diesel engine generator
1 stamford,leory somer
2 Noise 70 db (7 meters away)
3 CE and ISO,SONCAP
4 Lowest price

Deutz diesel engine generator
 Deutz diesel engine generator

20kw-1000kw Generating set with Deutz Engine



Engine Type

F2L912 14KW/1500RPM,
F2L912 17KW/1800RPM,
F2L912 20KW/2300RPM

F3L912 24KW/1500RPM,
F3L912 29KW/1800RPM,
F3L912 36KW/2300RPM,
F3L912 38KW/2500RPM,

F3L913 25KW/1500RPM,
F3L913 31KW/1800RPM,
F3L913 37KW/2300RPM,
F3L913 44KW/2500RPM,

F4L912 32KW/1500RPM,
F4L912 38KW/1800RPM,
F4L912 46KW/2300RPM,
F4L912 51KW/2500RPM,

F4L913  34KW/1500RPM,
F4L913  40KW/1800RPM,
F4L913  50KW/2300RPM,
F4L913  56KW/2500RPM,

F6L912  48KW/1500RPM,
F6L912  60KW/1800RPM,
F6L912  74KW/2300RPM,
F6L912  78KW/2500RPM,

F6L913  51KW/1500RPM,
F6L913  65KW/1800RPM,
F6L913  79KW/2300RPM,
F6L913  85KW/2500RPM,

BF6L913  88KW/1500RPM,
BF6L913  106KW/1800RPM,

BF6L913C 114KW/1500RPM,
BF6L913C 137KW/1800RPM.





Deutz diesel engine generator

The world first class alternator, up to the  GB755, BS5000, VDE0530, IEC34-1, CSA22.2, AS2359 standard,brushless and self-excitation,it be can supply excitation in many cases:

·       STAMFORD/ MARATHON/ ENGGA

·       Standard pitch winding can be inhibit currents nterruption

·       Insulation Class: H  Protection class: H

·       Frequency at stable state:  ≤±1.0%

·       Telephones interference: THF < 2%, TIF < 50



Product Description

Model: F2L511  F1L511
Ctlinder number: 2  1
Chamber type: Direct injection  Direct injection
Bore x stoke, mm: 100X105  100X105
Speed, r/min: 1500  1500
15-minute output rating. Kw/HP: 13.6/18.5  6.8/9.2
12-hour output rating. Kw/HP: 11.5/15.6  5.7/7.7
Max. Torque, N. M: 88  44
Min. Stabl speeMd wirhout load, r/min: 900  900
Cooling method: Air-cooled  Air-cooled
Starring manner: Electrical  Hand crank or electrical
Net wright, kg: 155  110
Overall dimensions(LXWXH), mm: 518X525X709  395X525X671

Deutz diesel engine generator
