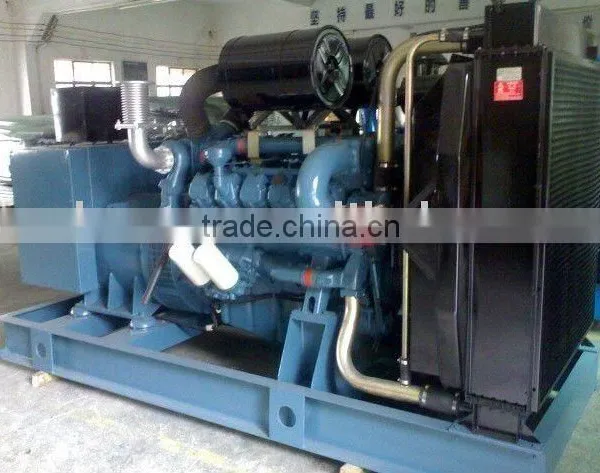

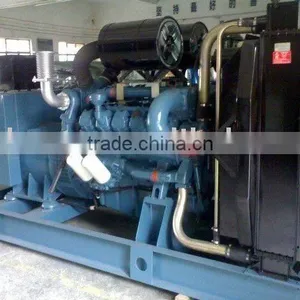

High quality CE&ISO Soundproof Genuine (Daewoo)Doosan generating set

Diesel Generator set

Diesel Genset Model

SML725

Rating Power (KW/KVA)

520/650

Standby Power(KW/KVA)

580/725

Rating Ammeter(A)

938

Diesel Engine

Engine Model

P222LE-S

Prime Power(KW)

552

Standby Power(KW)

603

Bore X Stroke (mm)

128X142

number of Cylinder & Configuration

V 12

Displacement(l)

21.9

Compression Ratio

14.6:1

Aspiration Type

Turbocharged & After-cooled

Max. intake depression(mmH2O)

220

Combustion air Volume(m³/min)

38

Max. Exhaust back Pressure(mmH2O)

600

Exhaust Gas Flow(m³/min)

117.5

Max. Exhaust Gas Temperature(degree)

598

Cooling Type

Water cooled with Radiator

Fan cooling air flow(m³/min)

535

Engine Coolant capacity(l)

23

Max. temperature of coolant(degree)

100

Max. permissible oil temp.(degree)

120

Total oil capacity(l)

43

Rating Fuel Consumption(l/h)

138

Governing Type

Electrics Governor

Alternator

Rating Voltage(V)

400/230

Alternator Model

MX-560-4

Rating Capacity(KW/KVA)

560/700

Eff.%

93.9%

Power Factor

0.8 lagged

Exciting type

Brushless self-exciter, DVR

Voltage regulation

±0.25%

No. of  Phase

3 phase 4 wire

Enclosure Class

IP22

Class of Insulation

H

Control Panel

Control Module UK DEEP SEA

GCS 6410 AMF

Battery

Rating Capacity(AH)

2X200AH 12V

Dimension

Generator set dimension(LXWXH)

(mm)

3600X1400X

1800

Weight

Weight (kg)

3900
