50HZ/60HZ 1500rpm/1800rpm 6 Cylinders 280kw/350kVA Shangchai Diesel Generator Set

FOB Price

USD $2,000 - $60,000 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port China mainland
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Saint
Model Number	GF2-500kw(shangchai,)	Output Type	AC Three Phase
Speed	1500rpm/1800rpm	Frequency	50Hz/60Hz
Rated Power	500kw	Rated Voltage	110V-240V

Product Description

Engine introduction:

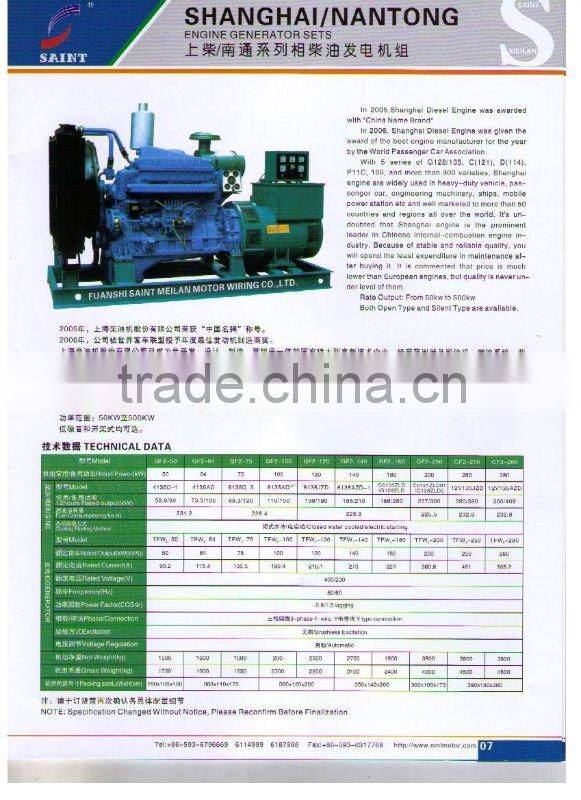

Shangchai series diesel generator set is the product that we adopt series diesel engines of Dongfeng Brand 135, D114, and CAT(C121) produced by Shanghai Diesel Engine Co., Ltdtogether with our company's and domestic brand generators to make. And its excellent dynamic property, economy, low running (mobility) cost, as well as its "Three Guarantees "(for repair, replacement and compensation of faulty products) and the sufficient supply of parts provided by our national chain are well received by our customers.

We can supply Shangchai series diesel generator sets ranging from 62.5KVA-500KVA.

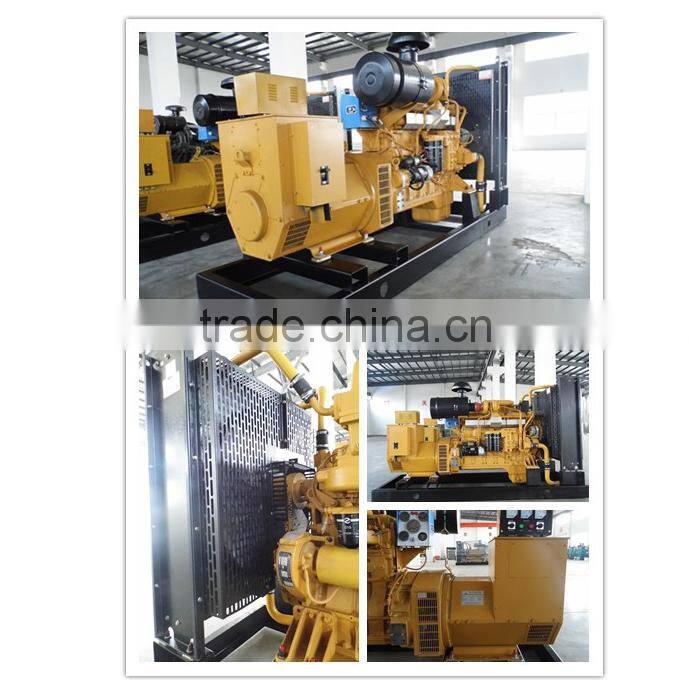

Engine

A. More than 10-hours operation base tank( optional )

B. Deep-sea key start controller (Auto start is optional)

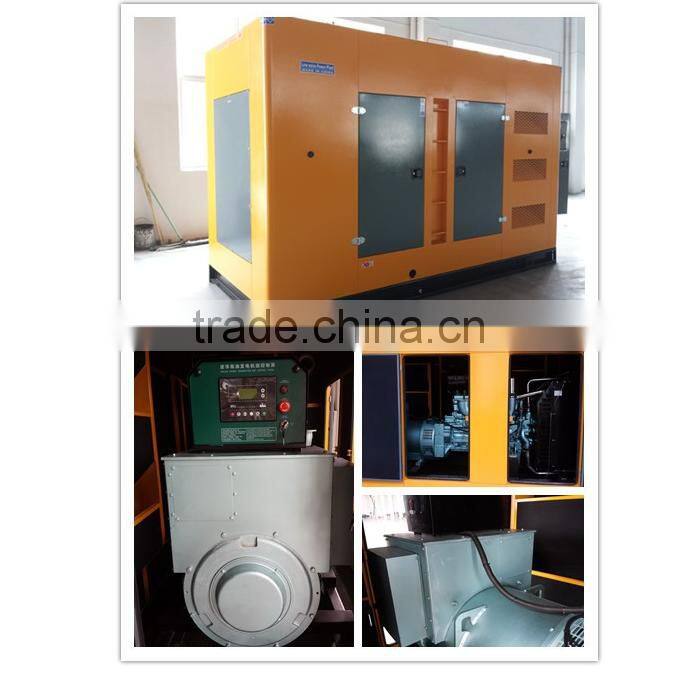

C. Open frame and soundproof canopy

D. Heavy duty industrial diesel engine

a. Compact size

b. Suitable for long time operation

c. Low maintenance cost

E. Combination cooling water tank fitted to meet the requirement of radiation at ambient.

Alternator

A. Optional permanent magnet generator system provides constant excitation under all conditions.

B. Easy paralleling with mains or other generators, standard 2/3 pitch winding. To avoids excessive neutral currents.

C. Dynamically balanced rotors with sealed for life ball bearings and single construction

D. Class "H" insulation system.

E. Wide range of flanges and adapters and disc couplings.

F. Conforms to all leading industrial and marine standards.

optional accessories

Soundproof enclosure
Trailer or movable power station
Automatic transfer switches(ATS)
Battery charger
Jacket water heater
Extra fuel tank
Fuel water sepatator

warranty and maintenance:

1) Do the full power load test for five hours before package.

2) One year or 1000 working hours, whichever comes first.

3) After expiration, we provide spare parts maintenance with low price.

Packaging & Shipping

shangchai engine china generator set

Shangchai Series Diesel Generator Sets
Genset Model	Rated Power		Standby Power		Engine Model	Bore×Stroke(mm)	Fuel Consumption	Dimensions	Weight
Genset Model	KW	KVA	KW	KVA	Engine Model	Bore×Stroke(mm)	≤(L/KWh)	(L×W×H)mm	kg
SML-S50	50	62	55	69	4135D-1	135×140	231.2	2200×800×1385	1650
SML-S64	64	80	70	88	4135AD	135×150	231.2	2200×800×1385	1700
SML-S75	75	94	90	113	4135AZD-1	135×150	231.2	2200×800×1385	1800
SML-S75	75	94	90	113	6135D-3	135×150	228.4	2600×900×1450	2200
SML-S90	90	112	100	125	4135AZD	135×150	231.2	2200×800×1385	1850
SML-S90	90	112	100	125	6135AD	135×150	231.2	2700×900×1450	2200
SML-S100	100	125	110	138	4135AZD	135×150	231.2	2200×800×1385	1900
SML-S100	100	125	110	138	6135AD	135×150	231.2	2700×900×1450	2250
SML-S120	120	150	130	163	6135JZD	135×140	225.8	2750×900×1700	2400
SML-S150	150	188	160	200	6135AZD-1	135×150	225.8	2750×900×1700	2600
SML-S180	180	225	200	250	G128ZLD	135×150	230	2750×900×1700	2850
SML-S200	200	250	220	275	G128ZLD2	135×150	230	2750×900×1700	2900
SML-S200	200	250	220	275	12V135AD	135×150	231.2	3300×1200×1800	3900
SML-S220	220	275	240	300	G128ZLD1	135×150	225	2860×1100×1600	2440
SML-S250	250	312	280	350	12V135JZD	135×150	232.6	3300×1380×1900	3700
SML-S280	280	350	310	387.5	G128ZLD11	135×150	232.6	3300×1380×1900	3750
SML-S300	300	375	330	413	12V135AZD	135×150	232.6	3300×1380×1900	3800
SML-S320	320	400	350	438	12V135AZLD	135×150	210	3400×1350×1900	3980
SML-S360	360	450	400	500	12V135BZLD	135×155	210	3800×1500×2015	4180
SML-S4500	450	562.5	500	625	12V135BZLD2	135×150	228.5	3600×1378×1925	3400
SML-S500	500	625	550	687.5	12V135BZLD1	135×155	210	3800×1500×2015	4280
