Help CenterTypes of Generator Alternator for Gen Sets
Related Products
-
Wuxi Brushless GeneratorUS$ 120 - 6,800MOQ: 1 Set -
100% Copper Wire 60kva Wuxi Stamford DynamoUS$ 120 - 6,800MOQ: 1 Set
-
Wuxi Generator 380 VoltUS$ 120 - 6,800MOQ: 1 Set
-
7.5kw Stc Three Phase Synchronous GeneratorsUS$ 72 - 1,000MOQ: 1 Set
-
ISO9001 ST 230V Alternators PricesUS$ 72 - 1,000MOQ: 1 Set
Specifications
generator alternatorbrush /brushless alternator
copper wire stator,rotor
volts/frequency meter
silent box,little vibration

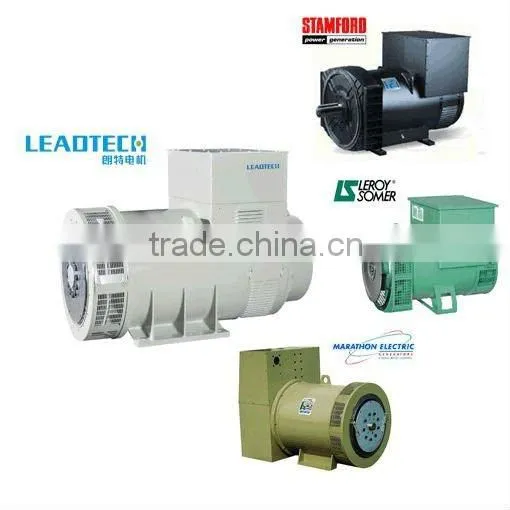

types of generator alternator for gen sets

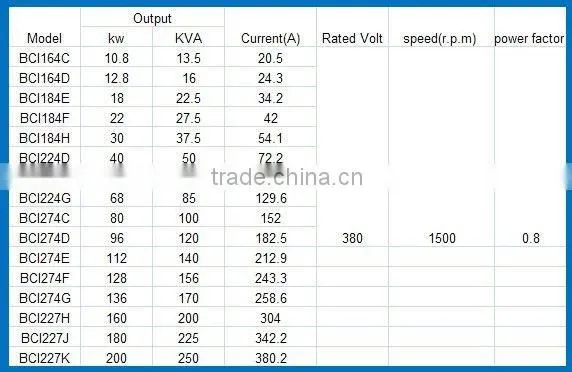

Alternators Main Performance Data:
1. The Standard protection for CSC series generators is IP23;
2. Winding are insulated to class H;
3. Full-damping whole salient construction guarantees generators to be operated stably in any conditions, and enable it to run under 150% rated Speed (2250r/min) for 2 min;
4. 2/3 winding pitch, easy to operate with the other generator in parallel;
5. Adjusting rate of stable voltage ≤ 1%, adjusting rate of instant voltage: -15%~+20%(60%In, COSØ ≤0.4lagging), instant voltage recovery time ≤1.5S
6. Wave aberration rate of voltage THD ≤4%, telephone harmony wave factor THF≤2%, telephone effective factor of TIF≤50.
Alternators Environment Conditions:
1. Altitude: do not exceed 1000m.
2. Cooling air temperature: 258~313K(-15°C~-40°C);
3. Relative air humidity: do not exceed 90%.
Note: If environment conditions exceed the scope mentioned-above, please feel free to contact us.
Alternators Features:
1. Excellent compatibility with drive systems: standard mounting dimensions can be coupled to any diesel
engines from worldwide, many S.A.E. flanges and S.A.E. drive discs can be easily interchangeable.
2. IP23 Protection, H insulation, Suitable for harsh environments.
3. All AVR’s have numerous features for voltage adjustment, stability adjustment, low frequency protection and exterior voltage adjustment.
Standard AVR: EA460 Option AVR: EA440, EA230, EA08 or EA448
4. Standard 2/3 winding pitch, easy to be operated with other generators in parallel; Several types of winding are available to optimize performance. (Max. voltages available range up to 690V).
5. CSC generators are provided with three phase as standard, easy to alter the voltage by reconnecting for
12-leads on terminal plate, also the units can be run as single phase(except for CSC354).
6. The damp winding on rotor and the surge suppressor on rectifier can provide the generator with stability and reliability.
7. Balanced rotor with two sealed and quality ball bearing, Little vibration and low noise.
8. Easy access for installation and maintenance.
Alternators Option Features:
1. Interchangeable S.A.E. flanges and S.A.E. drive discs
2. Convenient filters on air inlets and outlets
3. Protection for windings in harsh environments
4. Different AVR type
5. Different windings
6. Exterior potentiometer
7. Space heaters
8. Stator thermal protection
9. PMG or auxiliary windings
10. Droop current transformers (C.T.)
New Automatic Voltage Regulator
low Oil Pressure Alarm System
Electric starting system
Best After-sale Service
