100% copper wire 60kva wuxi stamford dynamo
Stamford Dynamo Main Performance Data:
1. The Standard protection for CSC series generators is IP23;
2. Winding are insulated to class H;
3. Full-damping whole salient construction guarantees generators to be operated stably in any conditions, and enable it to run under 150% rated Speed (2250r/min) for 2 min;
4. 2/3 winding pitch, easy to operate with the other generator in parallel;
5. Adjusting rate of stable voltage ≤ 1%, adjusting rate of instant voltage: -15%~+20%(60%In, COSØ ≤0.4lagging), instant voltage recovery time ≤1.5S
6. Wave aberration rate of voltage THD ≤4%, telephone harmony wave factor THF≤2%, telephone effective factor of TIF≤50.
Environment Conditions:
1. Altitude: do not exceed 1000m.
2. Cooling air temperature: 258~313K(-15°C~-40°C);
3. Relative air humidity: do not exceed 90%.
Note: If environment conditions exceed the scope mentioned-above, please feel free to contact us.
Features:
1. Excellent compatibility with drive systems: standard mounting dimensions can be coupled to any diesel
engines from worldwide, many S.A.E. flanges and S.A.E. drive discs can be easily interchangeable.
2. IP23 Protection, H insulation, Suitable for harsh environments.
3. All AVR’s have numerous features for voltage adjustment, stability adjustment, low frequency protection and exterior voltage adjustment.

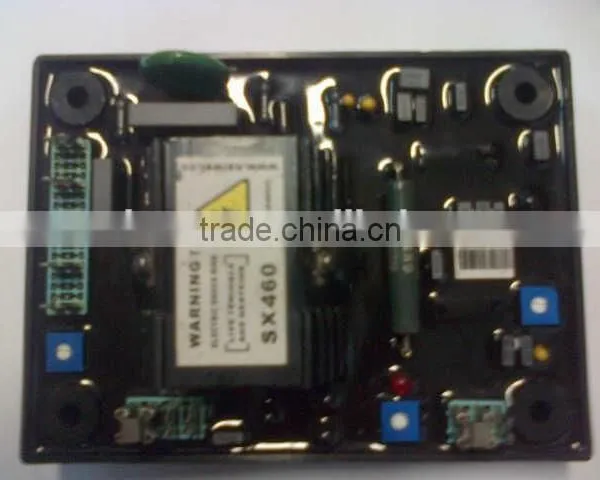

Standard AVR: EA460 Option AVR: EA440, EA230, EA08 or EA448
4.INSULATION AND VARNISH
The insulation stem is class H All wound components are impregnated with materials and processes designed specifically ensure the generator running in dreadful conditions. The special developed resin materials meet required for high mechanical strength of windings and rotating components. WINDINGS AND ELECTRICAL PERFORMANCE All generator stators are wound to 2/3 pitch. this eliminates triple(3rd,9th,15th…)harmonics on the voltage waveform and is an optimum designed for UPS equipment of non linear loads. The 2/3 pitch design avoids excessive neutral currents result from higher winding pitches. A fully consecutive damper winding reduces oscillations during paralleling. The 2/3 pitch windings and care fully selected pole and tooth ensures very low waveform distortion.
Warranty:
Guarantee for one year or 1200 running hours (accord to whichever reach first) from installed date. During the guarantee period, our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets.
Delivery:
25-30days upon received your down payment.
Looking forward to your early enquiry!!!
keywords: brushless alternator,stanford ,stamford dynamo, silent generator, diesel generator set , power generator, generator set ,diesel power generator ,electric generator,portable diesel generator ,home generator, small genset ,new generator ,commercial generators ,emergency generator ,stanby genset ,backup generator ,residential generators , genset
