Specifications
c router with ATC2.four cutters can be used freely
3.easy to operste

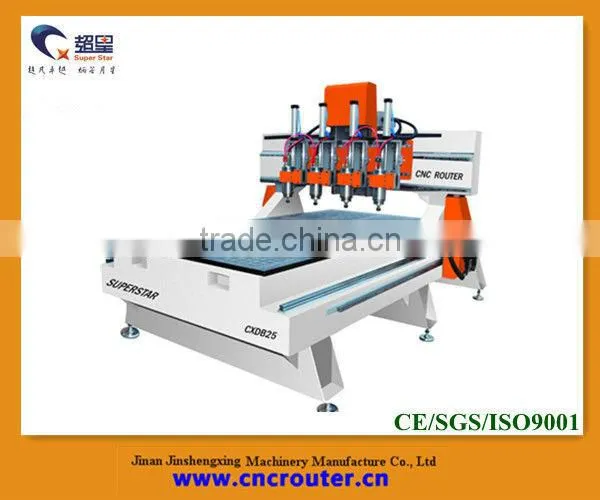

CNC machines &multifunctional wood working machine with four heads
Product features:
1.The imported straight line party type guide rail,double row four row ball slide block,loading capacity,smooth operation,
high precision,long life.Import the ball screw high precision,lower knives accurately.
2.The matching for choose NSK bearings imported from Japan's high-speed water-cooled motor.6 KW
air-cooled spindle 4.5 KW main spindle big power,stable performance.
3.Online computer typed macro control system,adopting unique intelligent budget rules,give full play to the motor
potential and achieve high speed processing,song linear synchronous,curve more perfect.
4.Software compatibility and can be compatible type3 / Actcam /Castmate /Wentai and so no many kinds of
CAD/CAM design software.
5.Six partition vacuum adsorption mesa,can be effective in different size adsorption material.
6.By using high-speed drive stepping motor and drive,Y axis adopt double motor drive,make high
speed operation of the 25 m/point above empty line speed,with strong cutting spindle can make the sculpture speed more improved.
Performance parameters:
X Working Area |
1300mm |
Y Working Area |
2500mm |
Z Working Area |
200mm |
Table size |
1300x2500mm |
Traveling Positioning Accuracy |
±0.05mm |
Repositioning Positioning Accuracy |
±0.05mm |
Table Surface |
By suction |
X,Y ,Z Structure |
XY gear wheel, Z ball screw |
Max. Power Consumption(Without spindle) |
1840W |
Max. Rapid Travel Rate |
50000mm/min |
Max. Working Speed |
25000mm/min |
Spindle Power Motor |
4.5KW |
Spindle Speed |
0-24000r/min |
Drive System |
Stepper/Servo |
Working voltage |
AC380V/60Hz |
Command |
G-code |
sample
Certification
package
factory
Why you choose our products?
Advantage 1: Compared with CNC router with ATC, this machine is cheaper but high speed for exchanging tools.
Advantage 2: Easy to operate it.
Advantage 3: four spindles with four different pattern cutters, can work at the same time or separately, the efficiency can be increased up to four times if used at the same time.
Advantage 4: The distance of four heads can be adjusted freely, suitable for different sizes of material carving at the same.
