Specifications
wood machine:1.Imported square orbits
2.round type ATC system
3.Taiwan control system

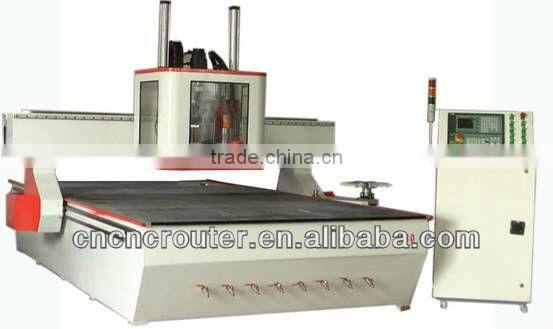

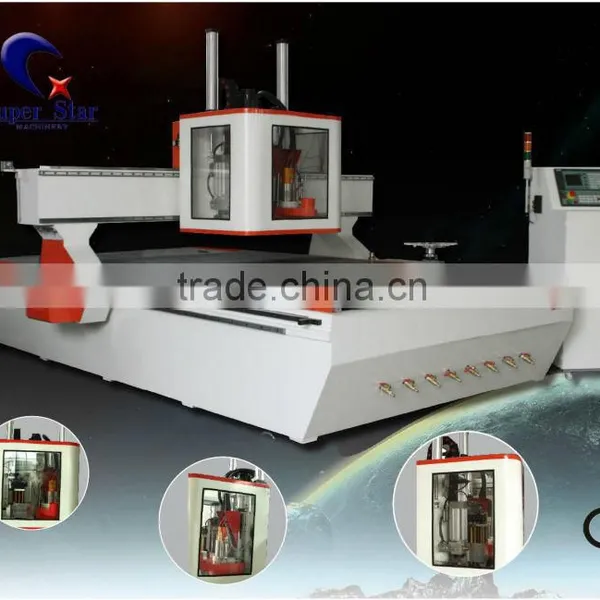

CNC engraving machine Chinese good qualiy for all kinds of wood products
Feature:
1 All electrical and mechanical components of this model are chosen from top international brands. Servo drive system made in Japan and Original Italian spindle.
2 Round Type ATC system, tool storage capacity of 8, tool exchanging time of 8 seconds. Processing speeds up to 25m per min.
3 Imported square orbits, double-side four ball slider, smooth operation, accurate engraving.
4 New bed structure, control systems from Taiwan, tool storage is installed next to the Z axis or to the beam(optional)
5 Shooting drill:7sets of L-
shaped 2*5 vertical drills, drill center distance of 32mm. A set of level drills on both X and Y axis. Saws with 90 degree turning.
6 Any size is available according to customer’s order.
Application:
Furniture industry, decorative materials, aerospace industry and other fields. Also applies to other non-metallic processing, automotive mold processing.
X Working Area |
1300mm |
Y Working Area |
2500mm |
Z Working Area |
300mm max |
Table Size |
1300mm*2500mm |
Processing Accuracy |
0.05mm |
Repositioning Accuracy |
0.05mm |
Table Structure |
By suction |
X, Y, Z Structure |
X,Y Gear Wheel Z Ball Screw |
Max Rapid Travel Speed |
60000mm per min |
Max Working Speed |
25000mm per min |
Spindle Power |
9.0 KW |
Spindle Speed |
0-24000r per min |
Drive System |
Japan Servo |
Working Voltage v |
AC 380V/50HZ |
Command Language |
G-code |
Operating System |
Taiwan Baoyuan System |

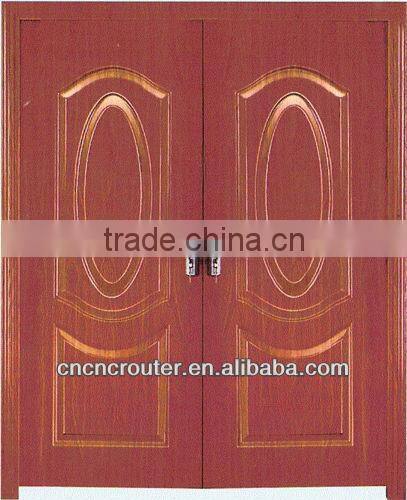

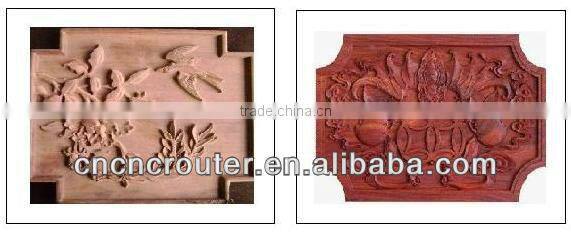

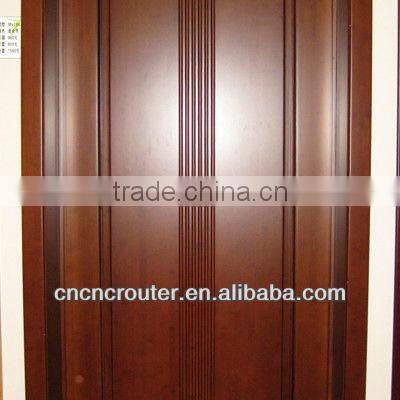

Sample
certification

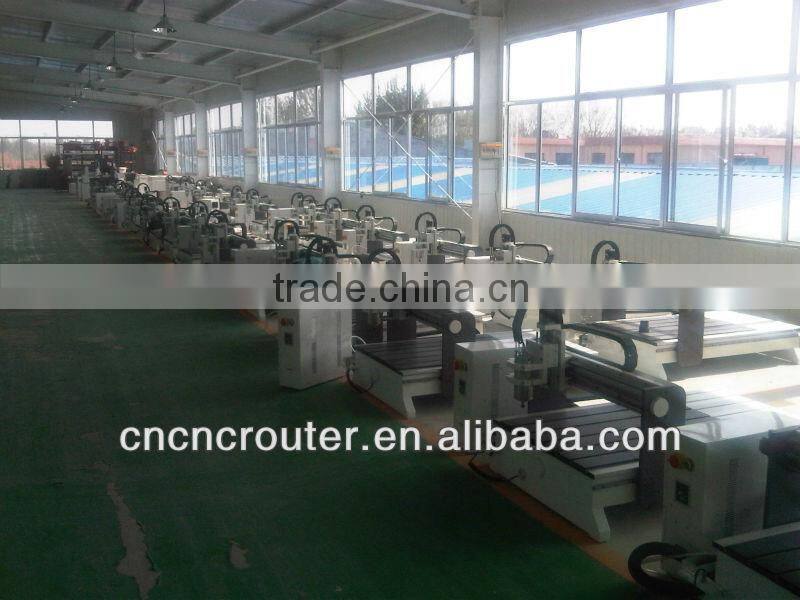

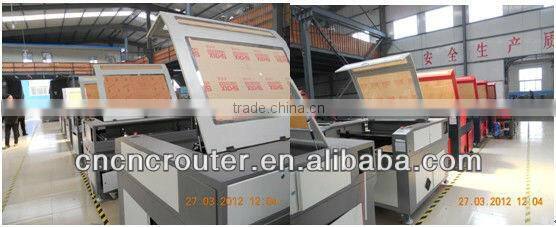

workshop
package:
