Specifications
4 axis rotary engraving machineportable DSP controller
Taiwan TBI square oribts
Servo motors

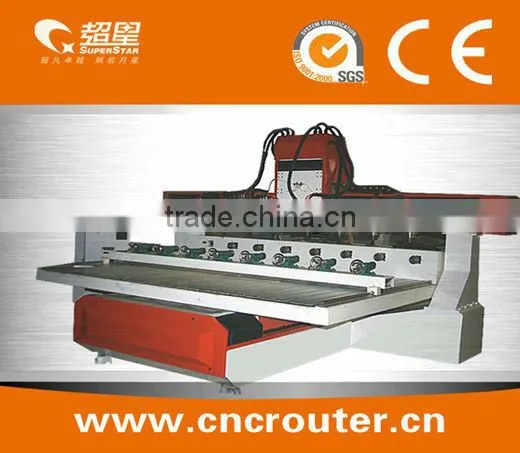

4 axis rotary engraving machine
Features:
1. Servo motor, high speed, superior performance.
2. Rotary with servo motor, high speed running smoothly, high efficiency.
3. Ncstudio control system
4. Using precise ball screw transmission
Main equipment:
Steel structure lathe bed and stand together.
Three axises use Taiwan square guide way
Servo motor
Ncstudio control system

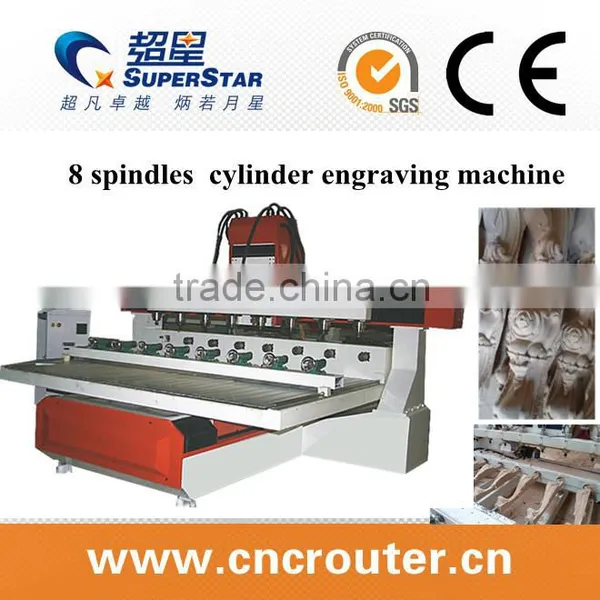

Eight rotary, each rotary diameter is 200mm
Eight spindles, each spindle is Superstar dedicated spindle 2.2kw
Technical Specifications:
X Y working size |
2800*2300mm |
Z working size |
260mm |
Diameter of rotary |
200mm |
Working precision |
0.05mm |
Repositioning precision |
0.02mm |
Working speed |
4-12mmin |
Rotating speed |
0-24000r/min |
Table |
Plat table |
Spindle power |
2.2kw consent water cooled spindle |
Driver mode |
Servo motor |
Working Voltage |
380V/50HZ |
Command |
G code .u00 .mmg plt |
PRICE:
USD29900/set FOB Qingdao port
Certificate: CE,ISO
Warranty: one year
Packaging: strong wooden case to avoid damage
Delivery: 20 working days after getting the deposit
Payment: T/T---30% in advance, 70% balance against copy of B/L
MOQ: 1 set
Valid: Until 30 Dec, 2013

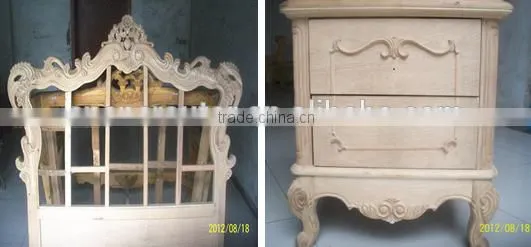

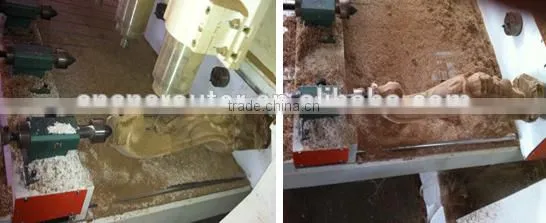

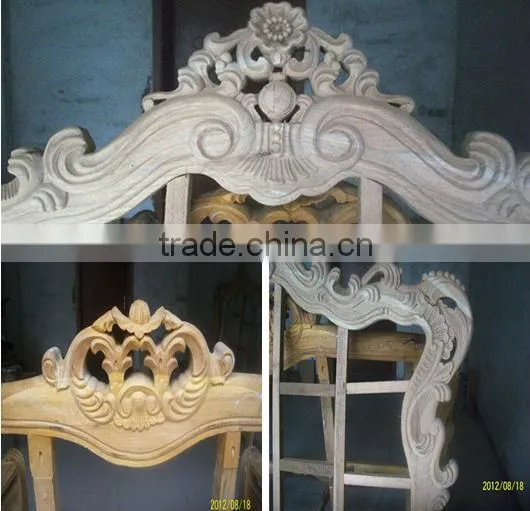

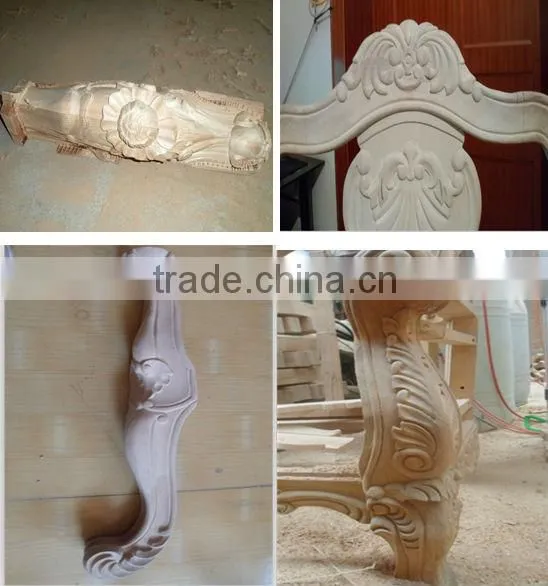

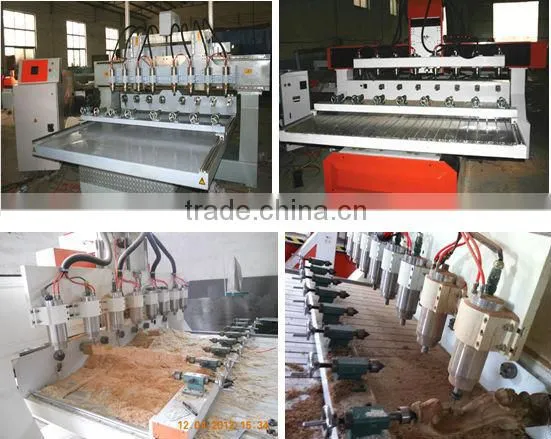

Photos
