Specifications
wood rotary engraving machinePortable 4 axis DSP controller
Taiwan TBI square orbits
Multi heads
Rotary clamp 200-350mm
wood rotary engraving machine
This 3d wood cnc machine has the following features:
1. the machine can engrave 4 woods at one time
2. you can install a flat table over the 4 rotary, making flat engraving
3. adopting servo motors, little generating heat after long-time work, high stability
4. adopting Ncstudio 4-axis control system
5. adopting imported TBI square guide rail, making machine move stability and long lifetime
Application:

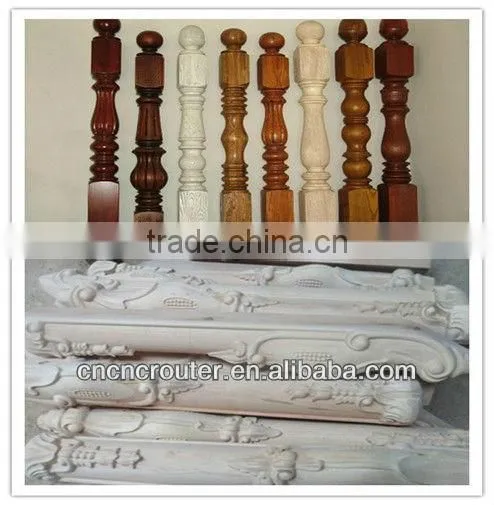

processing wood cylinder like table legs, chair legs, stair rails and so on.
Also making relief on the flat table.
Specification:

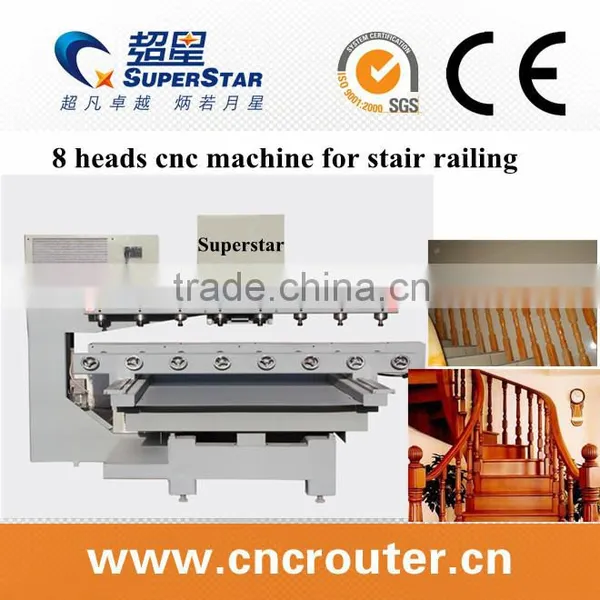

CNC Rotary 8 Heads Engraving Machine CX-3015
Characteristics:
1.high efficiency
2.high accuracy
3.fast speed
Technical Parameters:
Machine structure |
Whole steel structure |
flat working area |
2600x2400mm |
Rotary engraving size |
100-200mm diameter, 1200mm length |
Traveling accuracy |
0.01mm |
Table surface |
Table Moving Type |
X,y,z structure |
Gear wheel |
Transmission style |
Square orbit |
Spindle power |
1.5/2.2/0.8 kw water cooling spindle(x8) |
Spindle speed |
0-24000mm/min |
Control system |
NC studio /DSP |
Drive system |
Eston Servo |
Lubrication type |
Manual type |
Working voltage |
AC220V/50HZ |
Warranty: one year
Certificate: CE, ISO9001:2008, SGS
Produce time: 15 working days after getting the deposit
Payment: T/T—50% t/t in advance, 50% t/t after seeing the copy of B/L
Packaging: strong wooden case to avoid damage
MOQ: 1 set
We will be happy to service your inquiry with either our standard items or custom-made orders.
Please do not hesitate to contact us with your detailed inquiry.
We will put forth every effort to provide you with the most profession service and products that will meet the most demanding requirements.
If you have interest in the machine and want the working video, please feel free to email us.
If you have interet in being our agent. Please don't hesitate t0 contact with us. We will give your biggest discount and help.
