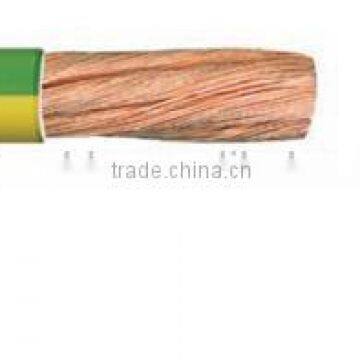

Energy Cable H05V-K / H07V-K copper PVC cable
USD $0.11 - $99.98
/ Meter
5000 Meters(Min.Order)
- 1800 Kilometer / Kilometers per Month
- Qingdao
- T/T
You May Like
- AY A108 Laser Radar FPC Cable Solves iPhone Camera Lag Problem
- 2.5/4/6mm red black solar cable 1500V DC solar cable awg PV solar panel cable
- New Design 4mm 6mm 10mm Tinned Copper Conductor DC Photovoltaic Solar pv Cable
- 2.5mm 4mm solar dc wire pv electric cable 6mm2 solar panel power cable H1Z2Z2-K photovoltaic solar extension wire
- electric power solar extension cable 6mm2 solar cable 4mm 10mm 16mm dc pv wire h1z2z2-k solar panel photovoltaic electric cable
- TUV pv solar cable Red 6mm PV1-F for solar panel collecting cable electric solar cable wire
Product Details
Place of Origin: | Henan, China | Brand Name: | taifa | Model Number: | H05V-K cable |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Other, building, indoor |
Conductor Material: | Copper | Jacket: | Other, no |
Product Description
Specification
Energy Cable H05V-K / H07V-K copper PVC cable
construction
conductor: stranded copper
insulation: PVC
Technica data:
Part Number | Nominal Cross Section | No of Cores x Cross Section | Approx. outer Diameter | Approx. Cable Wieight | Conductor Resistance at 200C (Max) | Current Carrying Capacity in ground at 200C | Current Carrying Capacity on air at 300C |
H05V-K | 0,50 | 15x0,20 | 2,1 | 9 | 39,0 | - | 11 |
H05V-K | 0,75 | 22x0,20 | 2,3 | 11 | 26,0 | - | 16 |
H05V-K | 1,00 | 30x0,20 | 2,5 | 14 | 19,5 | 11 | 26 |
H07V-K | 1,5 | 27x0,50 | 2,9 | 20 | 13,3 | 15 | 24 |
H07V-K | 2,5 | 47x0,25 | 3,6 | 32 | 7,98 | 20 | 32 |
H07V-K | 4 | 51x0,30 | 4,2 | 50 | 4,95 | 25 | 42 |
H07V-K | 6 | 76x0,30 | 4,8 | 70 | 3,30 | 33 | 54 |
H07V-K | 10 | 73x0,40 | 6,5 | 115 | 1,91 | 45 | 73 |
H07V-K | 16 | 119x0,40 | 8,0 | 175 | 1,21 | 61 | 98 |
H07V-K | 25 | 187x0,40 | 10,0 | 270 | 0,780 | 83 | 129 |
H07V-K | 35 | 255x0,40 | 11,0 | 370 | 0,554 | 103 | 158 |
H07V-K | 50 | 374x0,40 | 13,5 | 525 | 0,386 | 132 | 198 |
H07V-K | 70 | 336x0,50 | 15,0 | 700 | 0,272 | 165 | 245 |
H07V-K | 95 | 456x0,50 | 17,5 | 970 | 0,206 | 197 | 292 |
H07V-K | 120 | 576x0,50 | 19,5 | 1200 | 0,161 | 235 | 344 |
H07V-K | 150 | 696x0,50 | 22,0 | 1500 | 0,129 | - | 391 |
H07V-K | 185 | 888x0,50 | 24,0 | 1860 | 0,106 | - | 448 |

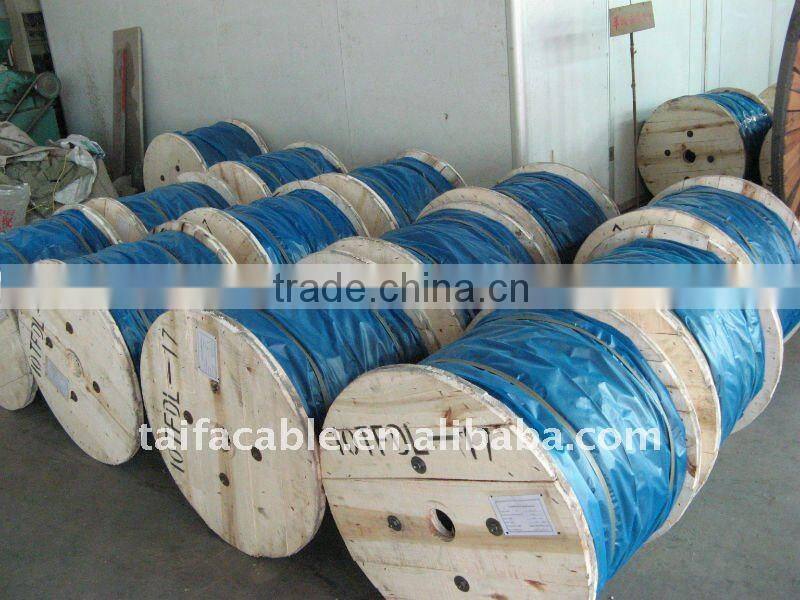

Package & Delivery
wooden drums seaworthy or at your option
delivery within 15 working days
Contact Us
- Henan Taifa Cable Co., Ltd.
- Contact namejia jia
- Phone86-371-68626008
- AddressEast Section Of Shunyuan Road, Industry Technology Park
