Specifications
engraving machine metal1. CE ISO FDA certificate
2. one year quality warranty
3. 10 years experience
4. excellent after-sa
engraving machine metal

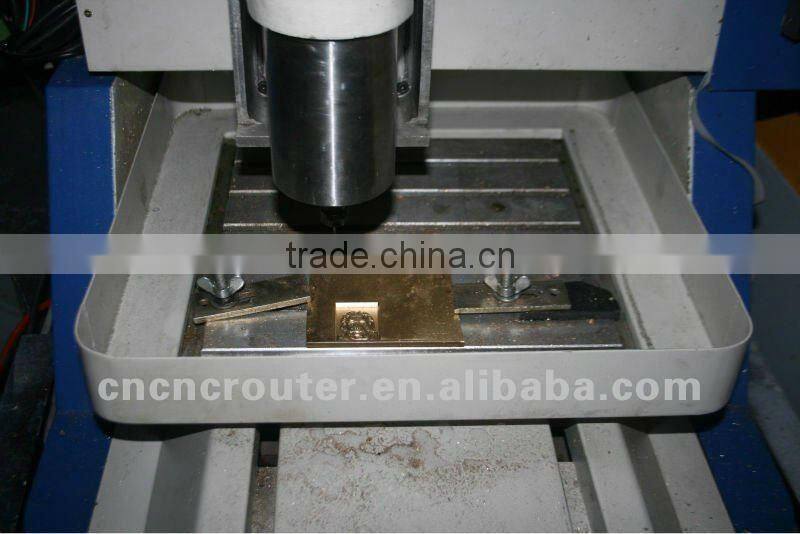

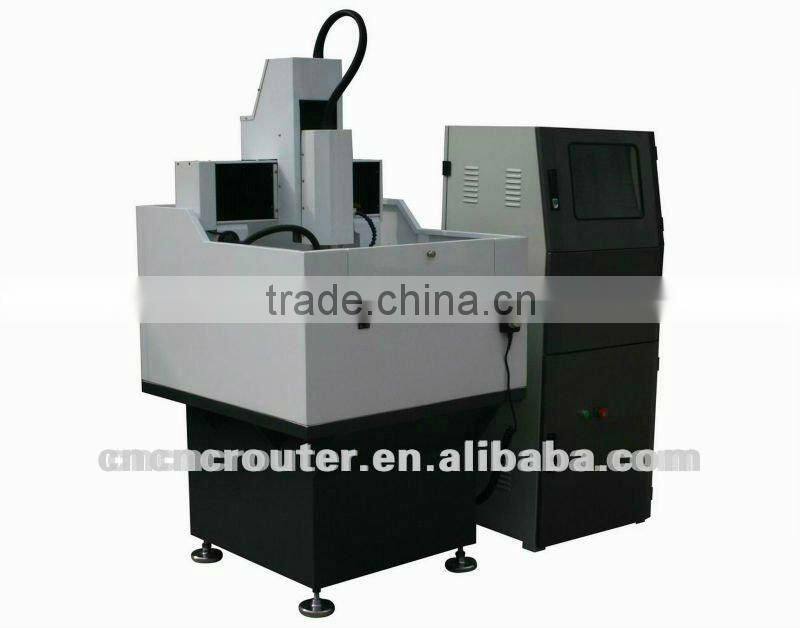

This CNC Mold Machine with high precision for mini stamping die mold has the following features:
1). whole cast iron structure, and cast iron table
2). high-performance NCstudio control system
3). imported Panasonic servo drive motor
4). APPA C3-grade ball screw transmission
5). TBI high-accuracy SP-grade square guide way
6).2.2KW water cooling spindle
7). adopting JDpaint software
8). can be customized according to your requirements
Technical Specification
Model |
SX-600SR |
X,Y Working area |
600×600mm |
Z Working area |
300mm |
Feeding Height |
300mm |
Table Size |
750×700mm |
Lathe Structure |
Cast Iron |
Working Accuracy |
0.01mm |
Repositioning Accuracy |
0.008mm |
Spindle Power |
2.2KW |
Spindle Rotating Speed |
0-24000rpm/min |
Control System |
NCSTUDIO |
Drive System |
Servo |
Max. Travelling Speed |
12m/min |
Max. Working Speed |
8m/min |
Working Voltage |
AC220V |
Warranty: one year
We will be happy to service your inquiry with either our standard items or custom-made orders. Please do not hesitate to contact us with your detailed inquiry. We will put forth every effort to provide you with the most profession service and products that will meet the most demanding requirements.
