6-35kv CU AL XLPE insulated steel wire armoured cable
6-35kv XLPE insulated steel wire armoured cable
1. Brief introduction:
Al/XLPE/SWA/PVC
Aluminum core,XLPE insulated, steel wire armoured, PVC sheathed power cable
1,3 cores
Cross-linked polyethylene insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.
2. Standard:
Our XLPE cables can be produced according to our factory standard which is equivalent to IEC 502-1983, and some indexes of XLPE cable are superior to IEC 502-1983.
We can design and manufacture special XLPE cable according to the standards required by the customers.
Main Application
3.Application:
For laying indoor,tunnel , cannal and underground. Unable to bear external mechanical forces , but bear the traction force during laid.
Max. Conductor Operating Temperature: 90°C
Short Circuit Temperature: more than 250°C no more than 2 seconds.
Environmental temperature of laying: In air 25°C
Underground 15°C
Rated voltageU0/U kV | ||||||
|
1st class 2st class |
0.6/1 |
3.6/6 |
6/10 |
8.7/15 |
12/20 |
21/35 |
0.6/1 |
6/6 |
8.7/10 |
12/15 |
18/20 |
26/35 |
|
Number of core |
Cross-Section mm2 |
|||||
single |
1.5~300 |
25~630 |
25~630 |
25~630 |
35~630 |
50~630 |
2cores |
1.5~300 |
- |
- |
- |
- |
- |
3 cores |
1.5~300 |
25~300 |
25~300 |
25~300 |
35~300 |
50~300 |
3+1cores |
4~300 |
- |
- |
- |
- |
- |
4 cores |
1.5~300 |
- |
- |
- |
- |
- |
3+2cores |
4~300 |
- |
- |
- |
- |
- |
4+1cores |
4~300 |
- |
- |
- |
- |
- |
5 cores |
1.5~300 |
- |
- |
- |
- |
- |

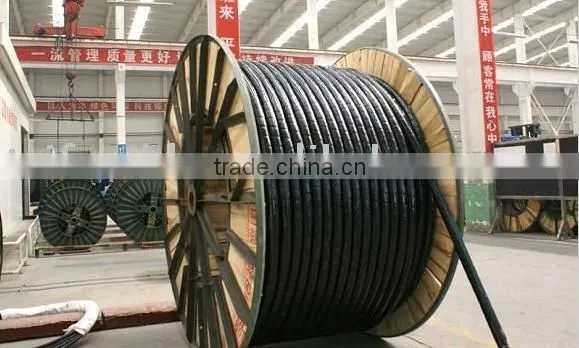

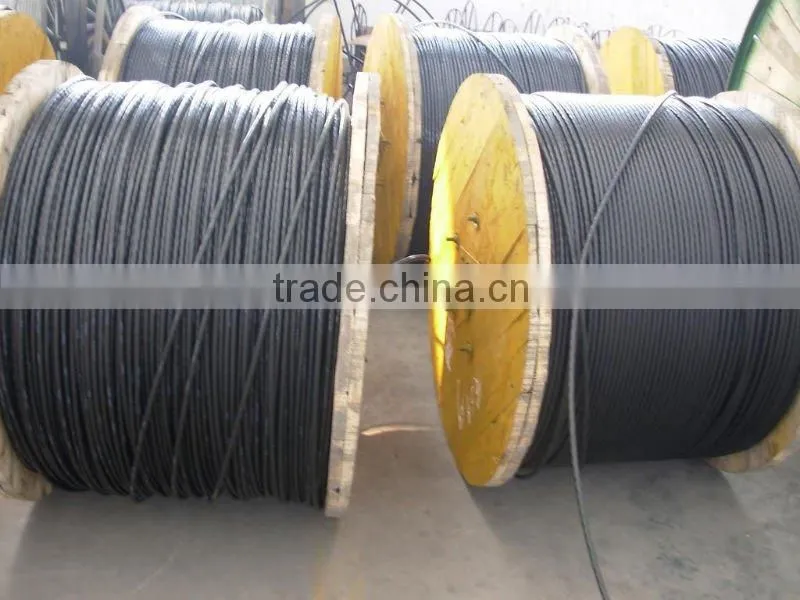

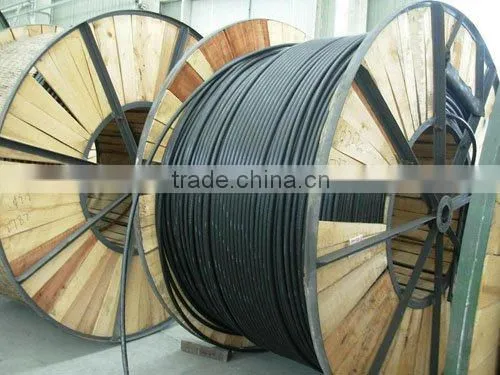

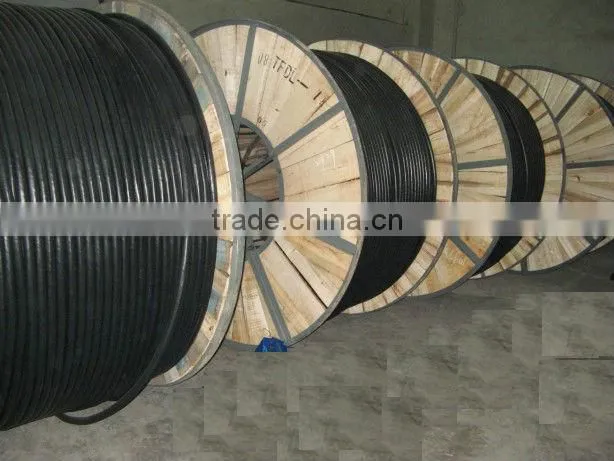

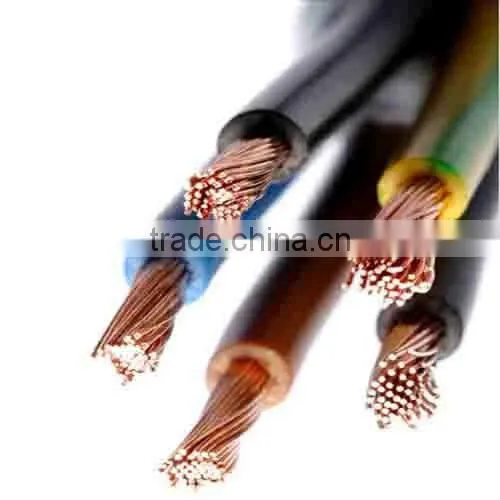

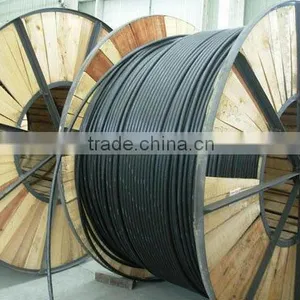

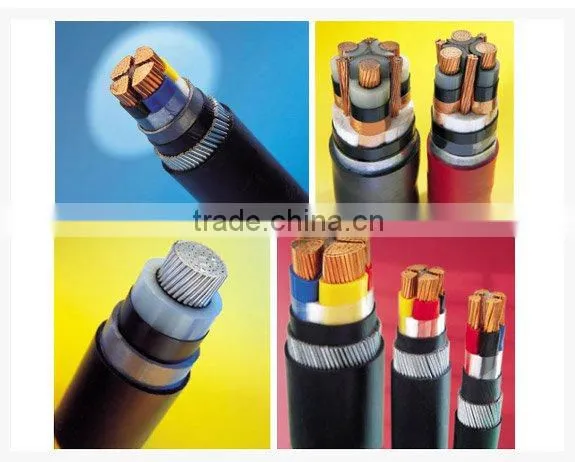

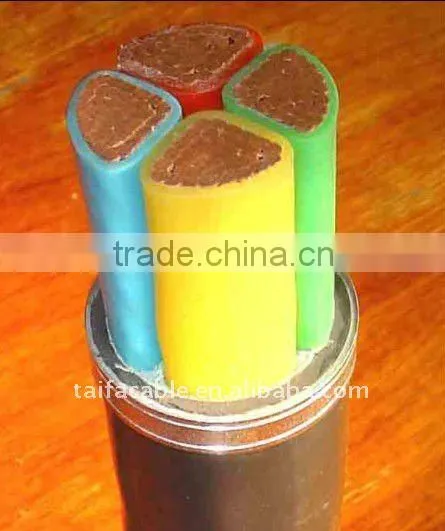

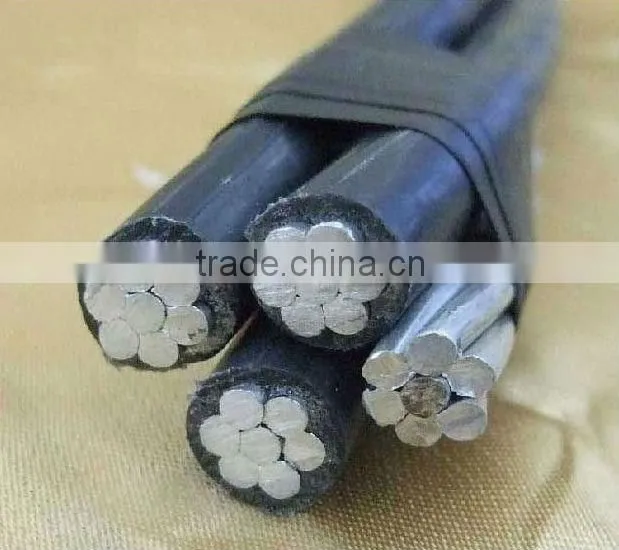

4.Product pictures:
