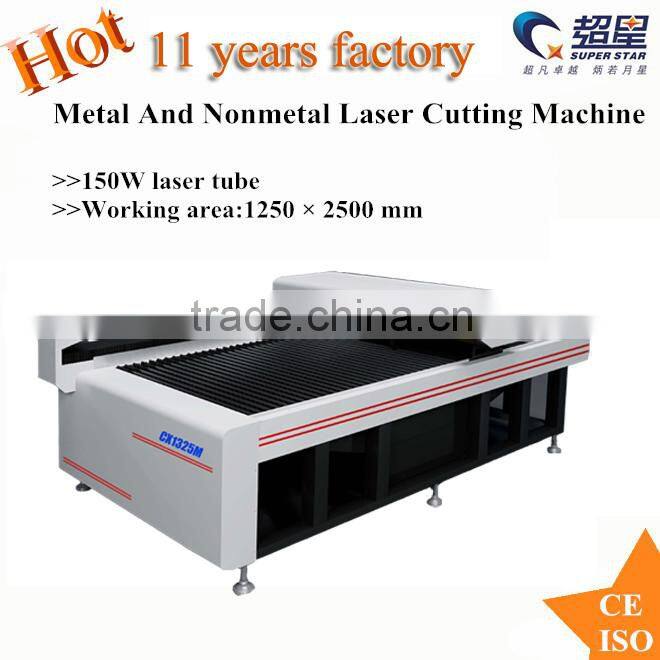

2mm Stainless cutting LASER MACHINE CX-1325M
Features:
High efficiency: The cutting speed of 1mm stainless steel is 1800 mm/min. 20mm acrylic with perfect cutting quality.
High precision: SM1325M is matched with the Panasonic Servo system and high precision ball screw system to ensure the high preiciion, running stable and long -operation.
Auto Height controlling system; if the sheet metal is not flat, the system can sense a distance from the nozzle to materal surface and follow the surface up and down automatically to adjust the certain focus distance for keeping high precision cutting quality
Fixed beam optical system: the laser beam is expanding, so the bigger the working area is, the more difficult for machine to get the same cutting quality over the whole working area. The fixed beam optical system can guarantee the consistent beam power and quality over the whole working area so that the machine can get the same cutting quality. High efficiency, high precision, stable performance and long life.
Low running cost about 5KVA/hour
Technical Parameter:
Model |
CX1325M |
Laser power |
150W |
Working area |
1250 × 2500 mm |
Positioning accuracy |
±0.05 mm |
Positioning speed |
20m/min |
Weight |
1000 kg |
Power supply |
220V±10%/10A |

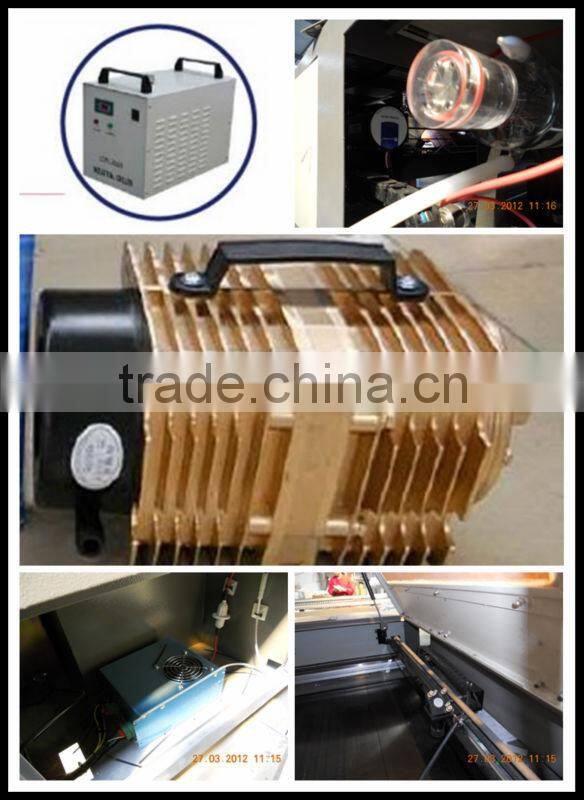

Machine Device:
Laser tube (150w)
High precision ball-screw system
Panasonic Servo System
Untouched following system
Fixed beam optical system
Industrial chiller
Off-computer controlling system
Payment: T/T payment.
Time of boarding: within 20 days after receiving deposit
Warranty: 1 Year for machine, 6 months for laser tube
Package: fumigation-free wooden box
Application:
Laser power |
150w |
|||
Material |
Acrylic |
MDF |
Stainless steel |
Carbon steel |
Cutting thickness |
30mm |
10mm |
2mm |
1.5mm |
150W Cutting speed:
Material |
Cutting thickness |
Cutting speed (mm/min) |
|
Stainless steel |
0.5mm |
2700 |
1mm |
1800 |
|
1.5mm |
1000-1200 |
|
|
Carbon steel
|
0.5mm |
3000 |
1mm |
1800 |
|
1.5mm |
1000-1200 |
|
Acrylic |
10mm |
300 |
20mm |
90-120 |
|
MDF |
10mm |
300-400 |
