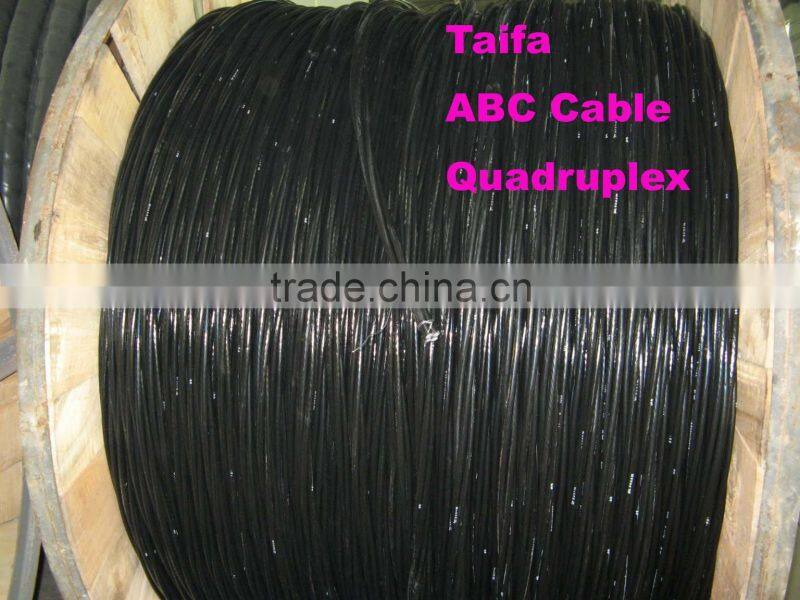

Help CenterABC Aerial Bundle Cable (Service Drop Cable)
Related Products
-
0.6/1kv Overhead Transmmission Line Cable ABC CableUS$ 0.11 - 99.98MOQ: 1000 Meters -
0.6kv 1kv 11kv Aluminum Conductor XLPE Insulated Overhead ABC Cable Aerial Bundled CableUS$ 0.11 - 99.98MOQ: 5000 Meters
-
Aerial Bundle Cable (ABC) - Service Entrance Cable - NFA2XUS$ 0.11 - 99.98MOQ: 10 Kilometers
-
Triplex Service Drop ABC Cable/Aerial Bundle CableUS$ 0.11 - 99.98MOQ: 10 Kilometers
-
Al/XLPE 0.6/1kV Overhead ABC Cable Aerial Bundled CableUS$ 0.11 - 99.98MOQ: 10 Kilometers
Specifications
Standard : IEC,ASTM, BS,DIN,JIS
This series includes:
1) Aerial bundled cables (ABC)
2) Copper conductor XLPE insulated overhead cables
3) Aluminum conductor XLPE insulated overhead cables
4) Copper conductor PE insulated overhead cables
5) Aluminum conductor PE insulated overhead cables
6)Cores: Single, duplex, triplex, quadplex
Application:
The product is new type of aeriel cable for power transmitting, It is extensively used in overhead power transmission line,It improves the safety and reliance of electrified wire netting
Characteristics:
To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75 for polyethylene insulated conductors or 90 for crossliked polyethylene(XLPE) insulated conductors.
We can provide as following:
| Code*Word | Phase conductor | Bare Neutral Message | Nominal lay Length | Weight Per | Allo wable Amp acitles | ||||||
| 1000 ft.(lbs.) | |||||||||||
| Size | Stranding | Insul | Size | Stranding | Rated | inches | XLPE | PVC | XLPE | PVC | |
| (A WG) | Thick(Mils) | (AWG) | Strength | ||||||||
| (lbs.) | |||||||||||
| AAC Neutral-messenger | |||||||||||
| Clydessdale | 4 | 1 | 45 | 4 | 7 | 881 | 20.58 | 198 | 198 | 100 | 80 |
| Pinto | 4 | 7 | 45 | 4 | 7 | 881 | 20.58 | 211 | 211 | 100 | 80 |
| Mustang | 2 | 7 | 45 | 2 | 7 | 1350 | 25.42 | 318 | 318 | 135 | 105 |
| Criollo | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 25.42 | 503 | 503 | 180 | 140 |
| Percheron | 2/0 | 11 | 60 | 2/0 | 7 | 2510 | 29.97 | 619 | 619 | 205 | 160 |
| Hanovarian | 3/0 | 17 | 60 | 3/0 | 19 | 3310 | 35.18 | 764 | 764 | 235 | 185 |
| Oldenburg | 4/0 | 18 | 60 | 4/0 | 19 | 4020 | 35.18 | 945 | 945 | 275 | 210 |
| Lippizaner | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 38.79 | 1519 | 1519 | 370 | 280 |
| *Code words for XLPE insulated products are formed by adding "/XLPE" to the conventional code words above | |||||||||||
| +Conductor temperature of 90 for XLPE,75 for PVC;ambient temperature of 40;emissivity 0.2;2ft./sec.Wind in sun. | |||||||||||
Package & Delivery

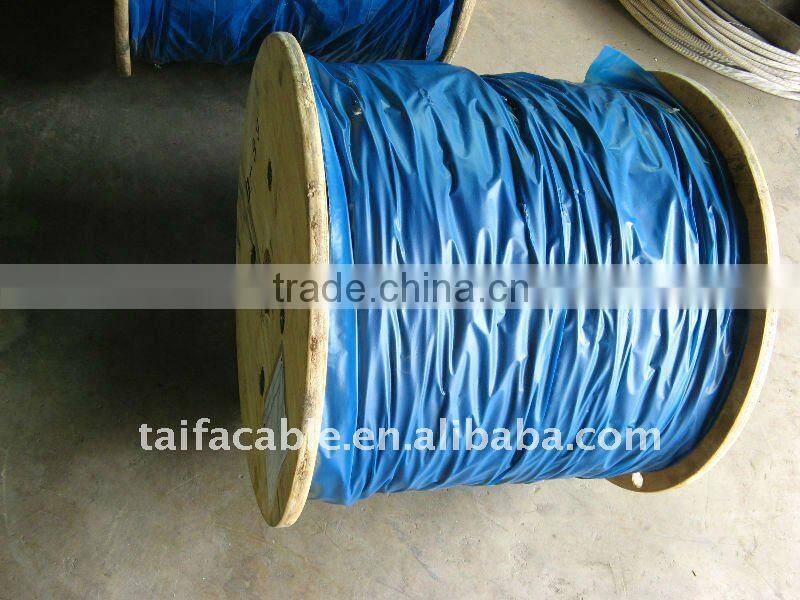

Wooden drums seaworthy or according to your requirements
Delivery within 15 working days
