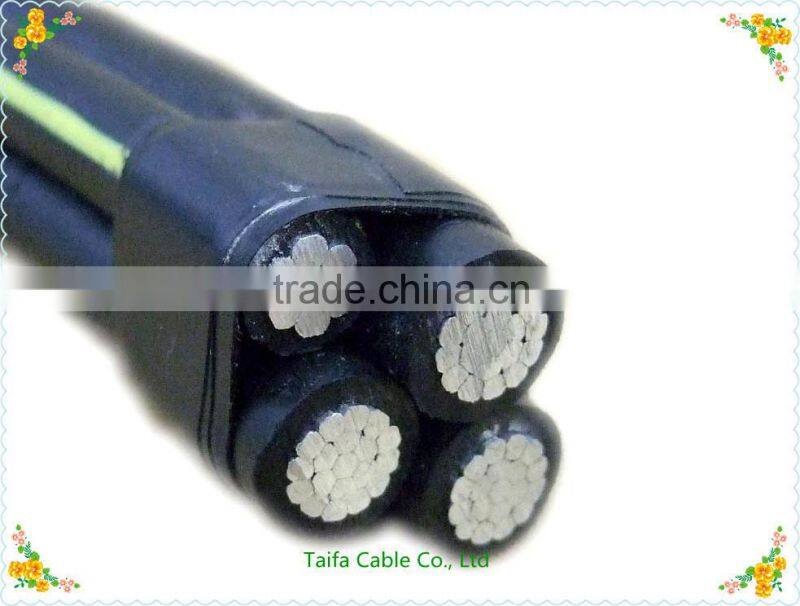

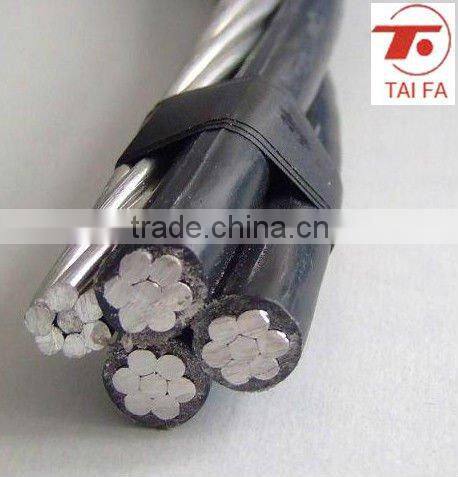

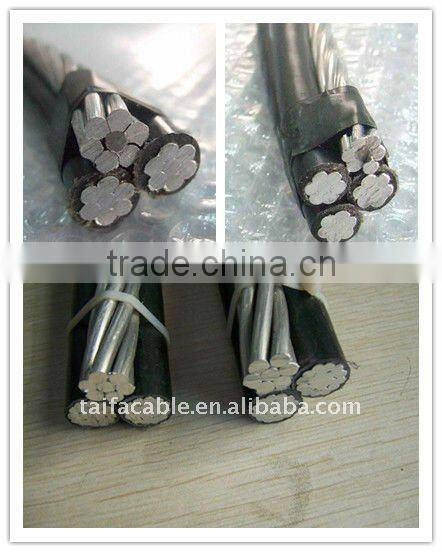

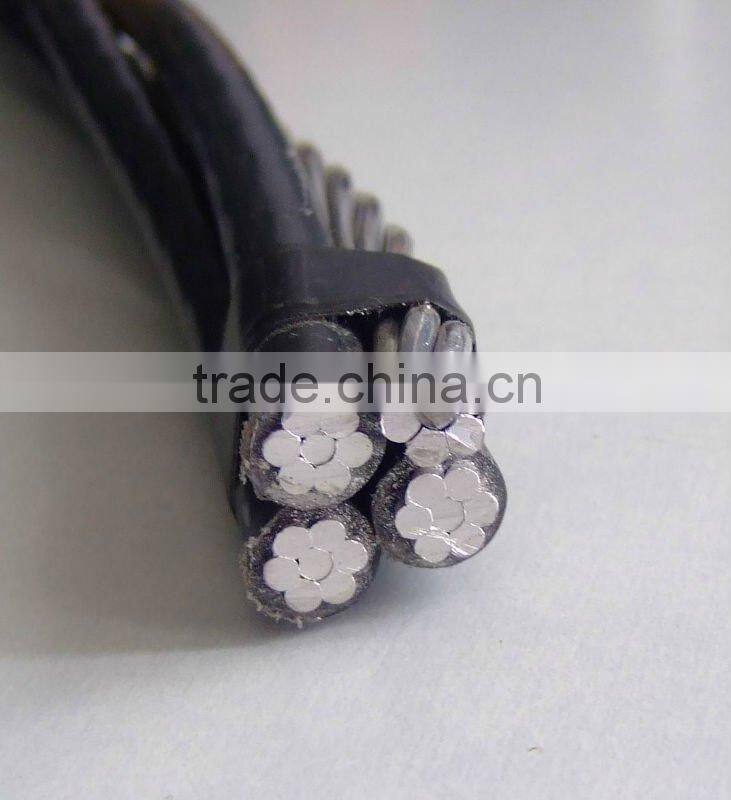

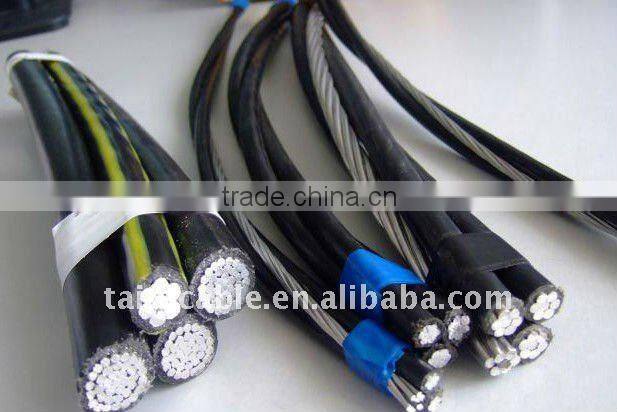

Overhead XLPE/PE Insulation ABC Cable Service Drop ABC Cable
US$ 0.1 - 100
MOQ: 2000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
taifa
Model Number:
ABC cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Overhead Aerial Bundled Cable Self-supporting Abc CableUS$ 0.1 - 100MOQ: 1000 Meters -
11kv Abc Cable Stranded Aluminium Conductor Aerial Bundled CableUS$ 0.1 - 99MOQ: 3 Meters
-
Duplex Triplex Quadruplex Abc Cable Aerial Bounded Cable Service Drop CableUS$ 0.1 - 66MOQ: 1000 Meters
-
Twisted ABC Cable PVC Insulated ABC Overhead Transmission Line Power Cable SpecificationUS$ 0.01 - 99MOQ: 1 Kilometer
-
Factory Sale Overhead ABC Cable Aerial Bundled Conductor CableUS$ 0.01 - 99MOQ: 1 Kilometer
Place of Origin
Henan, China
Brand Name
taifa
Model Number
ABC cable
Insulation Material
XLPE
Type
Low Voltage
Application
Overhead
Conductor Material
Aluminum
Jacket
PVC
Overhead XLPE/PE Insulation ABC Cable Service Drop ABC Cable
Product Description
1. Type and Application
a. Duplex Service Drop
Application:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.
b. Triplex Service Drop
Application: To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene insulation 90°C maximum for crosslinked insulation.
c. Quadruplex Service Drop
Used to supply 3 phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors
Duplex Service Drop
| Construction &Cross sectional area | Insulated Conductors | Suspension neutral | Cable | |||||||||
| Distribution Phase | Street lightning | |||||||||||
| Number &Cross section area | No.of Wires | Approx conductor Diameter | Max. Resistance at 20℃ | Current Carrying Capacity | Number &Cross section area | Current Carrying Capacity | Approx Suspension Wire Diameter | Breaking load | Max. Resistance at 20℃ | Approx. Cable Diameter | Approx. Cable Weight | |
| mm2 | mm2 | mm | ohm/km | A | mm2 | A | mm | kN | ohm/km | mm | kg/km | |
| 2x16 | 2x16 | 7 | 4.8 | 1.91 | 93 | - | - | - | - | - | 15 | 132 |
| 2x25 | 2x25 | 7 | 6.0 | 1.200 | 122 | - | - | - | - | - | 18.5 | 200 |
| 2x35 | 2x35 | 7 | 7.0 | 0.868 | 129 | - | - | - | - | - | 22 | 280 |
| 2x50 | 2x50 | 7 | 8.4 | 0.641 | 158 | - | - | - | - | - | 24 | 370 |
| 4x16 | 4x16 | 7 | 4.8 | 1.910 | 83 | - | - | - | - | - | 18 | 265 |
| 4x25 | 4x25 | 7 | 6.0 | 1.200 | 111 | - | - | - | - | - | 22 | 400 |
| 4x35 | 4x35 | 7 | 7.0 | 0.868 | 131 | - | - | - | - | - | 26 | 550 |
| 3x25+54.6 | 3x25 | 7 | 6.0 | 1.200 | 112 | - | - | 9.6 | 16 | 0.63 | 30 | 470 |
| 3x25+54.6+1x16 | 3x25 | 7 | 6.0 | 1.200 | 112 | 1x16 | 60 | 9.6 | 16 | 0.63 | 30 | 570 |
| 3x25+54.6+2x16 | 3x25 | 7 | 6.0 | 1.200 | 112 | 2x16 | - | 9.6 | 16 | 0.63 | 30 | 640 |
| 3x35+54.6 | 3x35 | 7 | 7.0 | 0.868 | 138 | - | - | 9.6 | 16 | 0.63 | 33 | 580 |
| 3x35+54.6+1x16 | 3x35 | 7 | 7.0 | 0.868 | 138 | 1x16 | 60 | 9.6 | 16 | 0.63 | 33 | 690 |
| 3x35+54.6+2x16 | 3x35 | 7 | 7.0 | 0.868 | 138 | 2x16 | - | 9.6 | 16 | 0.63 | 33 | 750 |
| 3x50+54.6 | 3x50 | 7 | 8.4 | 0.641 | 168 | - | - | 9.6 | 16 | 0.63 | 36 | 720 |
| 3x50+54.6+1x16 | 3x50 | 7 | 8.4 | 0.641 | 168 | 1x16 | 60 | 9.6 | 16 | 0.63 | 36 | 820 |
| 3x50+54.6+2x16 | 3x50 | 7 | 8.4 | 0.641 | 168 | 2x16 | - | 9.6 | 16 | 0.63 | 36 | 890 |
| 3x70+54.6 | 3x70 | 14 | 10.0 | 0.443 | 213 | - | - | 9.6 | 16 | 0.63 | 38 | 930 |
| 3x70+54.6+1x16 | 3x70 | 14 | 10.0 | 0.443 | 213 | 1x16 | 60 | 9.6 | 16 | 0.63 | 38 | 1030 |
| 3x70+54.6+2x16 | 3x70 | 14 | 10.0 | 0.443 | 213 | 2x16 | - | 9.6 | 16 | 0.63 | 38 | 1100 |
| 3x70+54.6+1x25 | 3x70 | 14 | 10.0 | 0.443 | 213 | 1x25 | - | 9.6 | 16 | 0.63 | 40 | 1070 |
| 3x70+54.6+2x25 | 3x70 | 14 | 10.0 | 0.443 | 213 | 2x25 | - | 9.6 | 16 | 0.63 | 40 | 1170 |
| 3x70+70 | 3x70 | 14 | 10.0 | 0.443 | 213 | - | - | 10.2 | 20.6 | 0.50 | 41 | 970 |
| 3x70+70+1x16 | 3x70 | 14 | 10.0 | 0.443 | 213 | 1x16 | 60 | 10.2 | 20.6 | 0.50 | 41 | 1080 |
| 3x70+70+2x16 | 3x70 | 14 | 10.0 | 0.443 | 213 | 2x16 | - | 10.2 | 20.6 | 0.50 | 41 | 1150 |
| 3x95+70 | 3x95 | 19 | 11.5 | 0.320 | 258 | - | - | 10.2 | 20.6 | 0.50 | 44 | 1200 |
| 3x95+70+1x16 | 3x95 | 19 | 11.5 | 0.320 | 258 | 1x16 | 60 | 10.2 | 20.6 | 0.50 | 44 | 1300 |
| 3x95+70+2x16 | 3x95 | 19 | 11.5 | 0.320 | 258 | 2x16 | - | 10.2 | 20.6 | 0.50 | 44 | 1380 |
| 3x120+70 | 3x120 | 19 | 13.0 | 0.253 | 300 | - | - | 10.2 | 20.6 | 0.50 | 46 | 1430 |
| 3x120+70+1x16 | 3x120 | 19 | 13.0 | 0.253 | 300 | 1x16 | 60 | 10.2 | 20.6 | 0.50 | 46 | 1540 |
| 3x120+70+2x16 | 3x120 | 19 | 13.0 | 0.253 | 300 | 2x16 | - | 10.2 | 20.6 | 0.50 | 46 | 1600 |
| 3x150+70 | 3x150 | 19 | 14.5 | 0.206 | 344 | - | - | 10.2 | 20.6 | 0.50 | 48 | 1680 |
| 3x150+70+1x16 | 3x150 | 19 | 14.5 | 0.206 | 344 | 1x16 | 60 | 10.2 | 20.6 | 0.50 | 48 | 1780 |
| 3x150+70+2x16 | 3x150 | 19 | 14.5 | 0.206 | 344 | 2x16 | - | 10.2 | 20.6 | 0.50 | 48 | 1850 |
| 3x120+95 | 3x120 | 19 | 13.0 | 0.253 | 300 | - | - | 12.9 | 27.9 | 0.343 | 47 | 1500 |
| 3x120+95+1x16 | 3x120 | 19 | 13.0 | 0.253 | 300 | 1x16 | 60 | 12.9 | 27.9 | 0.343 | 47 | 1620 |
| 3x120+95+2x16 | 3x120 | 19 | 13.0 | 0.253 | 300 | 2x16 | - | 12.9 | 27.9 | 0.343 | 47 | 1680 |
| 3x150+95 | 3x150 | 19 | 14.5 | 0.206 | 344 | - | - | 12.9 | 27.9 | 0.343 | 49 | 1740 |
| 3x150+95+1x16 | 3x150 | 19 | 14.5 | 0.206 | 344 | 1x16 | 60 | 12.9 | 27.9 | 0.343 | 49 | 1880 |
| 3x150+95+2x16 | 3x150 | 19 | 14.5 | 0.206 | 344 | 2x16 | - | 12.9 | 27.9 | 0.343 | 49 | 1940 |
