Specifications
3D CNC Wood Carving Router Furniture Equipment (ATC)1.Straight ATC System
2.LNC control system
3.Vaccum absorbing system
3D CNC Wood Carving Router Furniture Equipment (ATC)
Features:
1. The whole bed adopts seamless welded steel structure, high rigidity, no deformation.
2. Imported Taiwan linear guide rail, double side four ball slider, high loading capacity, smooth operation, high precision, long lifetime, imported Italian double nuts ball screw, accurate engraving.
3. Italian air cooling spindle 8kw, imported ceramic bearing, huge power and long lifetime. Rotating speed can reach 24000rpm/min.. smooth engraving plane. Disadvantages: big noise, long repairing time, high cost.
4. Equiped with big independent cabinet. Split keyboard operation, concise convenient., and easy to learn. Consumers can master the method of application immediately.
5. Vacuum absorption, vacuum cleaner device and six zones vacuum table are specially designed for soft materials such as MDF. Alll boards in diverse sizes can be put on the table and be kept in a same level. Finished rendering is in consistant depth. Dust absorption system can inhale sawdust and foam to clean the table and maintain the machine indirectly.
6. New LNC control system. Intelligent processing cross-border protection: to prevent mechanical collision phenomenon caused by design layout's crossing the processing table. Hand wheel control: more convenient and flexible.
7. Good software compatibility: compatible with type3,Artcam,Castmate,Wentai and other CAD,CAM softwares.
8. This equipment is particularly suitable for large scale processing of wooden door, furniture, cupboard, mould, etc.
9. Imported Yaskawa servo drive and motor, high precision and fast speed..
Performance Characteristics:
Model |
CX-1325 |
X,Y Working area |
1300mmx2500mm |
Z Working area |
200mm |
Table size |
1480mmx2500mm |
Max travelling speed |
>50000mm/min |
Reposition precision |
0.05mm |
Table structure |
By suction |
Command |
G code*.u00*.mug*.pelt |
X,Y,Z structure |
Gear wheel |
Power(spindle is not included) |
3500W |
Work voltage |
AC380V / 50Hz |
Spindle power |
8.0KW |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
Japan servo |
Operation system |
TAI WAN |

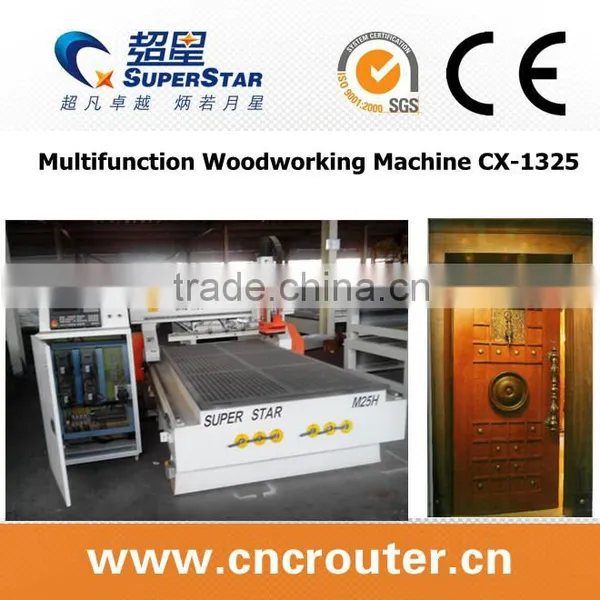

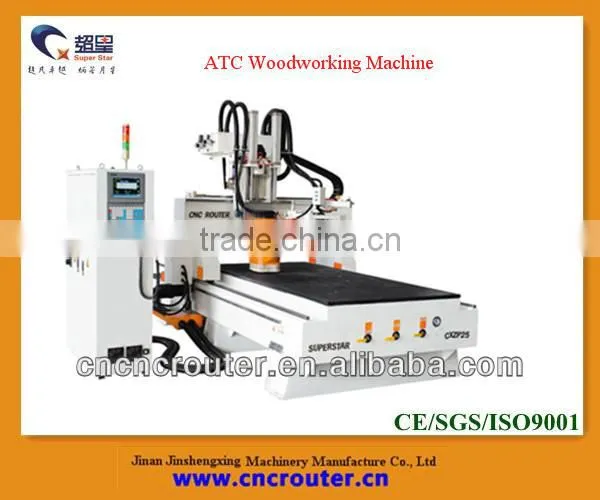

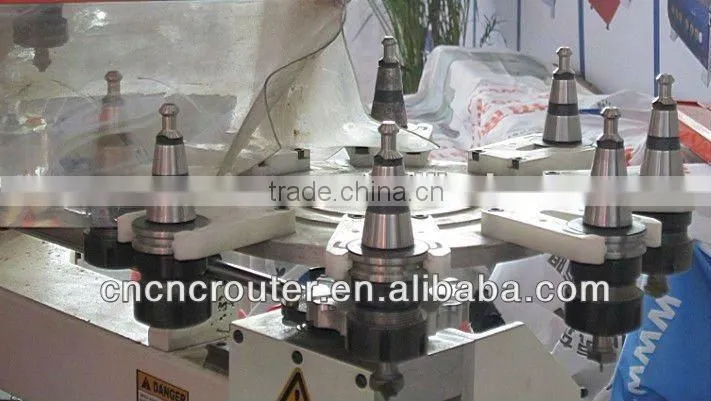

Machine Pictures:
Samples:
Certificates:
Delivery Time: 15 days after receiving the deposit for 3D CNC Wood Carving Router Furniture Equipment (ATC)
Payment Terms: T/T 30% in advance, then 70% after receiving the copy of the B/L of the shippment for 3D CNC Wood Carving Router Furniture Equipment (ATC)
Packaging: Strong smoke freed wooden box for 3D CNC Wood Carving Router Furniture Equipment (ATC)
