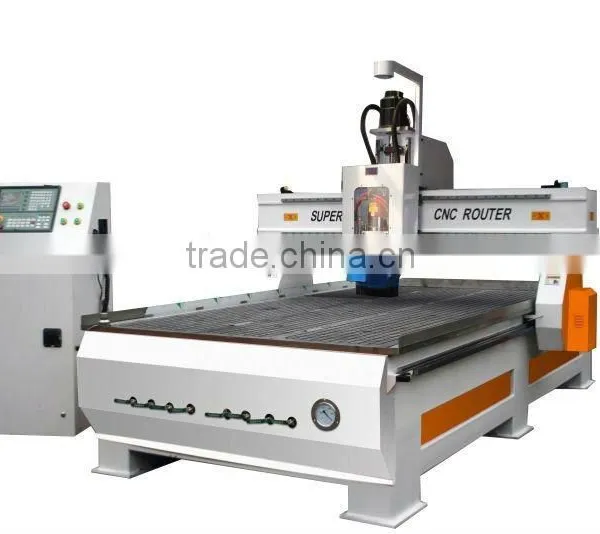

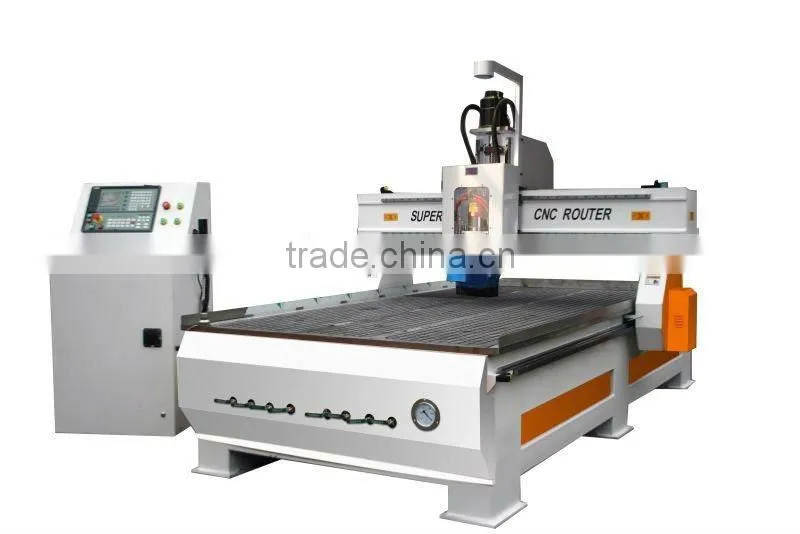

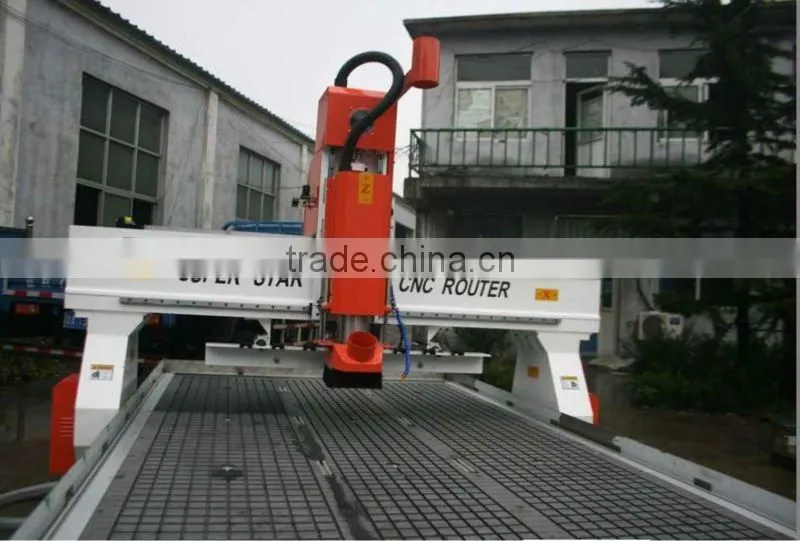

Help CenterATC CNC Router for Wood Furniture Cutting and Engraving With Only 8 Seconds Tool Changing Speed
Related Products
-
CX1325 Multi Functional CNC Wood Working Engraver for Wooddoor and Furniture(direct Manufacturer)US$ 40,000 - 55,000MOQ: 1 Set -
China M25H Auto Tool Changing CNC Processing Machine for Solid Wood FurnitureNegotiableMOQ: 1 Set
-
Cnc Router Machine With ATC CX1530 SUPER STAR BrandUS$ 5,000 - 10,000MOQ: 1 Set
-
Hot Selling M25H SUPER STAR Cnc Router Machine With ATCUS$ 5,000 - 10,000MOQ: 1 Set
-
Jinan SUPER STAR 2012 New Cnc Router Machine for Woodworking- CXM25 Woodworking EngraverUS$ 1 - 20,000MOQ: 1 Set
Specifications
ATC CNC Router:1.Taiwan Delta servo motor
2.Auto oiling system
3.LNC control system
4.HSD 6KW air cooling spindle
ATC CNC Router :
Applicable industry:
Stereo Wave Plate Processing, cabinet door, artistic wooden door, paint-free door, folding screen, artistic windows, furniture carving
Features:
1. Whole steel structure, imported square orbit, ball screw for Z Axis, gear-wheel for X, Y axis
2. Wentai software and type3 software
3. 4.5 kw imported water cooling spindle
4. U disk DSP control system
5. Vacuum table, no oil vacuum pump and dust collector system with 6 zones separately control, dust cover, 10 cutters
Technical Parameter:
No. |
Description |
Parameter |
1 |
X,Y working area |
1300*2500mm |
2 |
Z working area |
200mm |
3 |
Working Accuracy |
0.05mm |
4 |
Repositioning Accuracy |
0.05mm |
5 |
Frame Structure |
Welding Steel structure |
6 |
Table type |
Vacuum Table |
7 |
Max traveling speed |
50000mm/min |
8 |
Max working speed |
25000mm/min |
9 |
Interface |
COM32 |
10 |
Command |
G code file, *.U00, *.plt,*.mmg,*.nc |
11 |
Surroundings for software |
Windows 98/2000/XP |
12 |
Working voltage |
3PH AC380V/50HZ |
13 |
Spindle rotating speed |
0-24000rpm/min |
14 |
Drive Motor |
Taiwan Delta servo motor |
15 |
Carving diameter |
3.175/4/12.7mm |
16 |
Operation system |
Taiwan Ncstudio control system |
17 |
Gross weight |
1800kg |
18 |
Packing Size |
330*230*190cm |
