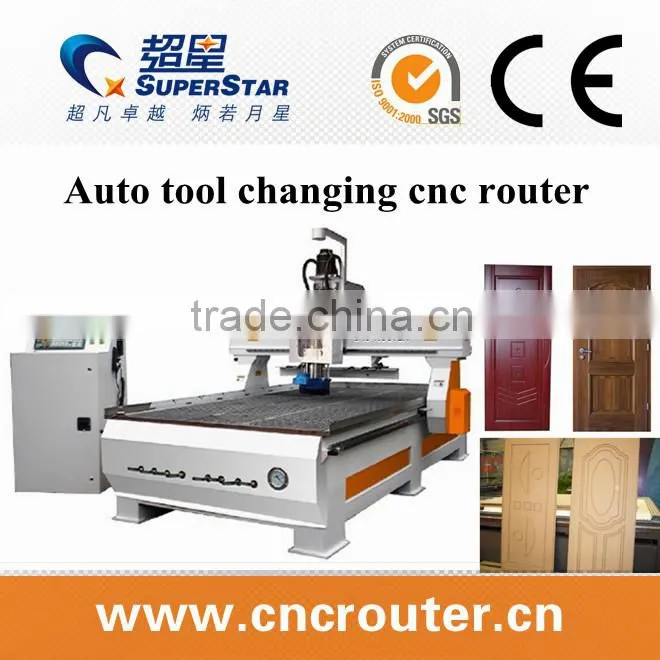

Feature:
1. Adopt linear-square orbit, whole machine is welded with seamless steel structure, can bear heavy loading.
2. Ball screw for z axis and gear-wheel for x and y axis
3. TAIWAN LNC control system. Intelligent anti-transgress-process protection system. The function can prevent from crashing when the design zone is
beyond the process zone.
4. Vacuum table and dust collector system with 6 zones separately control, auto tool changing system.
No oil pump and dust cover.
5. China domestic made 8kw water cooling spindle(optional:8kw HSD Italy air cooling spindle).
6. Auto oiling,8 tools changer, imported servo motors and inverters, 12 cutters and four collects.
Parameter:
Model |
M25H |
Working size |
1300*2500*200mm |
Body structure |
Steel structure |
Working table |
Vacuum table |
Working accuracy |
±0.05mm |
Repositioning accuracy |
±0.05mm |
Traveling speed |
60m/min |
Working speed |
30m/min |
Spindle |
5.5 KW water cooling and ATC spindle |
Spindle speed |
0-24000rpm |
Control system |
NCstudio |
Drive and motor |
Yaskawa Servo |
Transmission mode |
Taiwan square guide rail for XYZ axis, gear wheel for XY axis, ball screw for Z axis |
Working voltage |
AC380V/50HZ |
Max. power consumption |
7.5KW |
Command language |
G-code,*u00,*mmg,*plt |
Software |
Type3 or Ucancam V9 |
Cutters |
10 pieces with diameter of 6 and 12.7 |
Collets |
2 pieces |
Dust collector |
Yes |
Oiling system |
manually oiling |
Machine weight |
1850kg |
Packaging Measure |
370cm*210cm*185cm |
Product features:
1. vacuum table, dust collector, Servo motor
2.steel seamless welded stricture no deformation.Imported linear square guide rail ,high precision and wear resistance, smooth operation.
3.ATC in only ten seconds knife time,high production efficiency.
4.Advanced file pre-processing function, good compatibility Type3/Artcam/Mastercam/Caxa
Applicable industry:
Woodworking industry:stereo wave board processing,cupboard door,craft wood door,wenqi door,screen,process window home furniture product milling form sculpture.Mainly for the production of cupboard door,real wooed,the furniture and so no,also can be used in the production of MDF cutting.

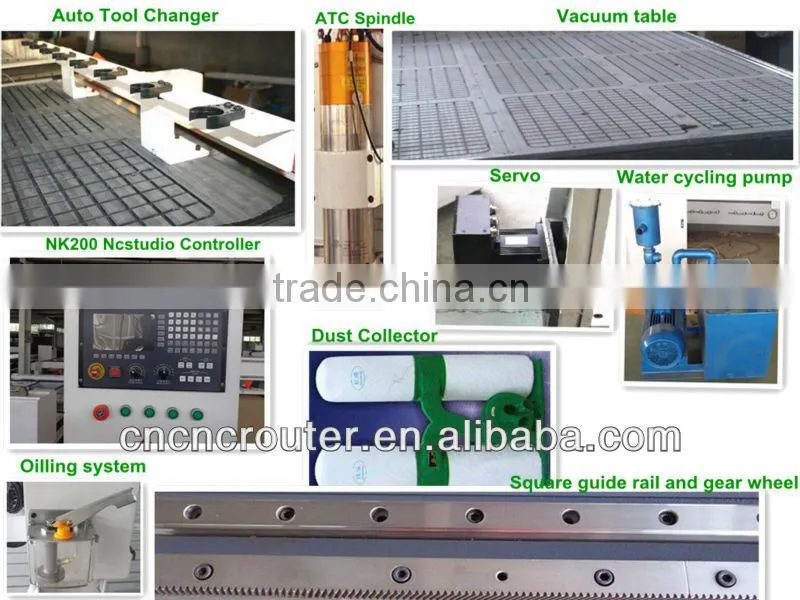

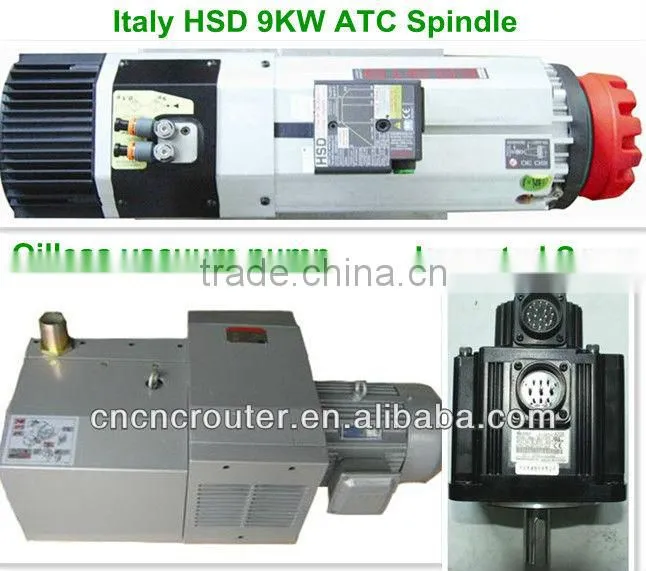

Machine parts and samples:

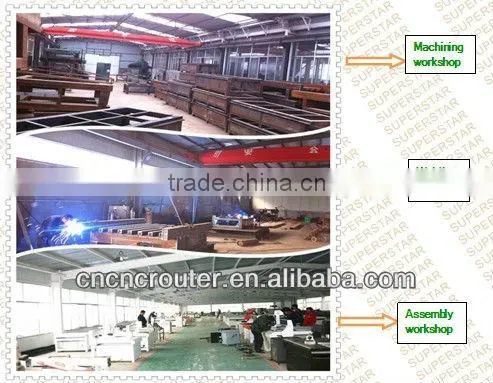

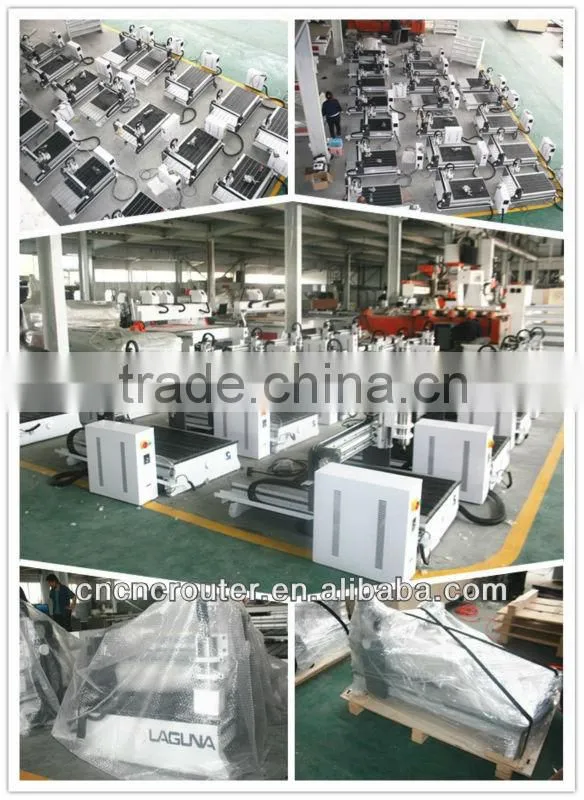

Our processing:
FAQ :
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then
let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and english manual with the machine.If you still have some
doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should
i do?
We will supply free parts in machine warranty period if machine have some
problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
Q4: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country port
if you tell detail information about your country port.
Our advantages:
1 Quality of machine is good.We use many famous brand of cnc router parts such as
Italian HSD spindle,Syntec control system ,TBI linear rails,Yaskawa motors and
drivers,Panasonic motors and drivers.
2 We can give best service. As salesman in our company, we had been service
service engineer of cnc router for more than 9years, so we can fix all the problems
you met.So when you tell us your problem, we will give you solutions in 20 minutes.
